Two 2”x 4” Mounting Boards
3” (7.6 cm) x 3 1/2” (8.9 cm)
Note: If unit is installed deeper than 24” (61.0 cm), then shim
behind the mounting boards by the difference.
Bottom of anti-tip board is 3–7/8” (9.8 cm) below opening height.
Note: Top of unit must be placed firmly under anti-tip board.

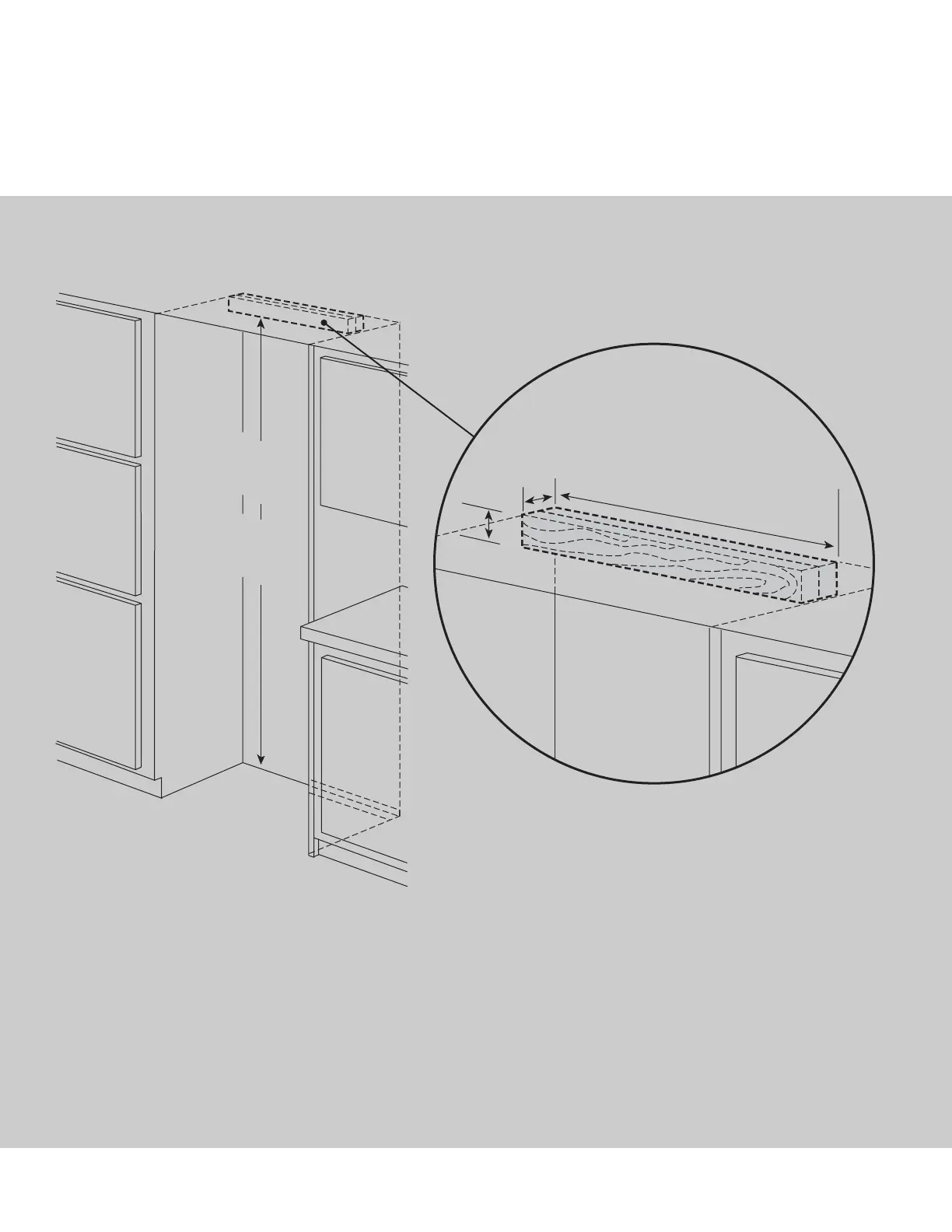

Anti-Tip Location
79–3/8”
(201.6 cm) min
to bottom of
anti-tip board
80–1/2”
(204.6 cm) max
to bottom of
anti-tip board
23”
(58.4 cm)
3–1/2”
(8.9 cm)
3”
(7.
6 cm)
