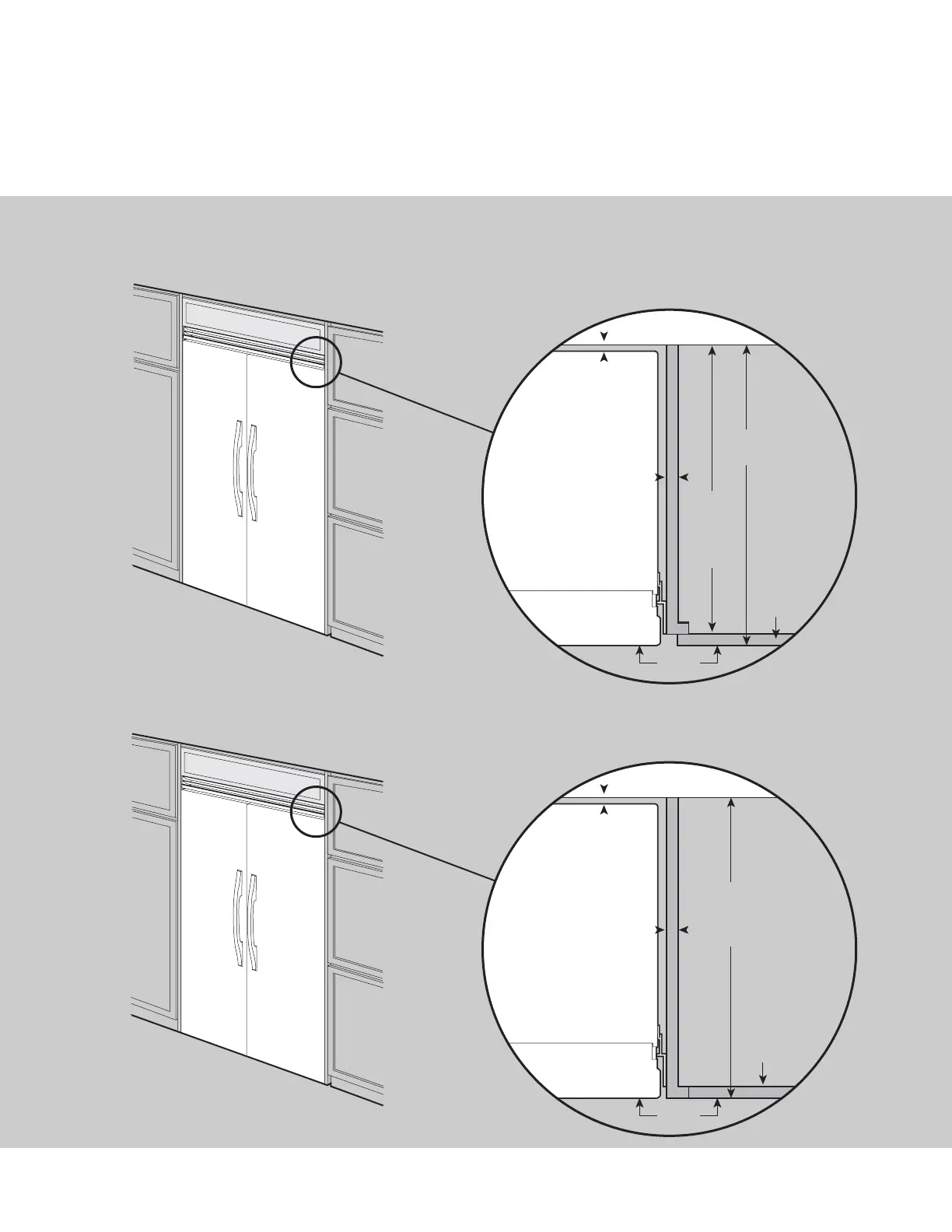

Top View
Overlapping cabinet doors
Top View
Flush mount cabinet doors
Door
24”
(61.0 cm)
Standard
Cabinet
Depth
24-3/4”
(62.9 cm)
Wall
3/4”
(1.9 cm)
Full End
Panel
1”
(2.5 cm)
If standard
25” (63.5 cm)
standard
cabinet depth
is used
Flush
Cabinet
Door
Door
Wall
3/4”
(1.9 cm)
Full End
Panel
1”
(2.5 cm)
If standard
25” (63.5 cm)
standard
cabinet depth
is used
Flush
25”
(63.5 cm)
Cabinet
Depth
Cabinet
Door
Cabinet Information
(Designer)
39
Designer models fit flush in standard 24” (61.0 cm) deep cabinet openings with no protrusion into the
room except 2”(5.1 cm) curved handle depth.
