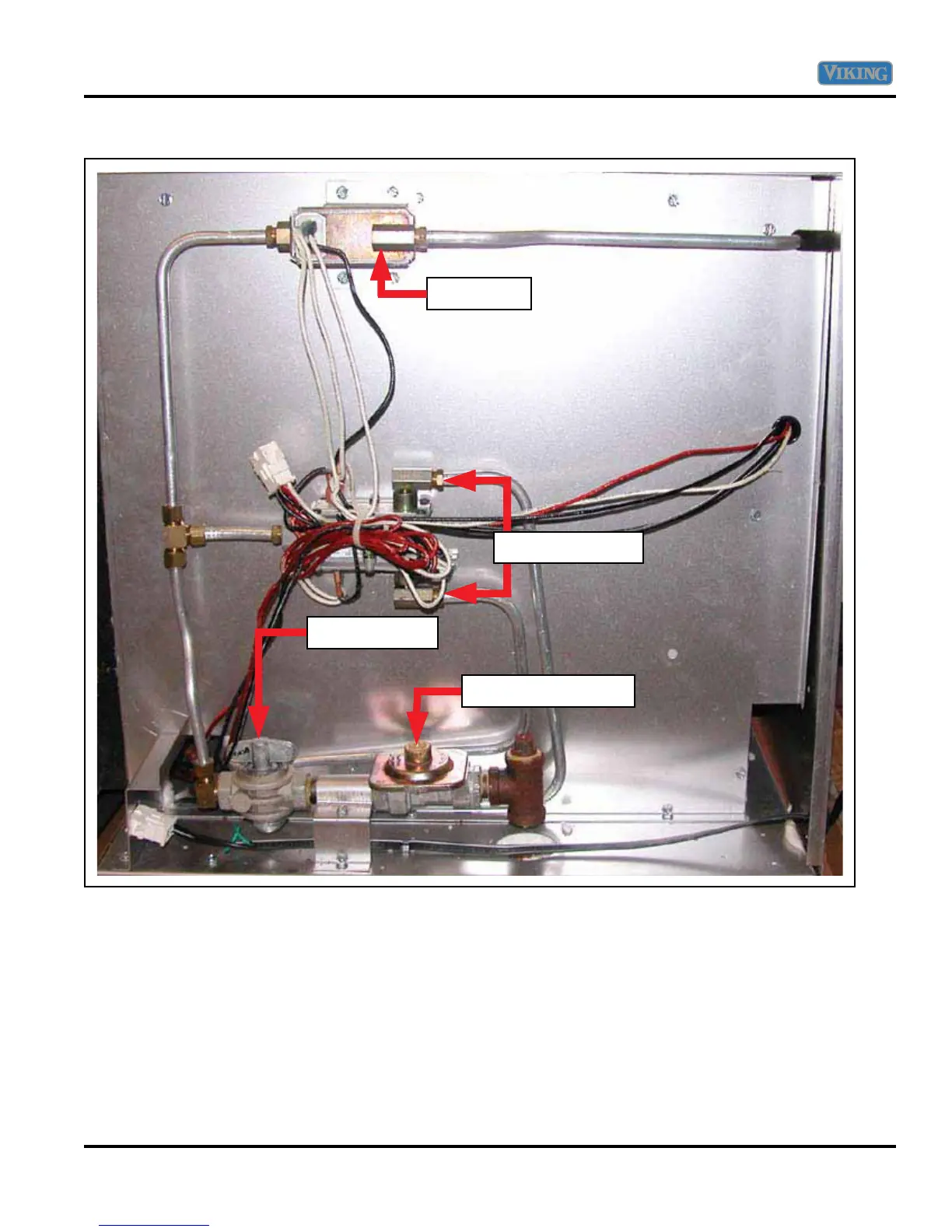

Parts Location – Side Oven
* Note: The voltage to the bake and broil valve is 3.2 – 3.6. Using voltage above this range can damage
the valve.
**Note: It is important that the shut-off valve be in the on position.
Resistance 1.2Ω (DBW – BK),
1.2W – BK*
Resistance 1.2Ω (DBW – BK),
1.2W – BK*
Broil Valve
Resistance 1.2Ω (W – BK)*
Dual Bake Valve
Pressure Regulator
Shut-off Valve
Service Diagnostics and Procedures
