Viking VICU206 - Built-In Error Codes (continued)

© 2009 Viking Preferred Service
13

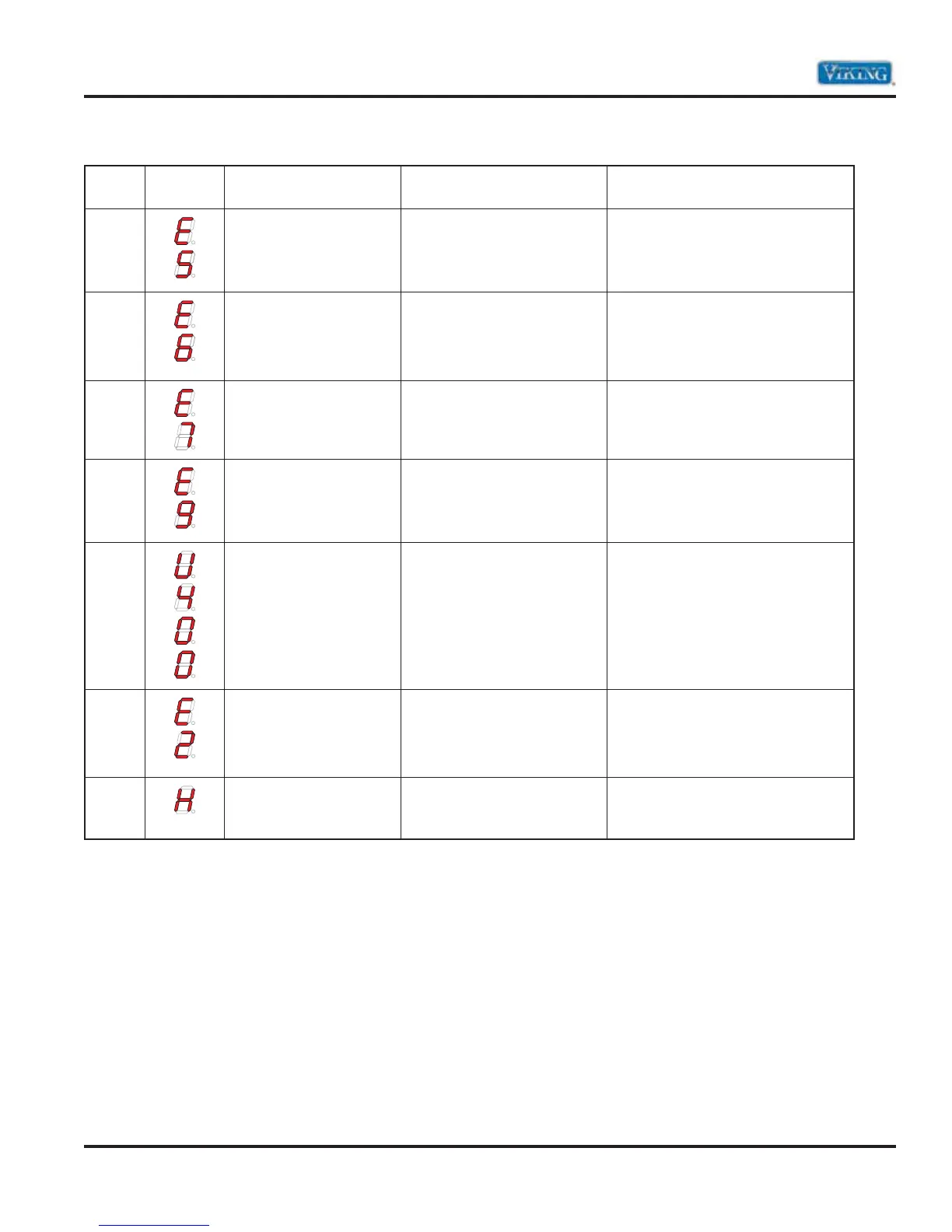

Diagnostics
Built-In Error Codes (continued)
LED
Code
Interface
Display
Failure Possible Reason Action
6 Error on filter board
EEPROM data wrong
Permanent low voltage
Error on electronic device
Lost data or EEPRPM
Check voltage–if proper and error
persists replace filter board
Replace filter board
Replace filter board
7
Voltage supply
Cable
Filter board
Power board
Missing L2
Loose cable
Defective board
Defective board
Verify L2
Repair replace cable as needed
Replace filter board
Replace power board
8
Error code received
which cannot be
assigned
Component failure
Communication error
Cycle power–if error continues
replace cable–if error continues
replace filter board
Replace power board
9
Temperature sensor
defective
Mechanical failure
Electrical failure
Mechanical crack of sensor
Fading resistance
Power board
Change coil–if issue continues
replace power board
10
Wrong terminal
connected
Secondary voltage of the
power supply above 400 Volts
Check the power supply
–
Temperature sensor
shows overheat of
induction coil or
power board
Cooking zone overheated
Heat opened thermal
Induction generator
temperature too high
Allow zone to cool down
Allow to cool down
Error display is canceled after cool-
ing down
–
Display of the residual
heat
No failure
Temperature over 60˚C in a
cooking zone
Cooking zone needs to cool down
UÊÊÊÊ<iÊ½ÃÊy>ÃÊÊ>`ÊvvÊvÀÊLÌÊ«>Ê`iÌiVÌÊ<iÊÃÜÌVi`ʺ" »®Ê>`ÊÜÌÊÀiÃ`Õ>Êi>ÌÊ<iÊ
switched “OFF”).
UÊÊ Ê7iÊ>ÊV}ÊâiÊÃÊÌÕÀi`ʺ"»Ê>`ÊÌiÀiÊÃÊÀiÃ`Õ>Êi>ÌÊ«ÀiÃiÌ]ÊÌiÊâiÊ`V>ÌÀÊÊÜÊy>ÃÊ
on and off until the zone has cooled.
UÊ *>Ê`iÌiVÌÊ>ÃÊÌiÊ}iÀÊ«ÀÀÌÞÊÛiÀÊÀiÃ`Õ>Êi>Ì]Ê>ÃÊÃÜÊÜiÊÃÌÊÃÊÃiiVÌi`°Ê
UÊ /iÊV}ÊâiÊ`V>ÌÀÊ½ÃÊ>ÀiÊÊÃÌ>ÌV>ÞÊ ÌÊy>Ã}®Ê`ÕÀ}ÊV}Ê«iÀ>Ì°
UÊ <iÊ½ÃÊy>ÃÊÊ>`ÊvvÊÀ>«`ÞÊÊV>ÃiÊvÊ>ÊÛiÀi>ÌÊV`ÌÊÊÌiÊ`Û`Õ>ÊV°ÊÊ
UÊ ½ÃÊy>ÃÊÊÃiµÕiViÃÊÊV>ÃiÊvÊ>ÊiÀÀÀÊÜÌÊÌiÊ}iÃÌÊ«ÀÀÌÞ°Ê
