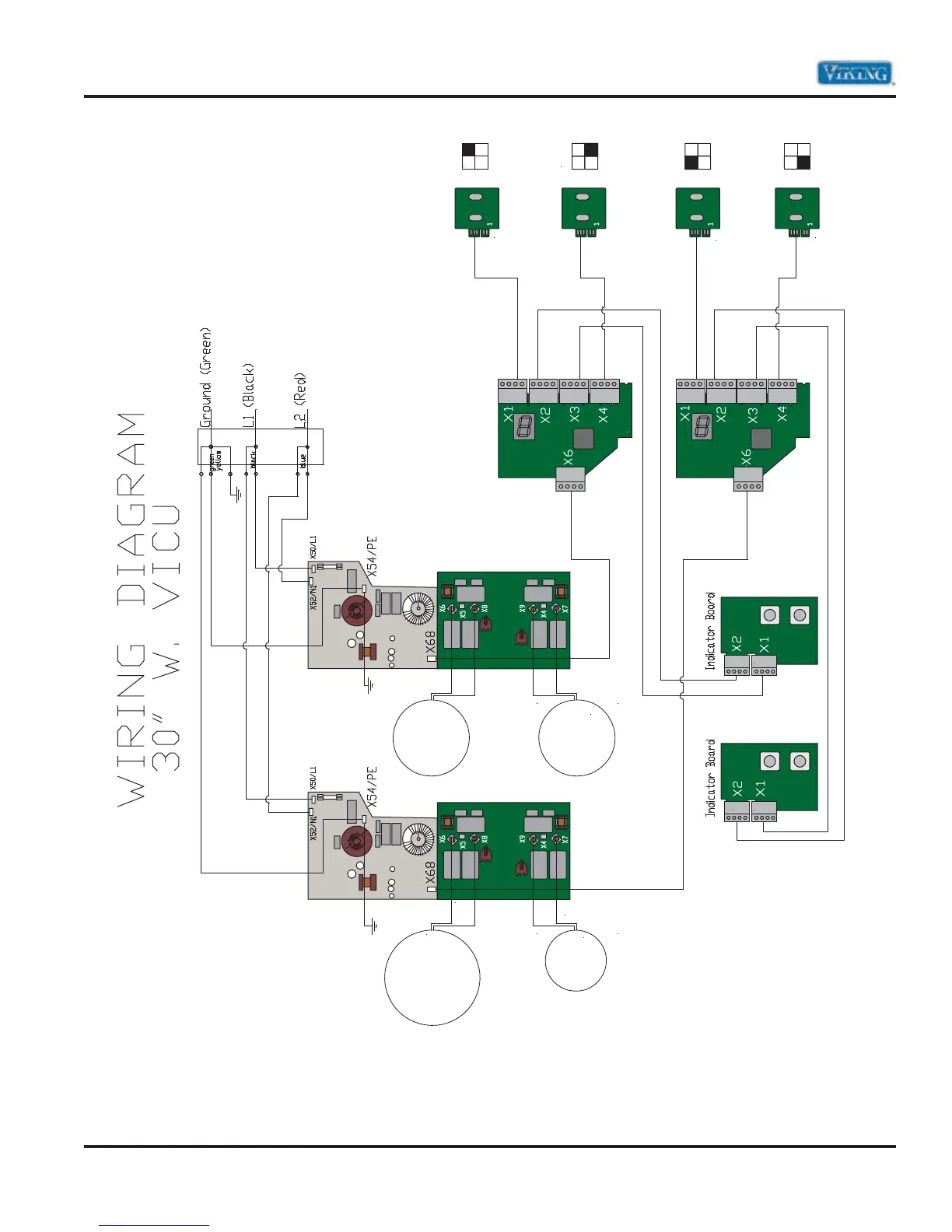

Viking VICU206 - WIRING DIAGRAM 30″ W. VICU

© 2009 Viking Preferred Service
34
Wiring and Schematics
RF RR LR LF
Interface
003154-044*
RR-RF
Interface
003154-43*
LR-LF
Control Switch Control Switch Control Switch
*Caution: Do not swap interface boards/induction adapters – you will get an Interface error (Er 31).
180 mm 180 mm
145 mm
210 mm
Control Switch
