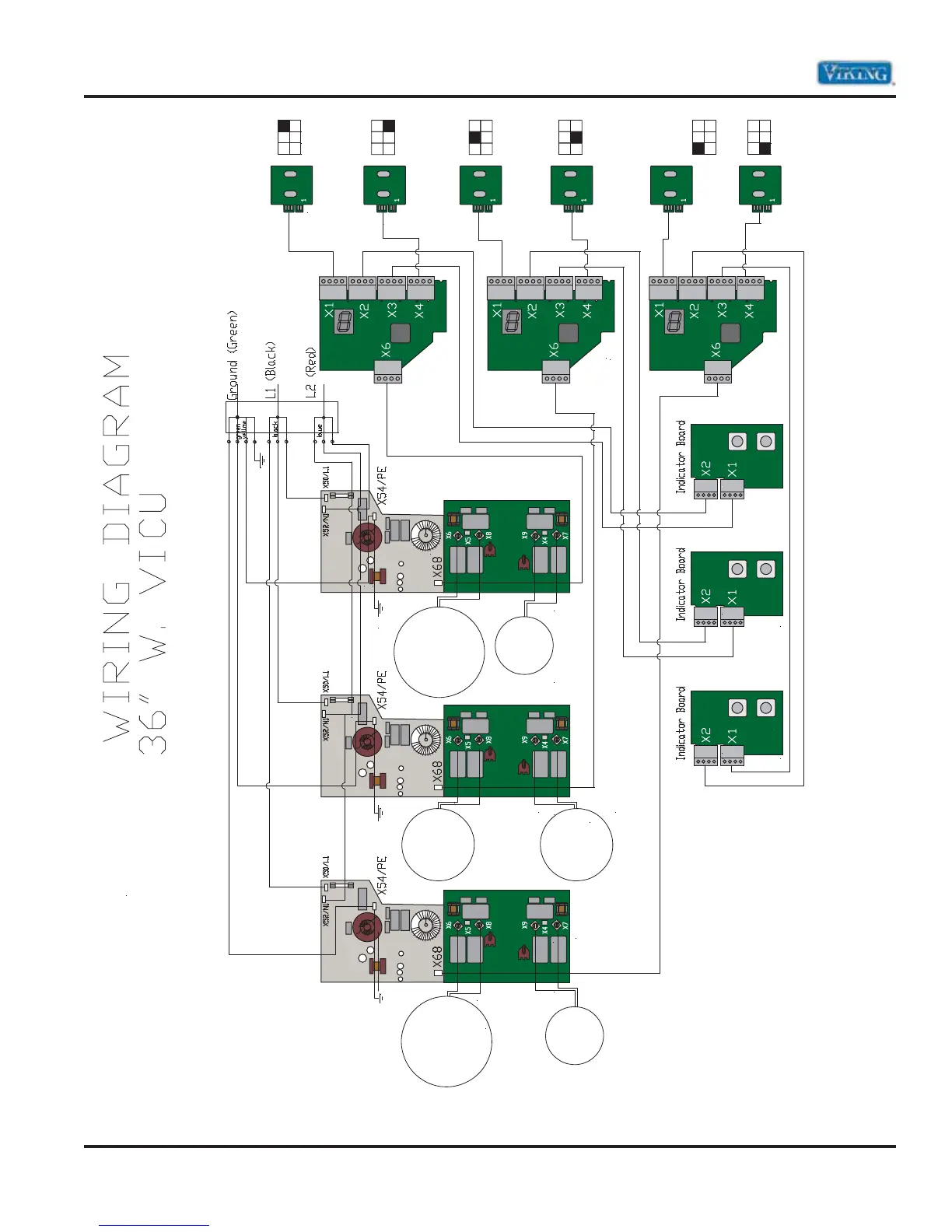

Viking VICU206 - WIRING DIAGRAM 36″ W. VICU

© 2009 Viking Preferred Service
35
Wiring and Schematics
RR RF CR CF LR LF
145 mm
210 mm
145 mm
210 mm
180 mm 180 mm
Interface
003154-045*
RR-RF
Interface
003154-044*
CR-CF
Interface
003154-043*
LF-LR
Control Switch Control Switch Control Switch Control Switch Control Switch Control Switch
*Caution: Do not swap interface boards/induction adapters – you will get an Interface error (Er 31).
