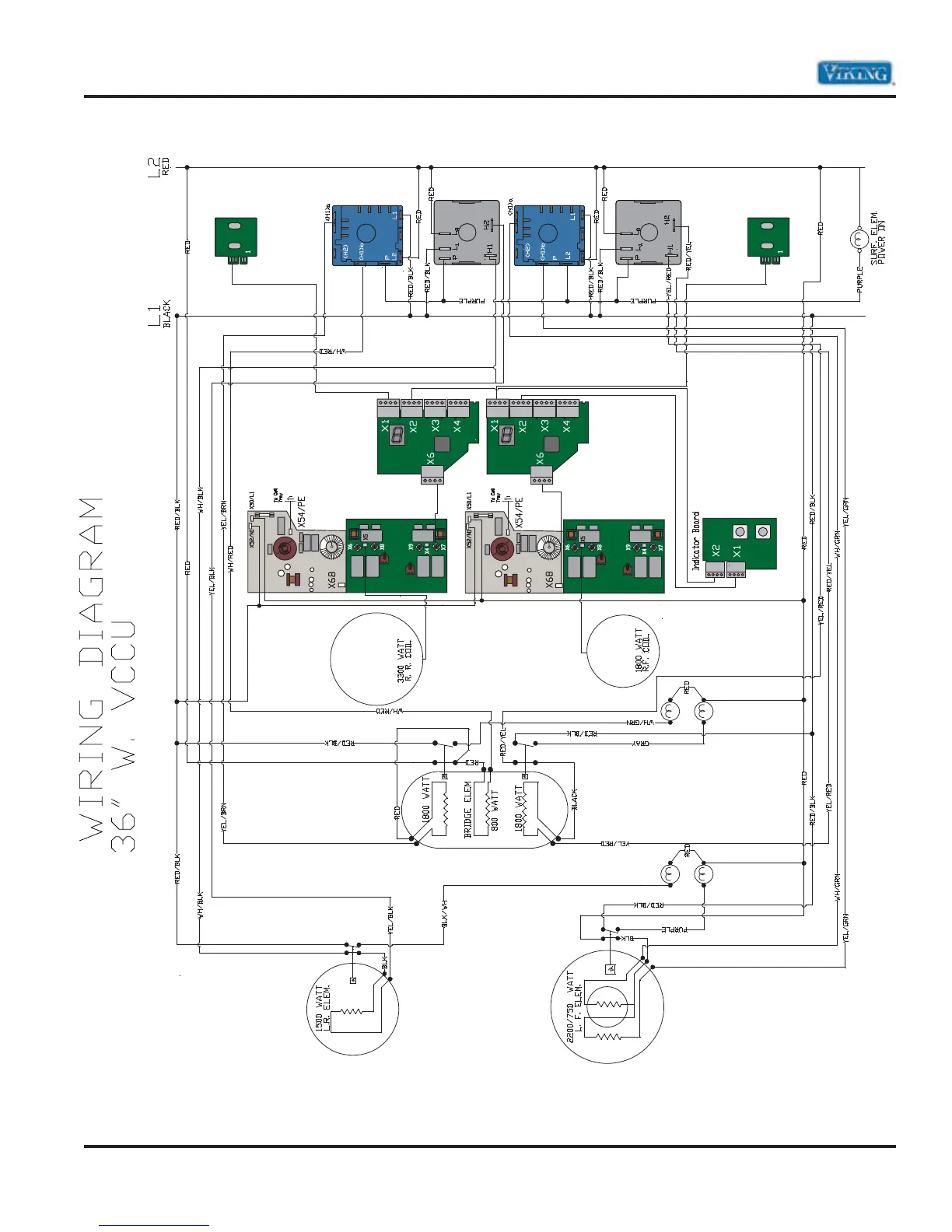

Viking VICU206 - WIRING DIAGRAM 36″ W. VCCU

© 2009 Viking Preferred Service
33
Wiring and Schematics
Interface
003154-041*
RF
Interface
003154-042*
RR
Control Switch
Control Switch RF
*Caution do not swap Interface Boards/Induction Adapters or you will get an Interface error (Er 31).
RR
RF
