Service Diagnostics and Procedures–Disassembly
All Induction Cooktop (continued)

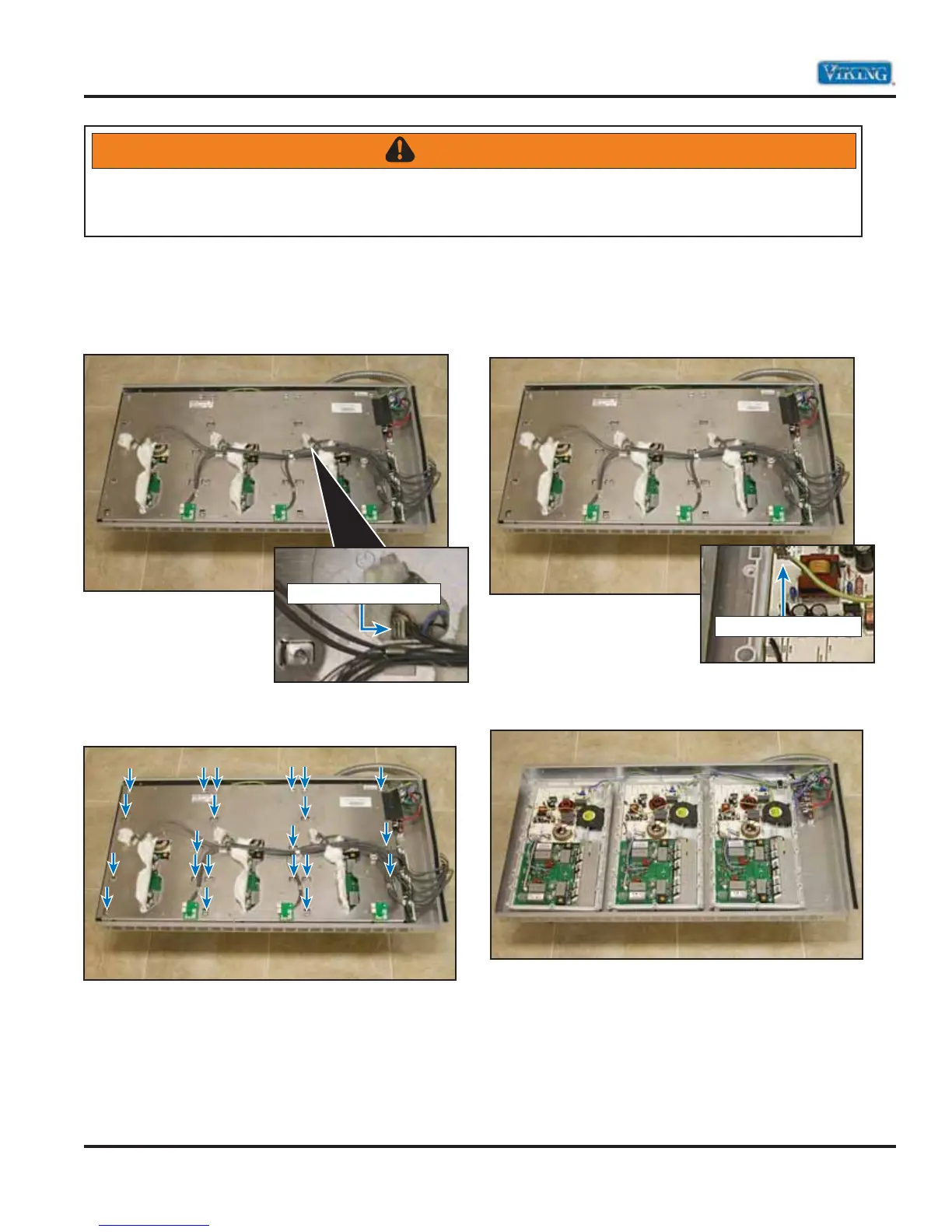

8. Disconnect interface board connections at filter
boards.
9. Remove 17 screws and 4 hidden screws
securing filter/power board cover.
10. From under side of filter/power board cover,
disconnect three ground connections.
11. Remove filter/power board cover. All power and
filter boards are now accessible.
13. Reverse procedure for installation.
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless
test procedures require power to be connected. Discharge capacitor through a resistor before attempting
to service. Ensure all ground wires are connected before certifying unit as repaired and/or operational.
Ground Connection
Interface Connection
To Next Page
