Description of RAD menu parameters:
Display
Message
Description Display message after activating the remote control
1 CH Used to save the remote control button corresponding to the input AP/CH 1***
2 CH
Used to save the remote control button corresponding to the input PED or
output 2CAN
2***
CTRL
Pressing the button on the remote control lets you compare and see where
the memory cell has been saved.
1*** or 2***
ERAS
Used to delete a remote control in the memory list or all the remote con-
trols in the memory.
After selecting the remote control from the list press OK and
the display will show OOOO to confirm deletion. To delete
all the remote controls select ALL between 200 and 001 and
press OK, the display will show 0000
N.B. The rst saved remote control congures the control panel to accept only remote controls with a rolling code or only remote controls
with a xed 12-bit code
If you need to delete all the remote controls, enter the RAD menu, select ALL (between number 001 and 200), press and hold the OK button for 5 at least
seconds, and the display will show the 4 dots conrming the operation.
It is advisable to ll in the nal table indicating the number of the memory cell (it is displayed while saving the remote control) in the user name, this enables
deleting a remote control should it get lost.

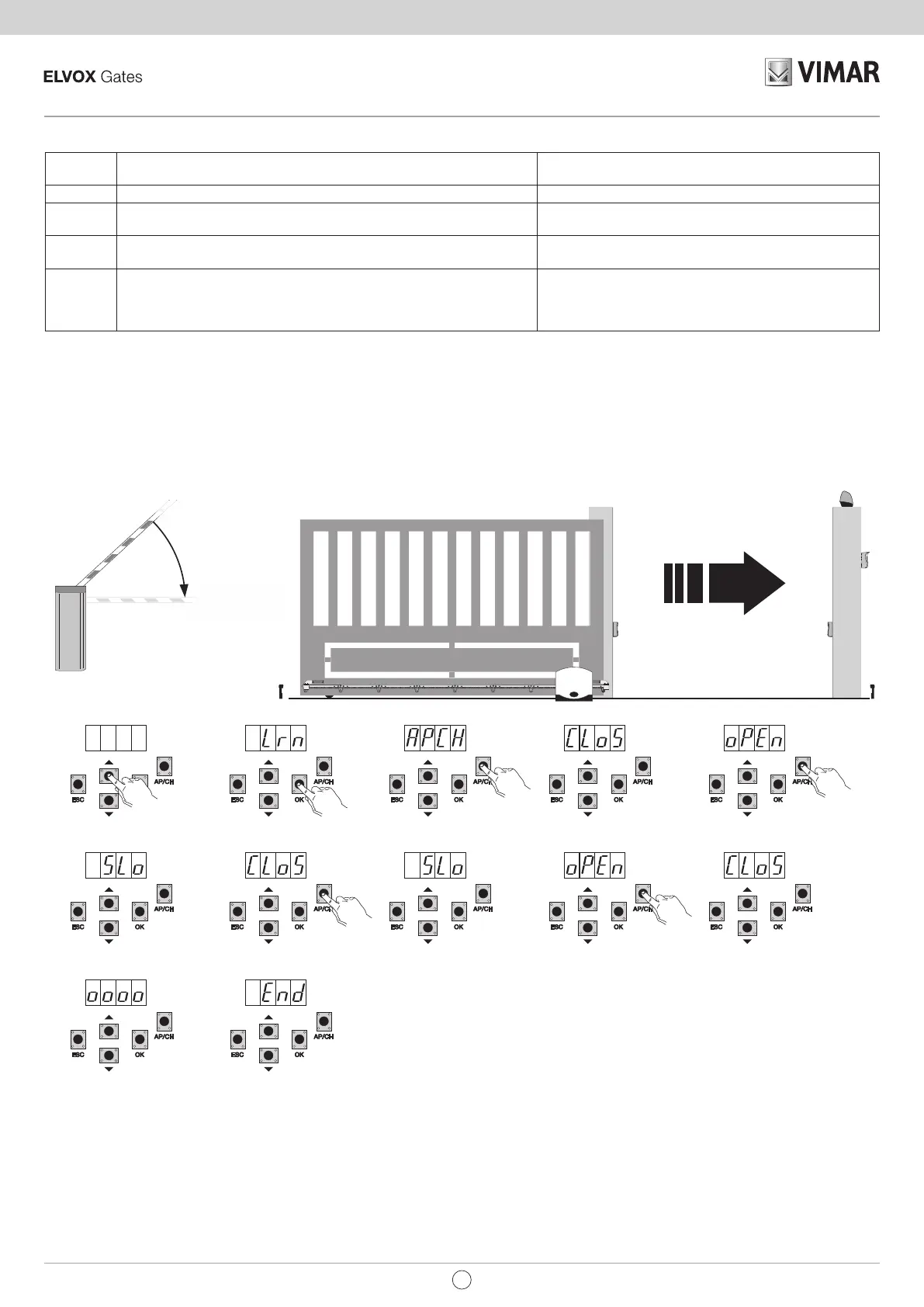

8.3 LRN: Learning travel with custom programming lets you dene the points for starting deceleration when both opening and
closing:
- starting with the gate/barrier not completely closed, press the UP button until the display reads LRN, confirm with the OK button to enter the programming
mode, the display will show APCH
- press and release the AP/CH button, the gate/barrier will close and the display will show CLOS
- on completely closing the gate/barrier will start opening and the display will show OPEN
- press and release the AP/CH button to determine the starting point of deceleration on opening and the display will show the message SLO
- the gate/barrier continues to slow down until it is fully opened and then automatically starts closing again, the display will show CLOS
- press and release the AP/CH button to determine the starting point of deceleration on closing and the display will show the message SLO
- the gate/barrier continues to slow down until completely closed
- the gate/barrier opens and the display shows OPEN (calibration of the pedestrian opening distance)
- press and release the AP/CH button to determine the pedestrian opening distance
- the gate/barrier closes completely and the display shows CLOS
x3
CHIUSURA
CLOSING
EN
