vimec S10 User Manual

17
b
a
a
b
7511001
FIG.3
FIG.4
- Use lifting equipment and slings to move the column
to the wall in a vertical position.
WARNING:
Use a spirit level to check that it is vertical (Fig. 2/a).

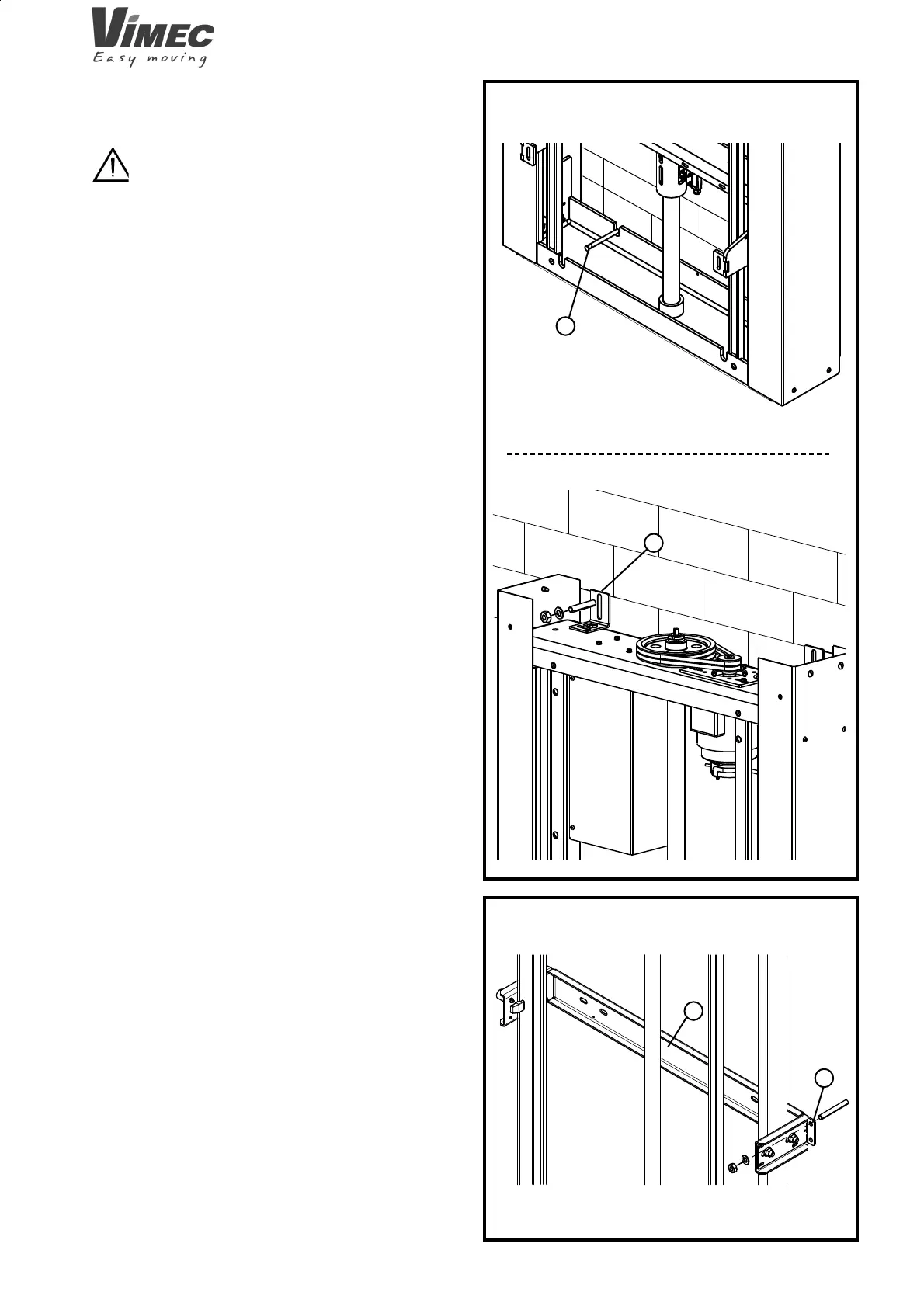

- Use plugs to fi x the column to the wall by the base
connection (Fig. 3/a) and then to the head connection
or vice versa (Fig. 3/b).
NOTE: Mark on the wall the positions of the holes to
be made before setting the column next to the wall,
thus avoiding dust contamination of the mechanical
organs.
- Using the L brackets supplied (Fig. 4/b) with adjustment
slots, fi x the remaining connections (Fig. 4/a).
7512001
