4.4 Mounting the platform

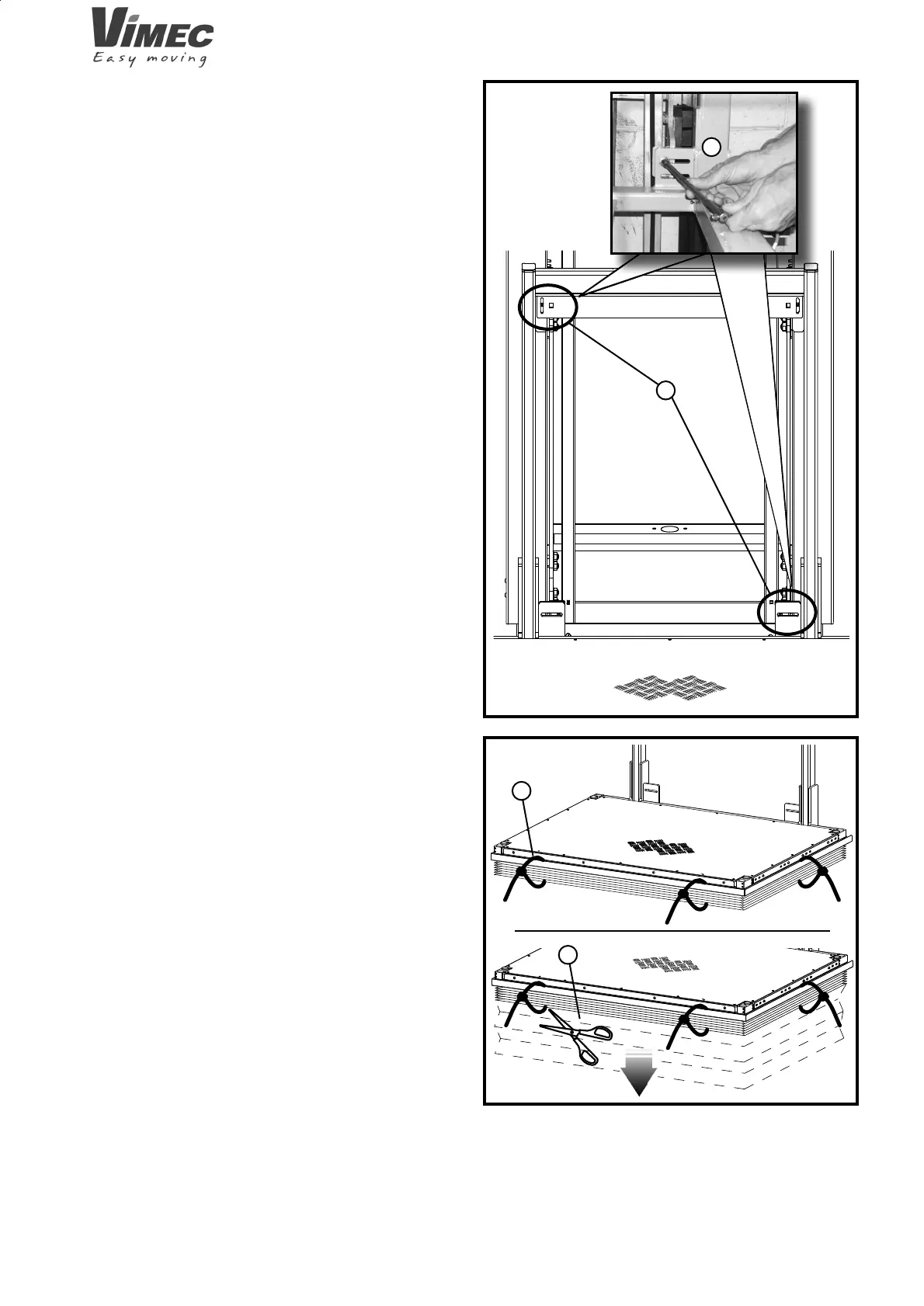

- Raise the platform and position it so that the slotted
plates coincide with those on the trolley (Fig. 24/a).
NOTE: Before fi xing the platform, close the bellows
(if present) with straps (Fig. 25/a).
This operation makes it easier to mount the platform with
bellows, without creating impediments.
- Screw the platform to the trolley using the screws
provided (Fig. 24/b).
- Free the bellows (if present) from the platform by cutting
the straps (Fig. 25/b) and lay it on the ground.
4.5 Mounting edge guards
