Move the platform to the fl oor using the on-board com-
mands.

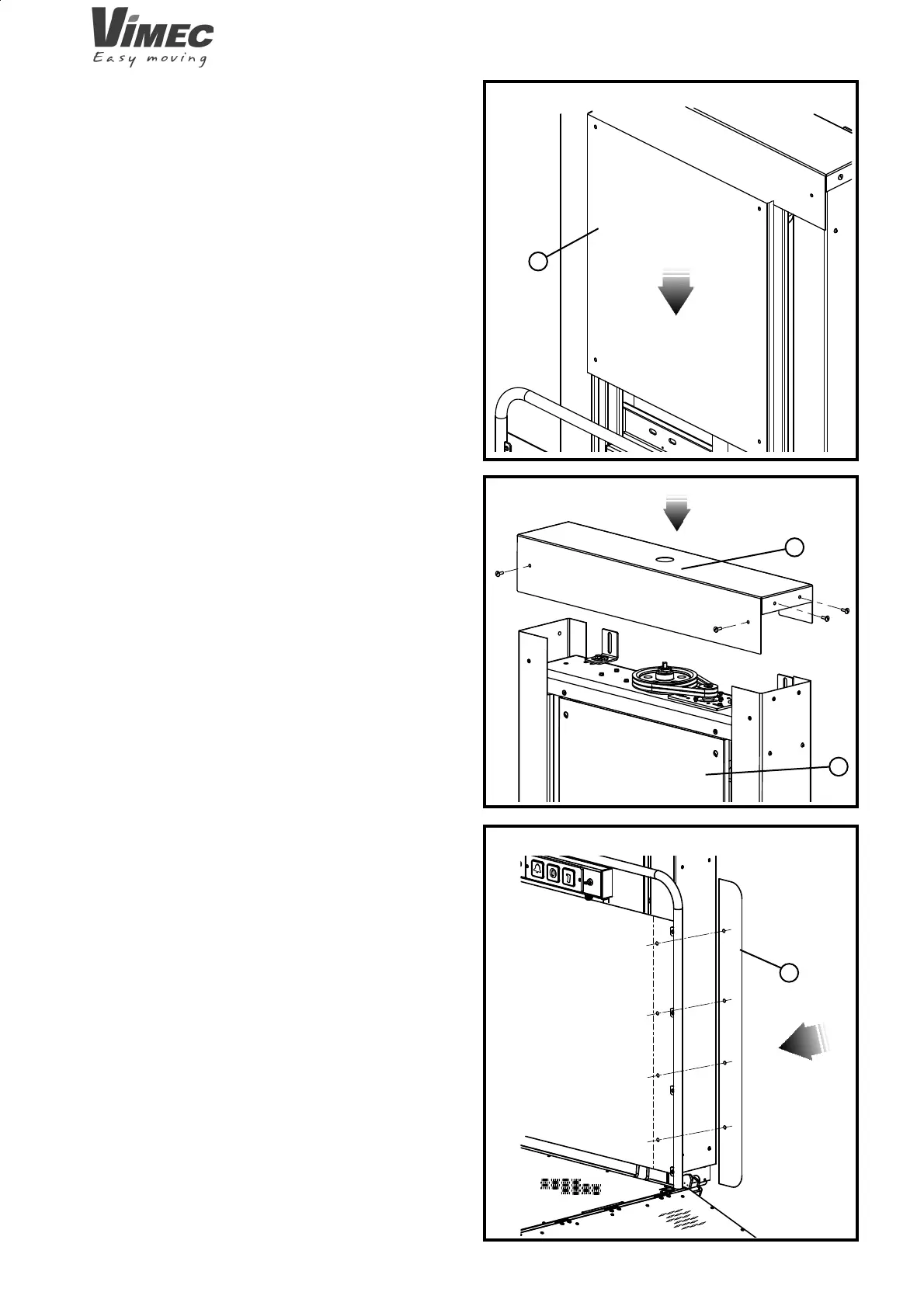

Insert the long casing (Fig. 34/a), previously dismantled,
between the platform and column, then fi x it to the “C”
profi les using the screws provided.
Then fi x the second casing (short) (Fig. 35/a).
Lastly fi x the upper casing (Fig. 35/b).
4.11 Mounting the slide cam
Move the cam to the holes on the side casing of the
column, then fi x it with the screws provided (Fig. 36/a).
