vimec S11 User Manual

21
a
a
a
a
7511020

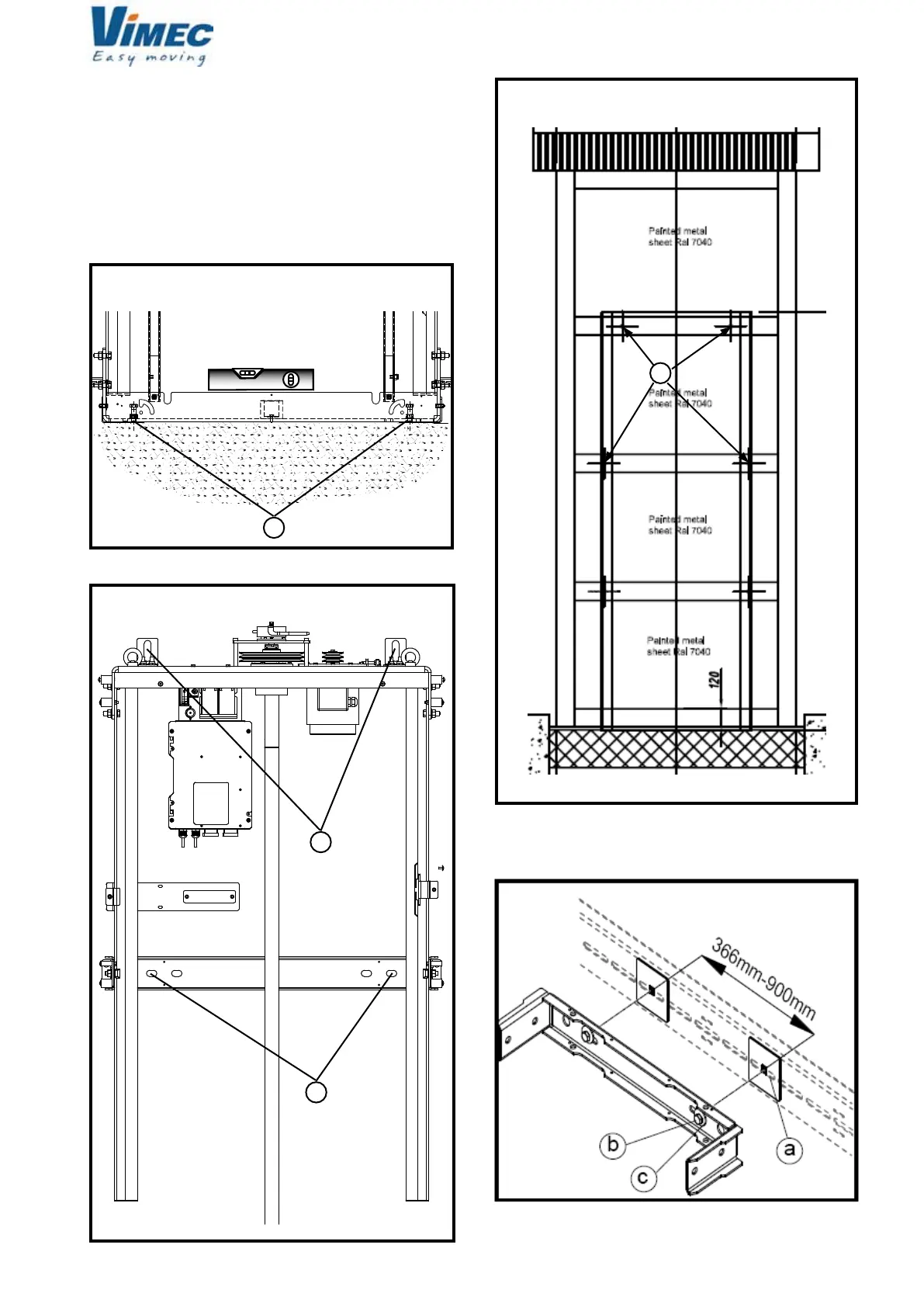

4.1/B Mounting the column in metal scaffold
Using the screws provided (Fig. 10/b), secure the
column to the crossbeams of the scaffold in the points
indicated in Fig.9/a and Fig.8/a.
Level the base adjusting the screws (Fig. 7/a) if ne-
cessary.
FIG.7
FIG.8
7512020
FIG.9
FIG.10
