4.2 Wall mounting of the column for machine disas-
sembled into 2 parts
Supply package:
- Upper column (Fig. 11).
- Lower column (Fig. 12).
- Supporting pipes for front casings.
- Cable through
- Set of casings (side, upper, rear and front)
Proceed with joining the lower column to the upper one.
- Secure the rails with the special plates to be bolted
(Fig. 13).

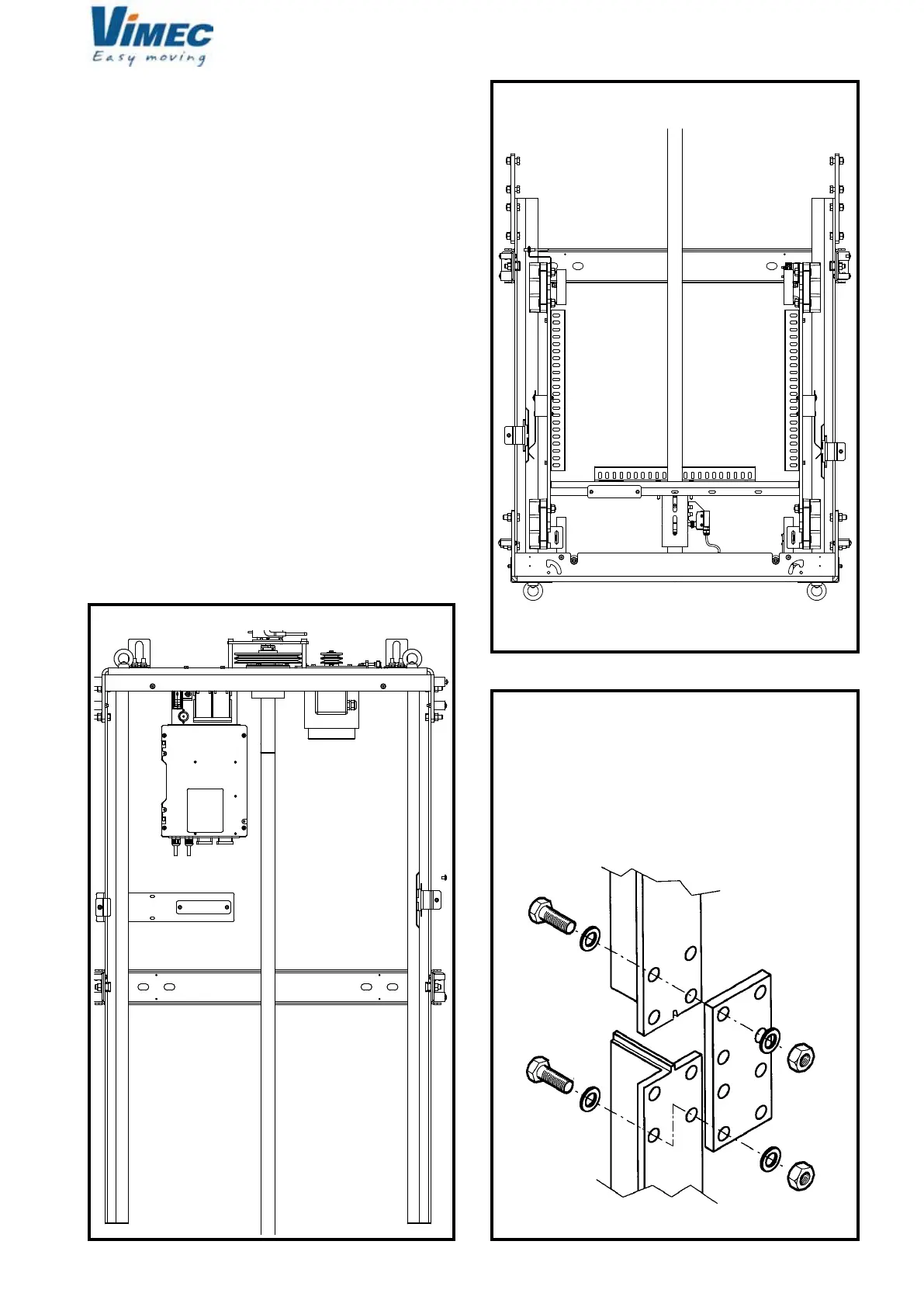

FIG.11
FIG.13
FIG.12
