vimec V65 B.R. Use And Maintenance

7602040

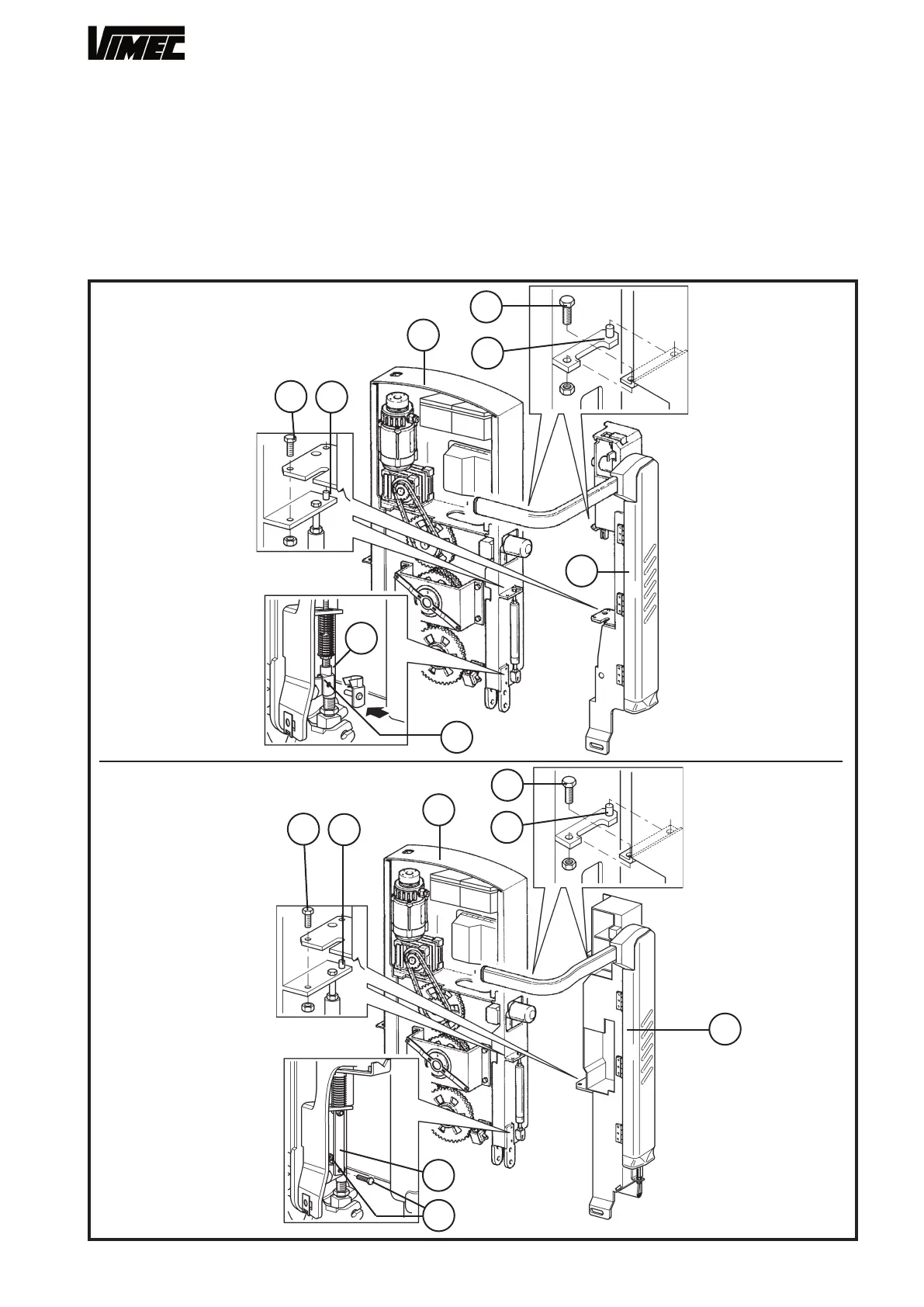

FIG.36
9) FITTING THE ARMS
Fit the arm supports (Fig. 36/b) on the lift frame
(Fig. 36/a), aligning the locator pins provided
(Fig. 36/ c).
Fix the arms with the screws supplied (Fig. 36/d).
Then connect the sheaths.
9.1) Independent Arms – Connected Arms
In the bottom of the bar, connect the wire (Fig. 36/e)
to the platform interlock system (Fig. 36/f).
9.2) Retractable Arms
In the bottom of the bar, connect the lever (Fig. 36/e)
with the self-locking screw and nut (Fig. 36/h).
28
d
c
d
c
a
e
f
b
d
c
a
d
c
b
g
h
