vimec V65 B.R. Use And Maintenance

7602040

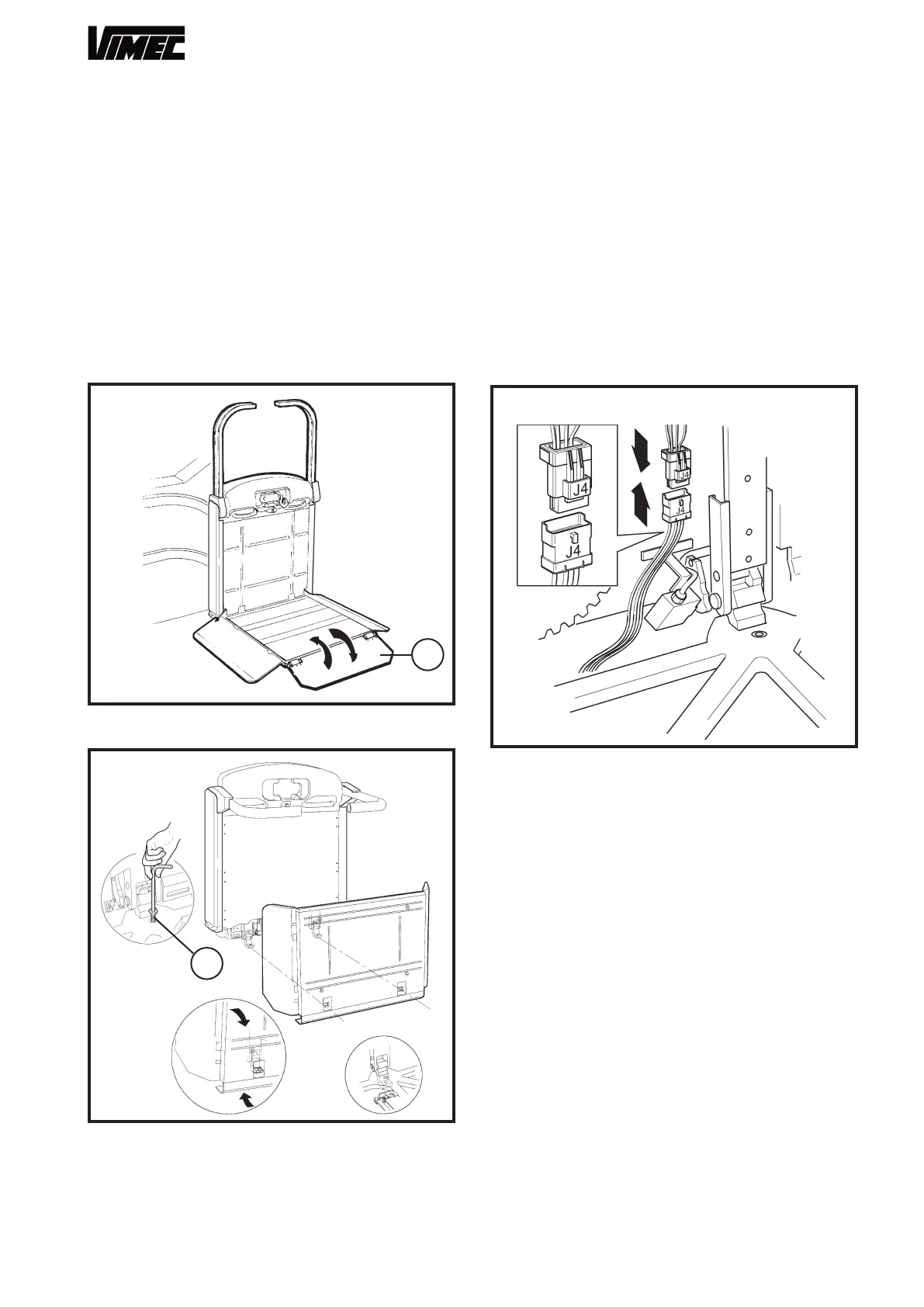

FIG.37
FIG.38
FIG.39
c) Fit the platform, holding it vertical and turning it
through 90° as shown (Fig. 38).
d) Fix the platform to the frame with the M8 flat-head
screws provided (Fig. 38/a)
e) Connect the connector j4 (Fig. 39).
10) FITTING THE PLATFORM WITH MOTOR-OPER-
ATED FRONT ACCESS LIFT FLAP (B.I. - B.C. - B.R.)
A platform with tip-down front flap is available on request
(Fig. 37/a).
This provides a mini-lift for accessing/leaving the stairlift
platform, at the bottom floor only.
10.1) Fitting the platform
a) Remove the platform cover plate by unscrewing the
screws provided.
b) Make sure that the two platform supports, held in
place by a wedge and a plastic band, are in the as-
sembly position (Fig. 40/a/b).
29
a
a
