vimec V65 B.R. Use And Maintenance

7602040
FIG.40
FIG.41

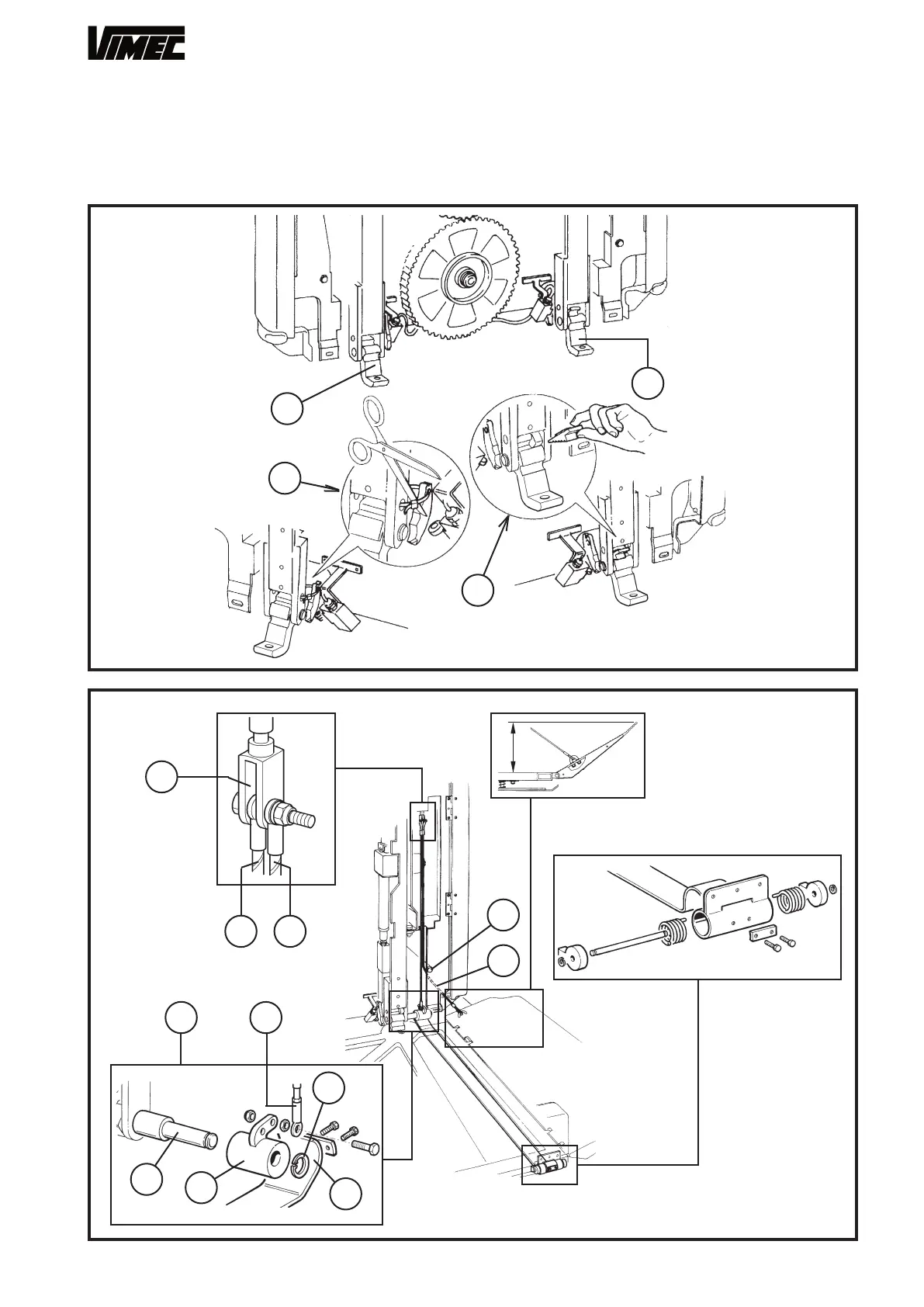

- Fit the cam (Fig. 41/f) with flap drive belt (Fig. 41/g)
onto the pin provided (Fig. 41/d) and fix it with a snap
ring (Fig. 41/a).
- Fix the eye-ring of the cable (Fig. 41/e) to the cam
(Fig. 41/f) using the screw, nut and lock-nut, leaving
enough play to allow the eye-ring to rotate.
- Connect the wire (Fig. 41/h) to the side flap with
the screws provided, passing it around the pin
(Fig. 41/ i).
30
c
a
b
d
125
i
e h
b
c e
a
f
d
g
h
