vimec V65 B.R. Use And Maintenance

7602040
17) FITTING THE FINAL LIMIT SWITCH CAMS
- Set the stairlift in the stop position (Fig. 56/a - 57/a)
and mark the position of the lift’s centre-line on the
rails (Fig. 56/b - 57/b).
- Move the lift.
- Fix the cam (Fig. 56/c - 57/c) on the rail 50 mm from
the lift’s centre-line marked earlier.
- Tighten all screws when done.

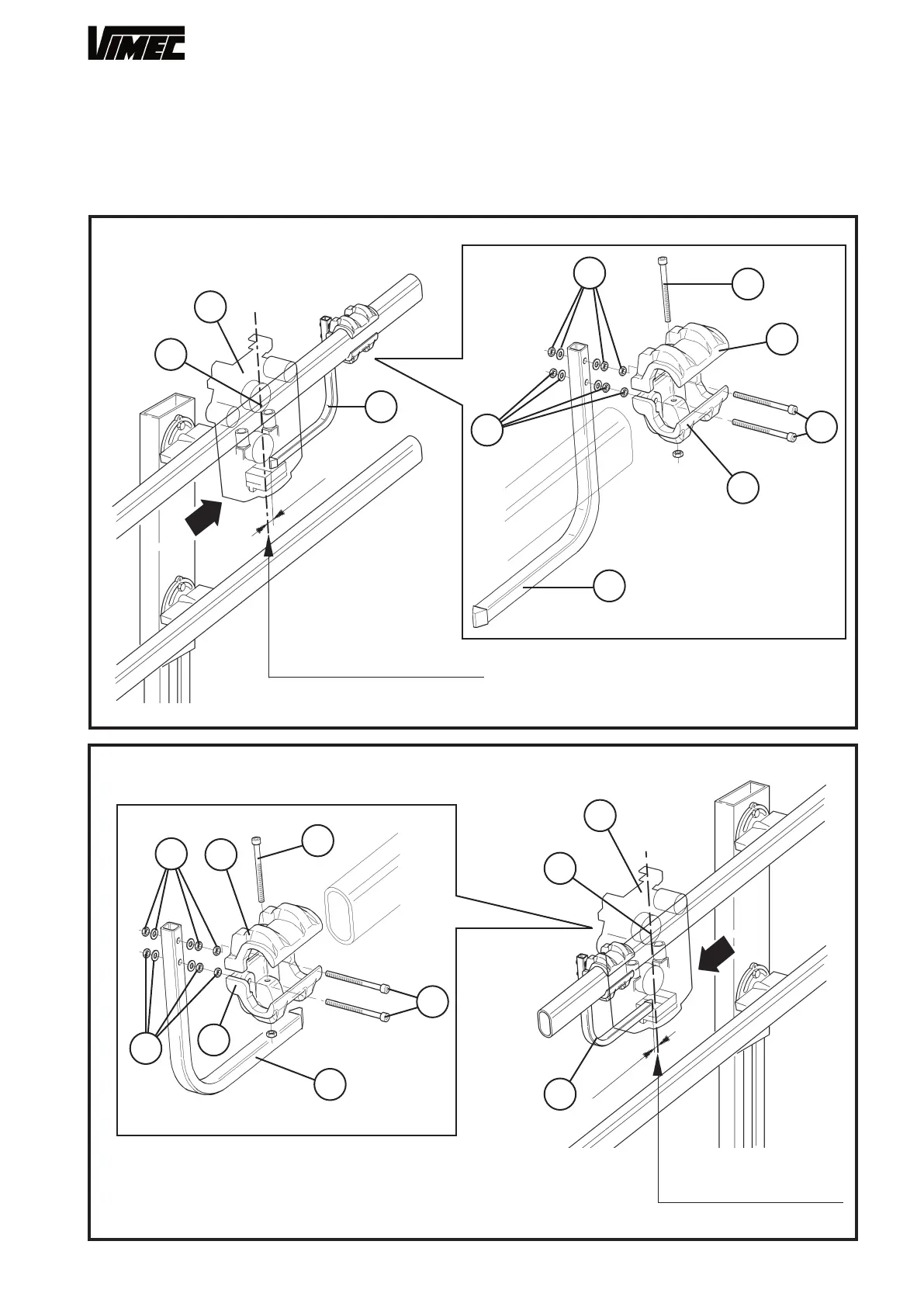

FIG. 56
Machine centre line axis
FIG. 57
Machine centre line axis
50 mm
50 mm
36
c
a
b
e
d
e
c
c
d
c
c
d
c
c
d
e
c
a
b
e
