- Checking rail installation
- Check that the rail is positioned in accordance with
the measurements stated in the installation drawing
(or system layout) supplied with the lift.
- Check that all the fixing screws which connect the
rail to its mounts or any expansion plugs used are
firm and tight.

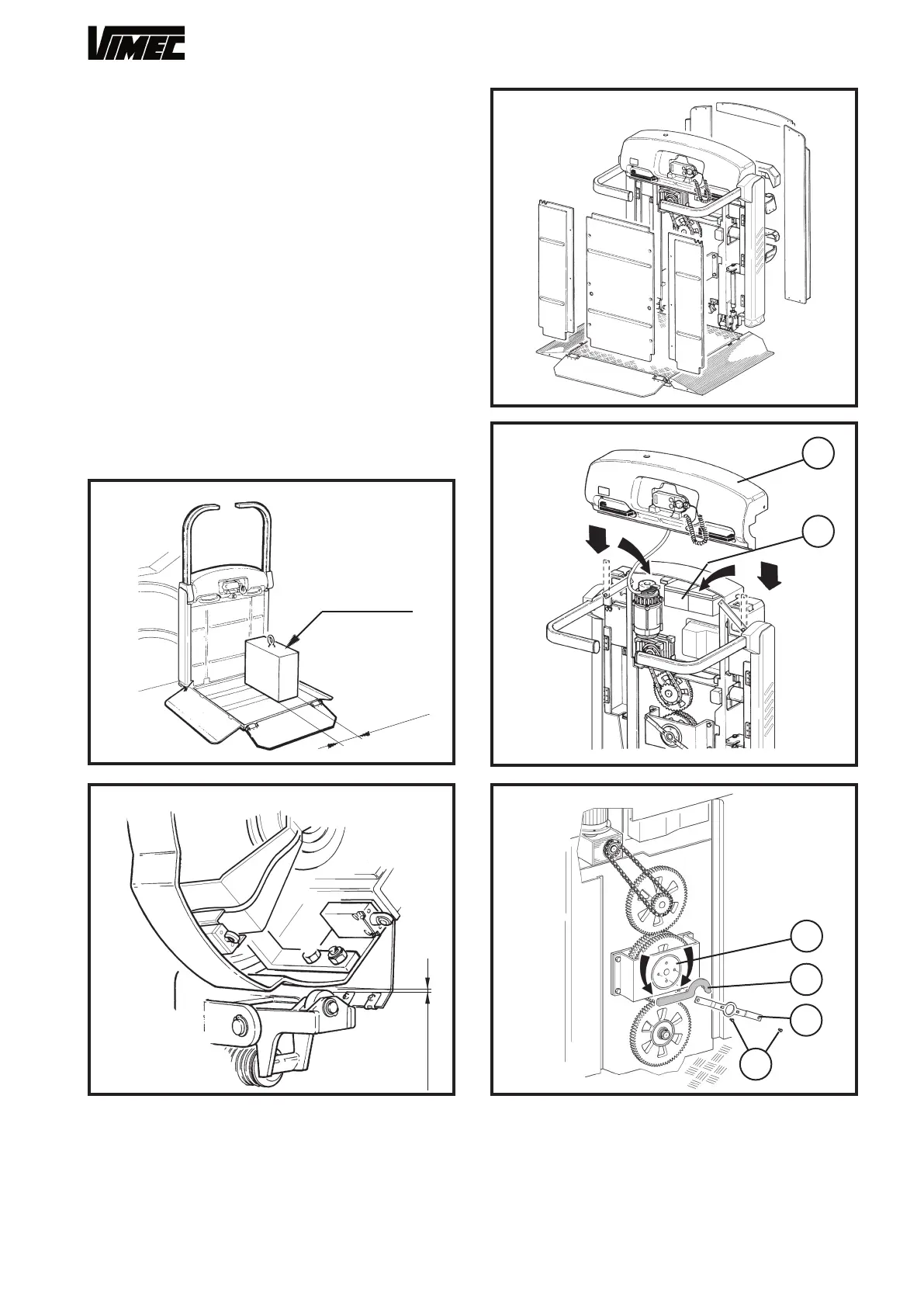

21) FITTING THE CASING (Fig. 63-64)
Fit the upper casing (Fig. 64/a) on the lift, connect-
ing the connector (Fig. 64/b) and using the screws
provided.
Fit all the lift casing sections as shown in the overall
drawing supplied with the lift, taking care not to crush
any electrical wires or moving parts.
FIG.61
FIG.62
FIG.63
FIG.64
FIG.65
250 kg
150 mm
1 ÷ 2 mm
38
a
b
a
b
c
d
