(6). Battery Indicator
The five-segment indicate of battery SOC, when the battery voltage is high, the
five-segment LCD is all on. When the percentage is 0, the battery needs to be
charged immediately.
The default voltage of display battery is 36V. The segmented voltage values are
30.5V-32.5V-34.35V-36.03V-37.48V-39.46V.
Battery percentage
Battery bar indicator
Detailed introduction
80% ≤SOC
Show Full grids（5 grids）
60% ≤SOC < 80%
Show 4 grids
40% ≤SOC < 60%
Show 3 grids
20% ≤SOC < 40%
Show 2 grids
10% ≤SOC< 20%
Show 1 grids
5% ≤SOC < 10%
Show 0 grids
0% ≤SOC < 5%
Show 0 grid, and the battery symbol
flashes at a frequency of 1HZ as a whole
(7). Motor Power Indicator
The motor output power is shown via Power bar interfacing.

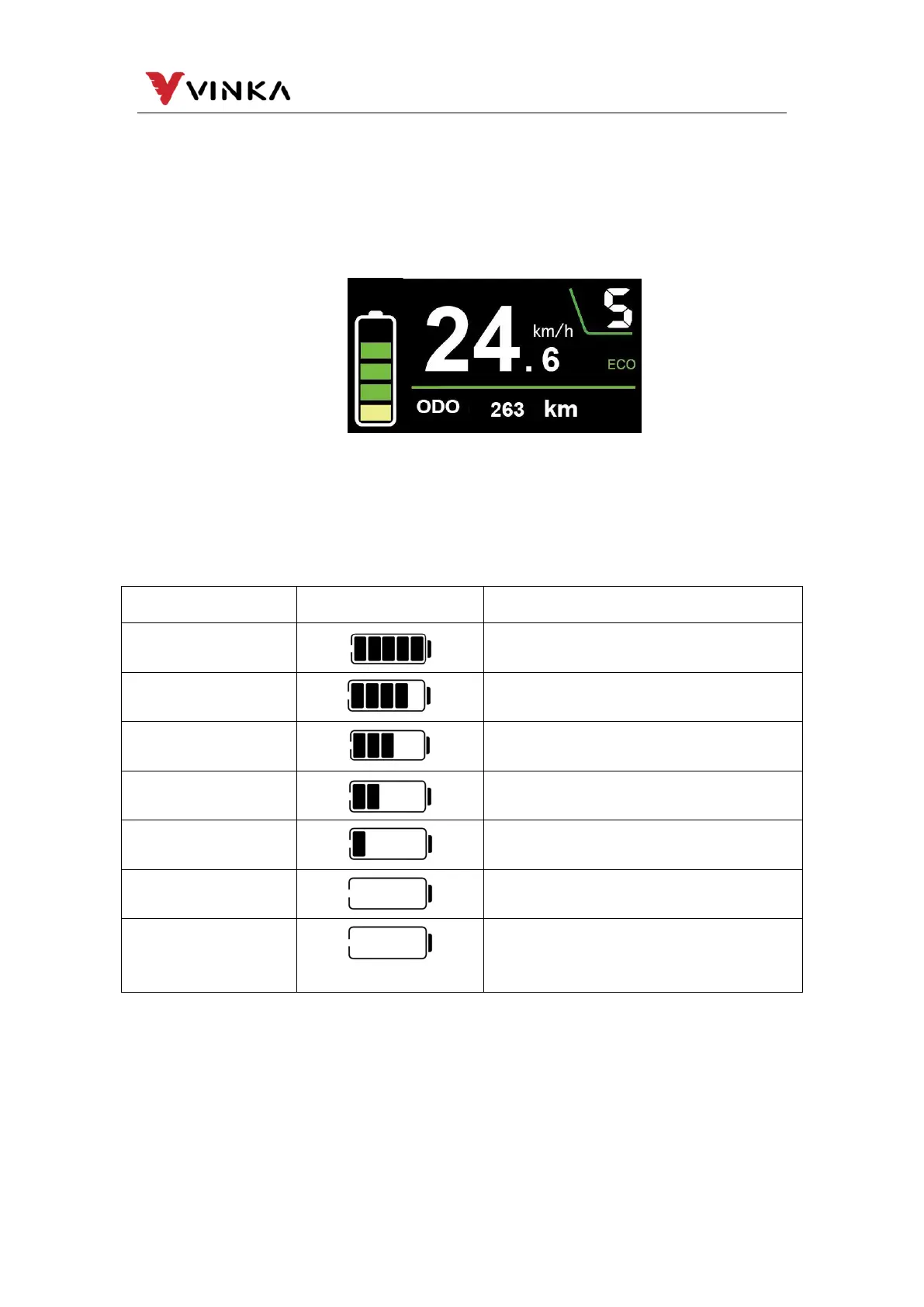

Battery SOC Interface
