VINKA DR23 - Warnings

9

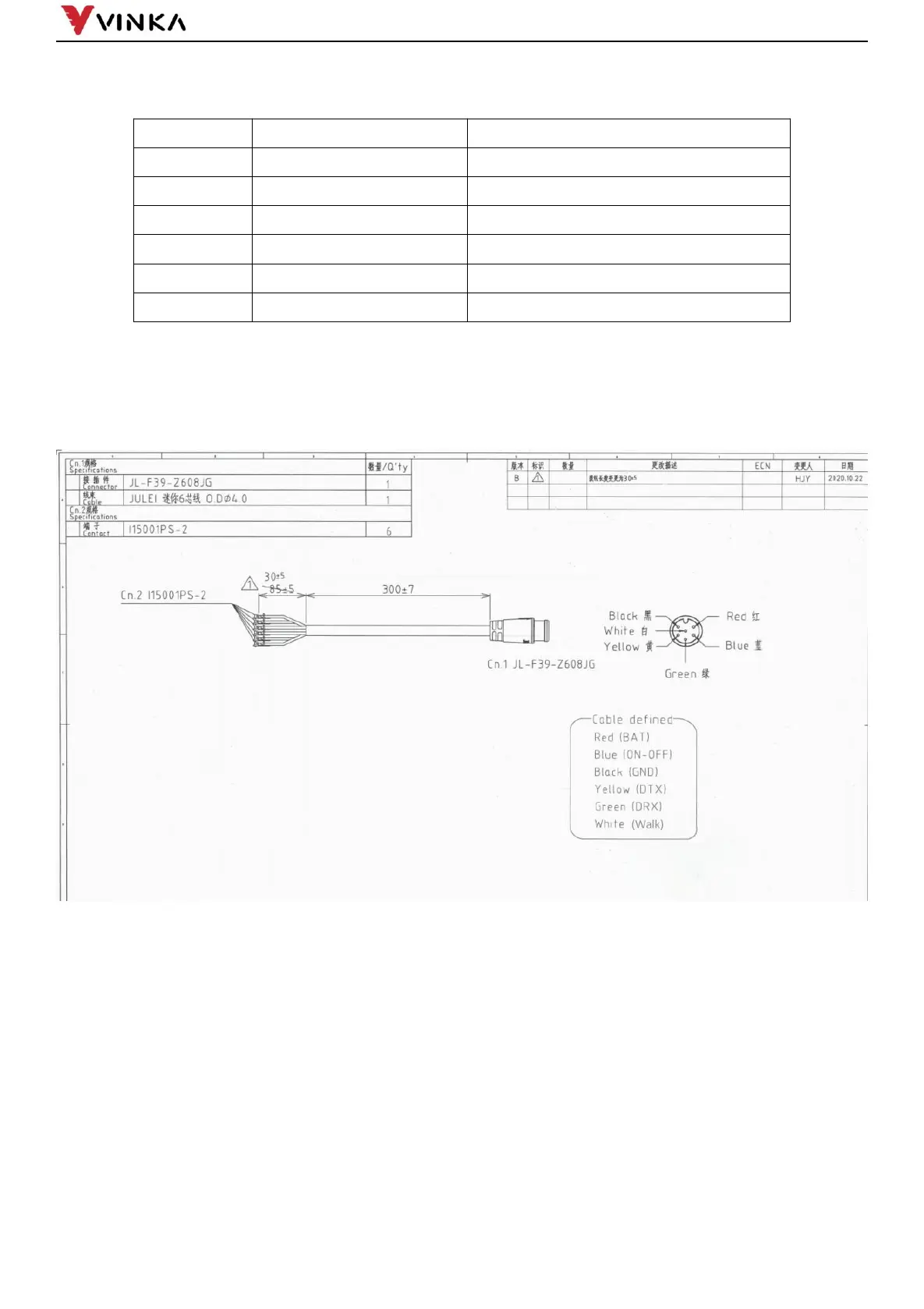

Wire sequence table
Wire serial
Code
Function
1
BAT
Battery power wire
2
GND
Ground wire
3
DTX
Data transmission wire of the display
4
DRX
Data receiving wire of the display
5
ON-OFF
Controller power control wire
6
Walk
Push control wire
■displays have wire connection with water-proof connectors, users can not see the pin
wire colors.
②
Outlet diagram that comes with the display
Warnings:
1. Use the display with caution. Don’t attempt to release or link the connector when battery is power on.
2. Try to avoid hitting the display.
3. Don’t modify system parameters to avoid parameter disorder.
`
4. Make the display repaired when error code appears.
■This manual instruction is a universal version for VINKA DR23 display. Software specific, versions of this
display may be different. Please always refer to an actual version.
