- 65 -
6.9 RS-232/422/485 Setup
In Setup Menu display, press ▲▼◄► to change the highlighted option to

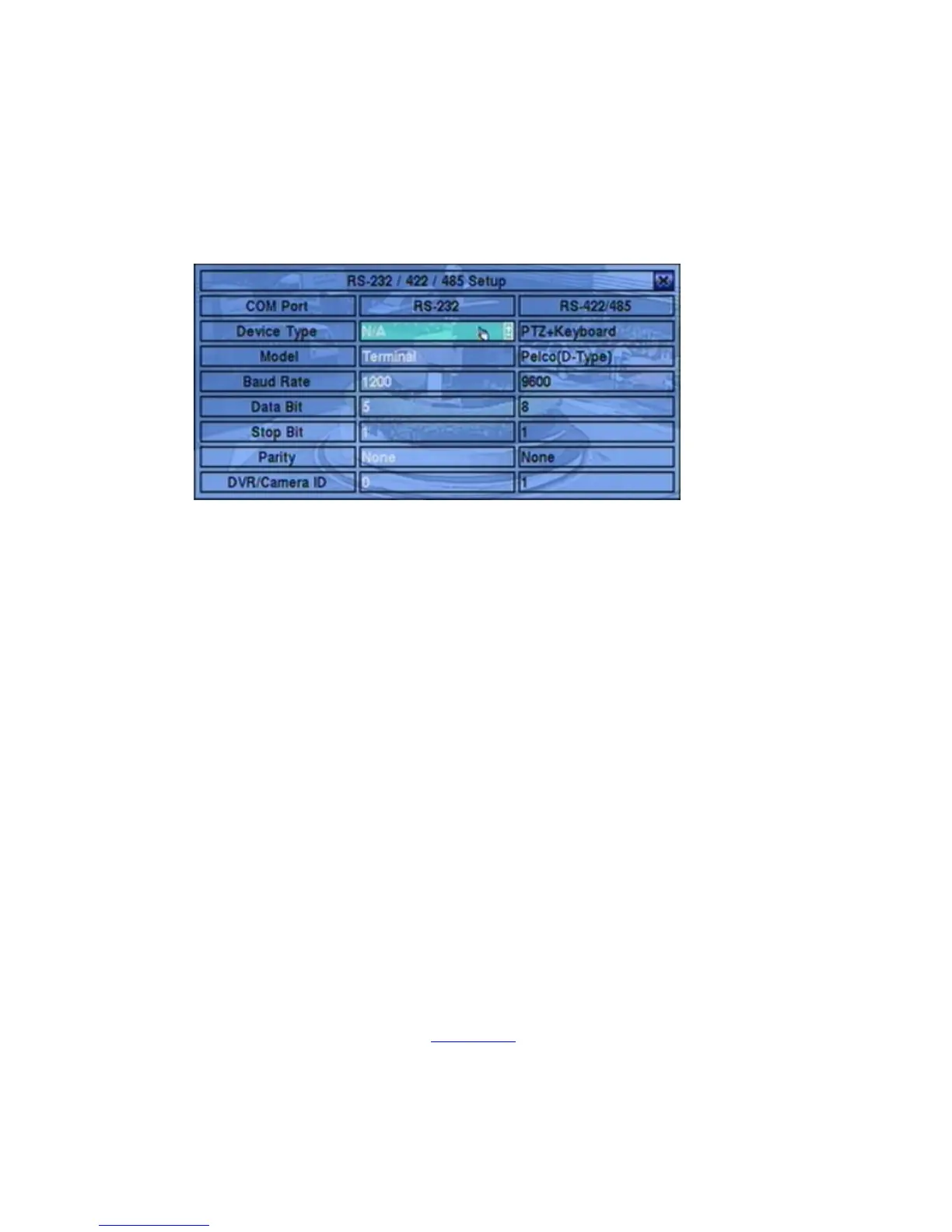

RS-232/422/485, and then press ENTER to call up RS-232/422/485 Setup as shown.
The RS-232/422/485 Setup allows the administrator to setup RS-485 control port.
Please refer to the manuals for the connected devices - PTZ cameras or keyboard
controllers – to set these items in RS-232/422/485 Setup.
The general operations are as below:
▲▼◄► (Mouse: Left click)
Press these buttons to select the items.
ESC (Mouse: Right Click)
Press this button to escape from this screen, and return to Setup Menu display. If
the Save dialog is shown, press ENTER to exit and save, ESC (Mouse: Right
Click) to exit without saving.
Following is a brief description for each item and its specific operations:
Device Type – PTZ, Keyboard, GPS, POS, PTZ+Keyboard or N/A (Not
Available). Press +/- buttons to change the type.
Model – PTZ model (for PTZ and PTZ+Keyboard), Keyboard model, GPS
protocol, or POS printer type of the connected devices. The PTZ models
supported include Pelco D protocol Dome, SamSung SCC-641P, Kalatel
Cyber Dome, PIH-series, Dynacolor, Bosch AutoDome, Video Trek, etc.
The Keyboard models supported include Terminal (EX. VT-100) and Control
Protocol. For Terminal type, please use the corresponding ASCII characters
for code as described in Appendix-D
. The GPS protocol supported is
NMEA0183. The POS printer types supported include Epson General (EX.
