Configure connections
The project engineering of connections i.e. the "link-up" between stations
happens in NetPro from Siemens. NetPro is a graphical user interface for
the link-up of stations.
A communication connection enables the program controlled communi-
cation between two participants at the Industrial Ethernet. The communi-
cation partners may here be part of the same project or - at multi projects -
separated within related part projects.
Communication connections to partners outside of a project are configured
via the object "In unknown project" or via deputy objects like "Other
stations" or Siemens "SIMATIC S5 Station".
The following properties are characterizing a communication connection:
• Bi-directional data transfer (Send and receive on one connection)
• Both participant have equal rights, i.e. every participant may initialize the
send res. receive process event controlled.
• Except of the UDP connection, at a communication connection the
address of the communication partner is set via the project engineering.
Here the connection is active established by one station.

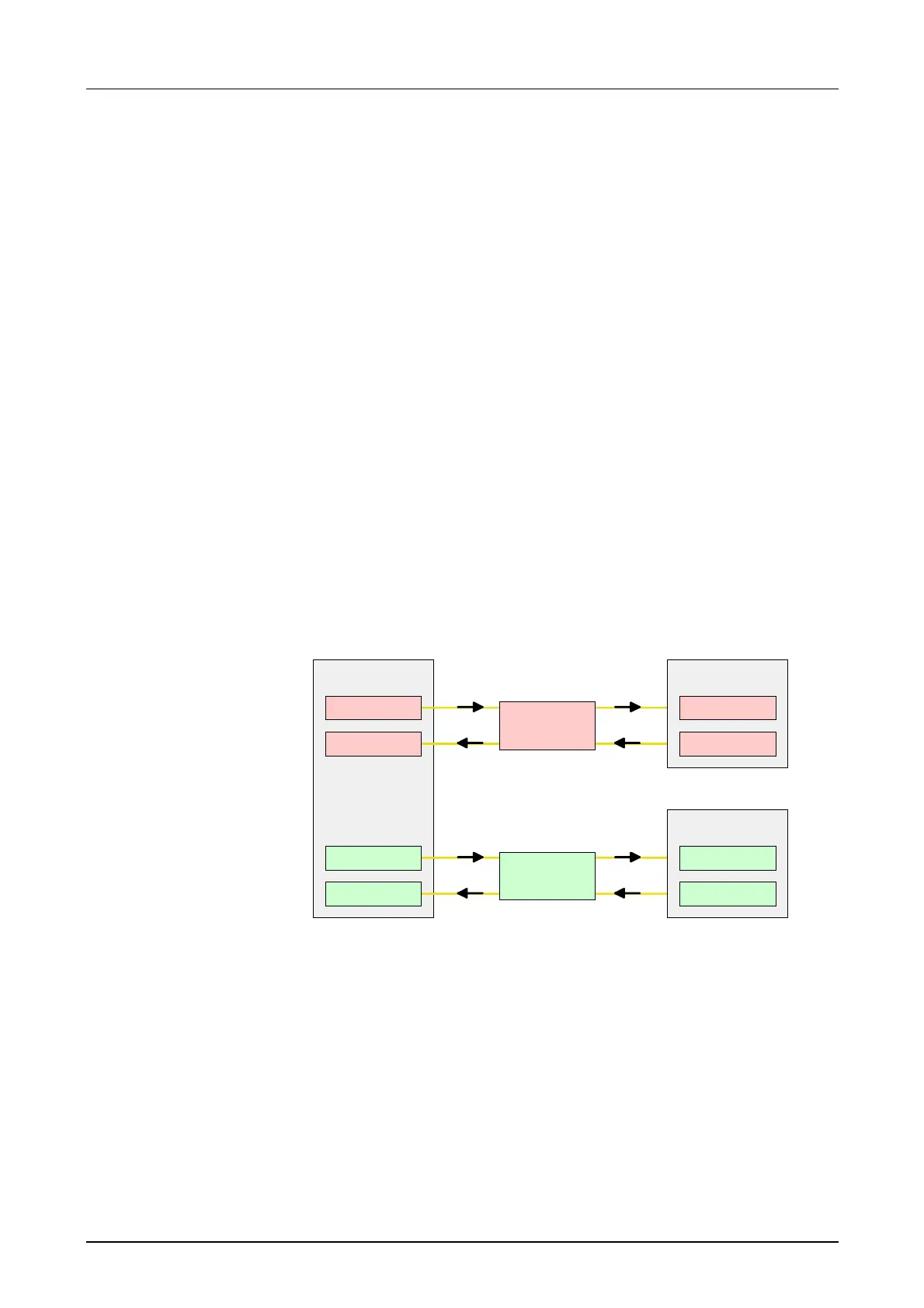

CP
send
receive
Communication
link
Ethernet partner
receive
send
send
receive
Communication
link
Ethernet partner
receive
send
.
.
.
.
.
.
.
.
.
• Siemens SIMATIC Manager V. 5.1 or higher and SIMATIC NET are
installed.
• The CP has been engineered at the hardware configuration, entered
into the hardware configuration and linked-up to the Ethernet subnet.
• The CP as bus participant has an IP address.
Outline
Properties
Requirements
