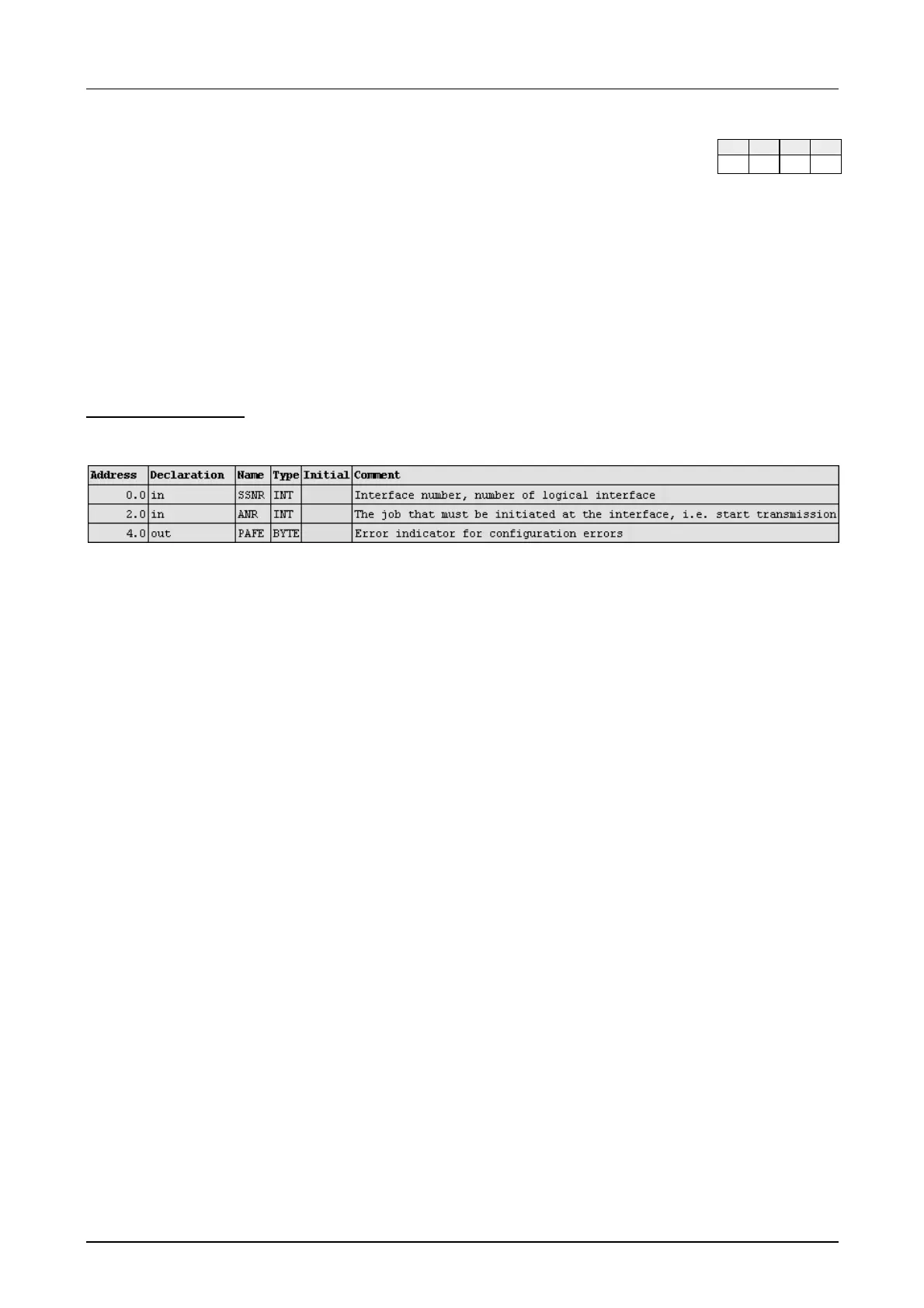

Chapter 11 Integrated OBs SFBs SFCs Manual VIPA CPU 21x
11-48 HB103E - Rev. 05/45
SFC 234 - RESET
The RESET_ALL function is called via the order number 0. This resets all
orders of this logical interface, e.g. deletes all order data and interrupts all
active orders.
With a direct function (ANR
0) only the specified order will be reset on the
logical interface.
The block depends on the VKE and may be called from cyclic, time or
alarm controlled program parts.
The block has two different operating modes:
RESET ALL
RESET DIRECT
Description
Parameter
Operating modes
11x 21x 31x 51x
