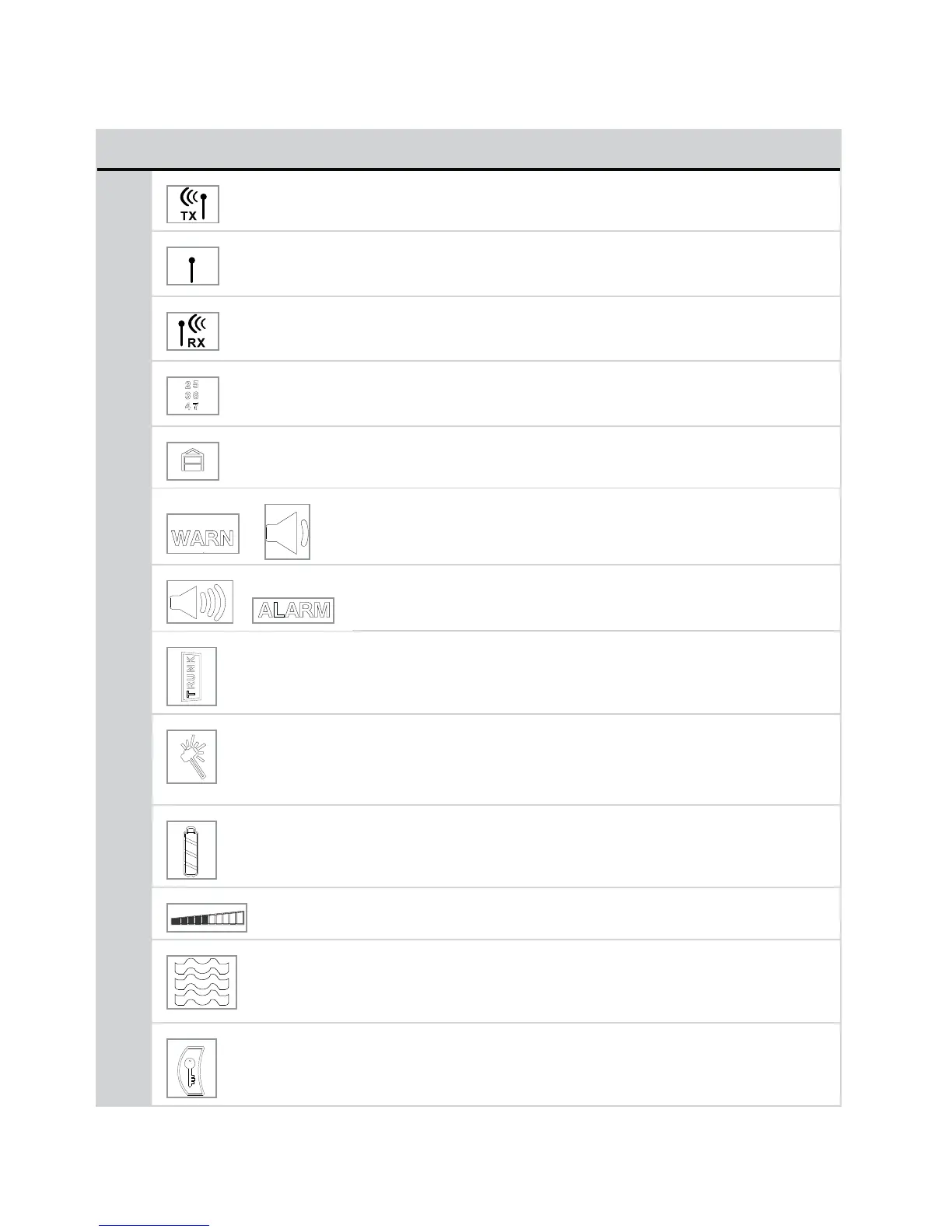

LCD status icons / 2-way only
Icon Description
1
On during remote command transmission to the vehicle.
2
On during remote command transmission to vehicle, but
command page is not received.
3
On during receipt of page from the vehicle to the
remote.
4
Displays which auxiliary is operating, or which security
sensor is in Warn Away or alarm state.
5
No Function
6
+
Displays when a security feature is tripped, but not to
full alarm.
7
+
Displays when a security is tripped to a full alarm state.
8
Trunk icon flashes a few seconds during full alarm and
then remains displayed until page is cleared.
9
Shock sensor icon flashes a few seconds during Warn
Away and full alarm, and then remains displayed until
page is cleared.
10
Battery icon displays current charge capacity of the
remote’s battery.
11
Bar indicates remote is sending.
12
Vibrator icon displays if remote is programmed for
vibrator notification. (See remote Programming section)
13
Ignition icon flashes a few seconds during full alarm,
then remains displayed until page is cleared.
