Viper 330V - H1;5 Green: Negative Door Trigger Input; H1;6 Blue: Instant Trigger Input; H1;7 Violet: Positive Door Trigger Input

© 2005 directed electronics, inc.
13

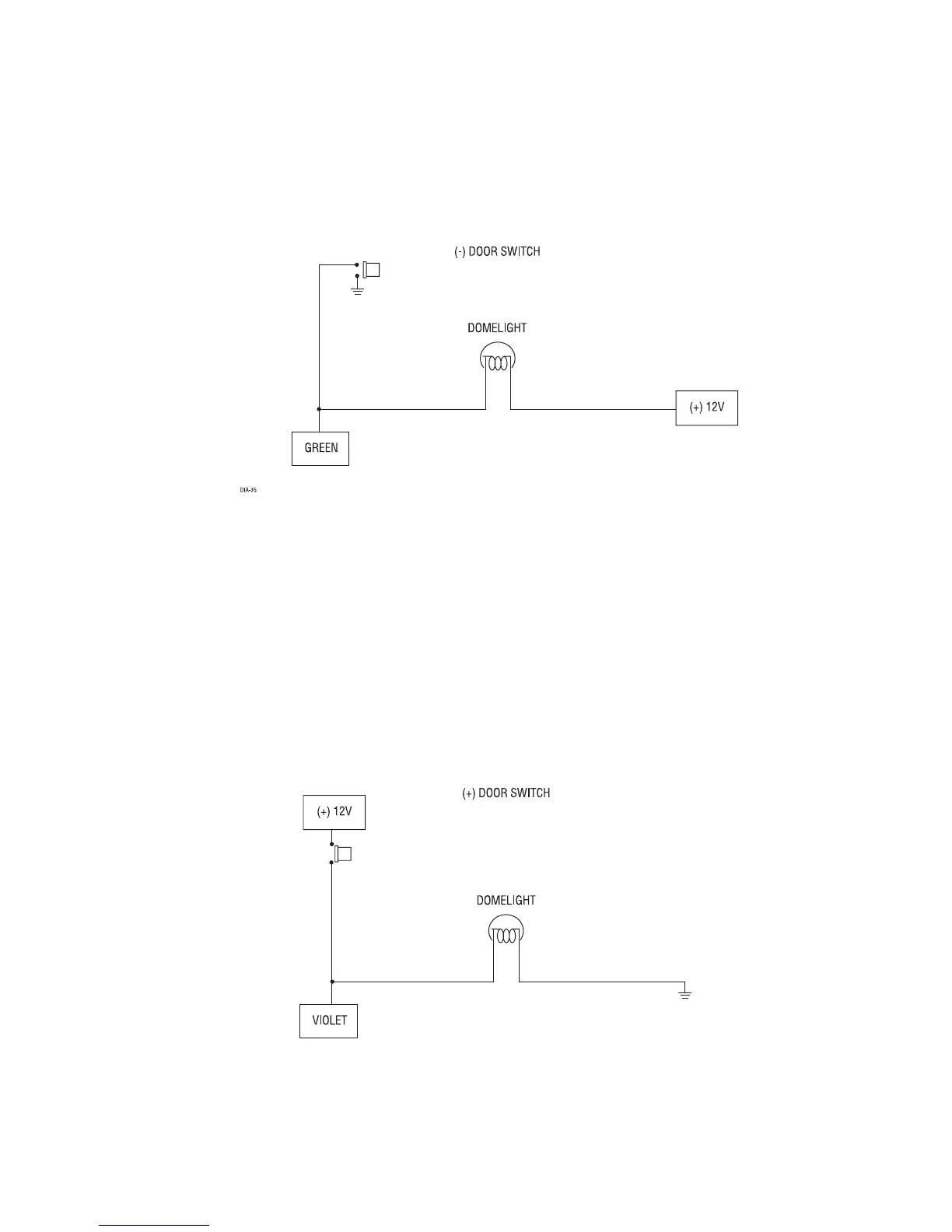

HH11//55 GGRREEEENN ((--)) ddoooorr ttrriiggggeerr iinnppuutt
: Most vehicles use negative door trigger circuits.
Connect the green wire to a wire which shows ground when any door is opened. In
vehicles with factory delays on the domelight circuit, there is usually a wire that is
unaffected by the delay circuitry.
HH11//66 BBLLUUEE ((--)) iinnssttaanntt ttrriiggggeerr::
This input will respond to a negative input with an
instant trigger. It is ideal for hood and trunk pins and will report on zone one.
HH11//77 VVIIOOLLEETT ((++)) ddoooorr ttrriiggggeerr iin
nppuutt::
This wire is used in vehicles that have a positive
(+) switched dome light circuit . Connect the violet wire to a wire that shows (+)12V
when any door is opened, and ground when the door is closed.
