12.1.3 Homepage
The display of data, alerts and alarms is an activity that can be performed by all users,
including common users.
Any configuration of the machine's functional parameters is left to expert users only.

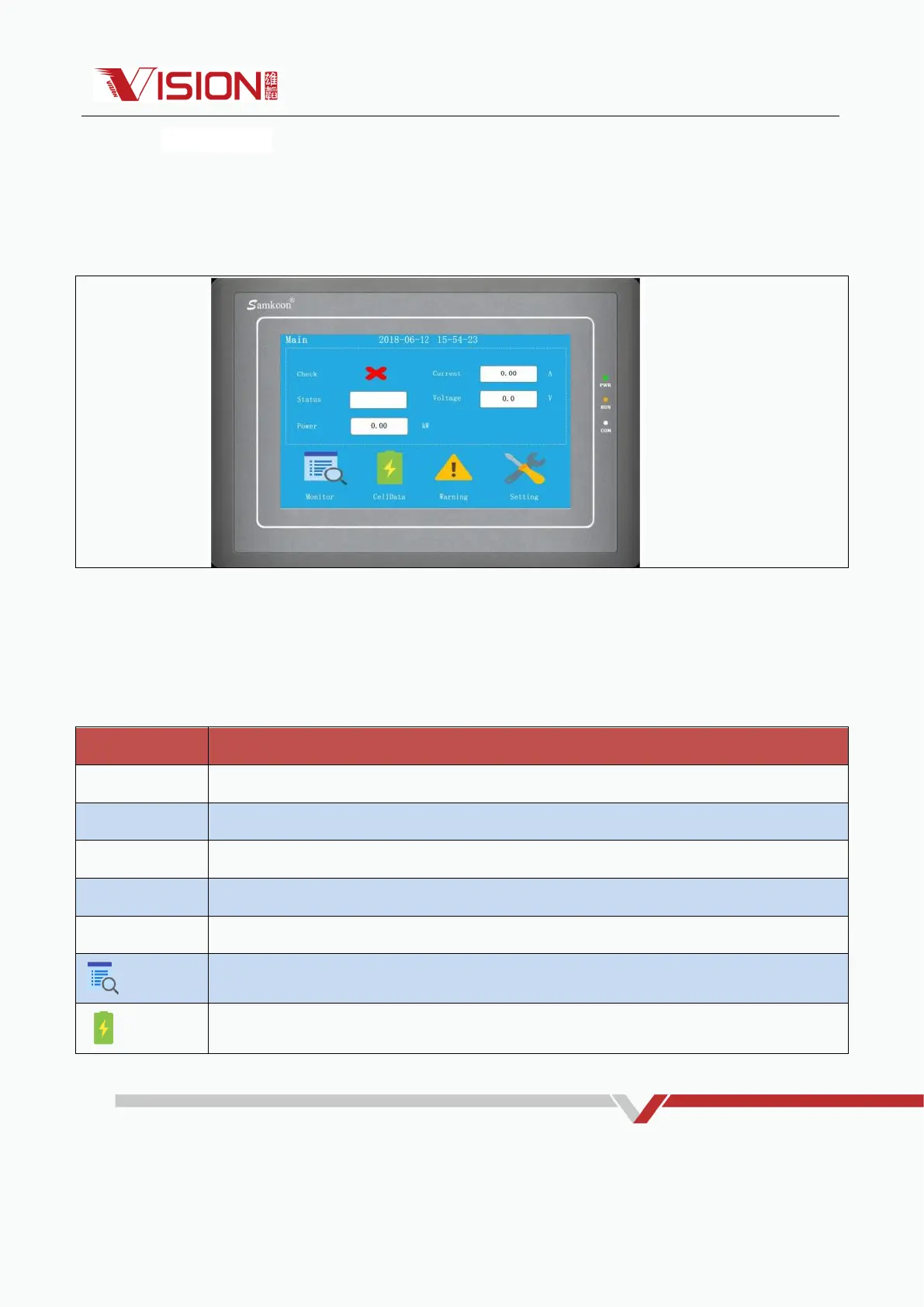

Figure 12.1-3 GBMS homepage preview
After the HMI starts, the home page will be displayed, and the content of the home page is
as follows:
Table 12.1-1 GBMS item
Item
Description
Check
Display system self-check status: red cross means self-check failure, green tick means self-check success
Status
Display real-time charge and discharge status
Power
Display real-time power
Current
Display real-time system current
Voltage
Display real-time system voltage
Monitor
Click to display the system monitoring page
Cell Data
Click to view the system cell data
