VT5500 INSTALLATION GUIDE
9
t +44 (0) 1246 225 745 | e orders@visiontrack.com | w visiontrack.com
VT5500
Wiring:

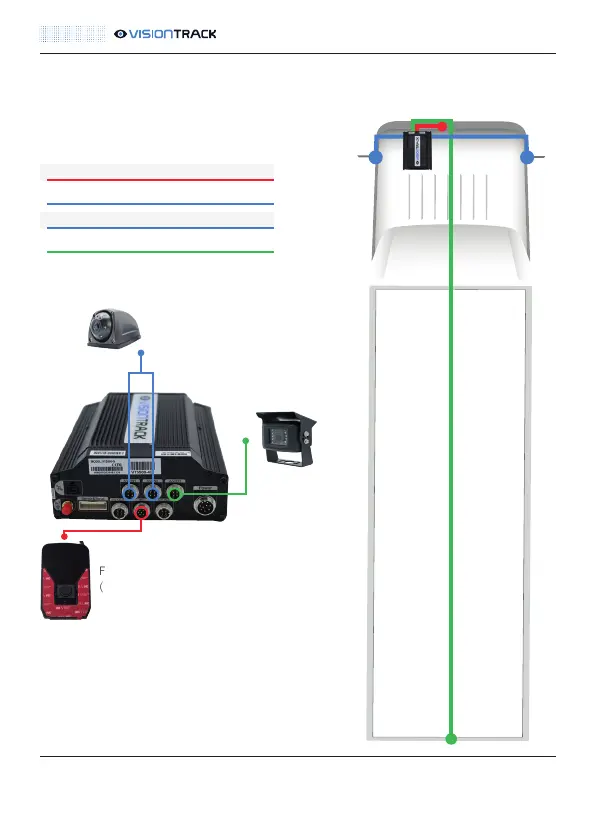

Connect the cameras to the VT5500G as follows:
Side-facing Cameras
(VT408-AHD Image)
Rear-facing Camera
(VT646-AHD Image)
Forward-facing Camera
(VT-C20-IPC Image)
Camera Position Port
VT-C20-IPC Front IPC
VT408-AHD Left Side A/V IN 1
VT408-AHD Right Side A/V IN 2
VT646-AHD Rear A/V IN 3
