Vislink AFD120 X - Technical Specifications; RF Specifications

VISLINK
Flydrive 120-150 Antenna 6

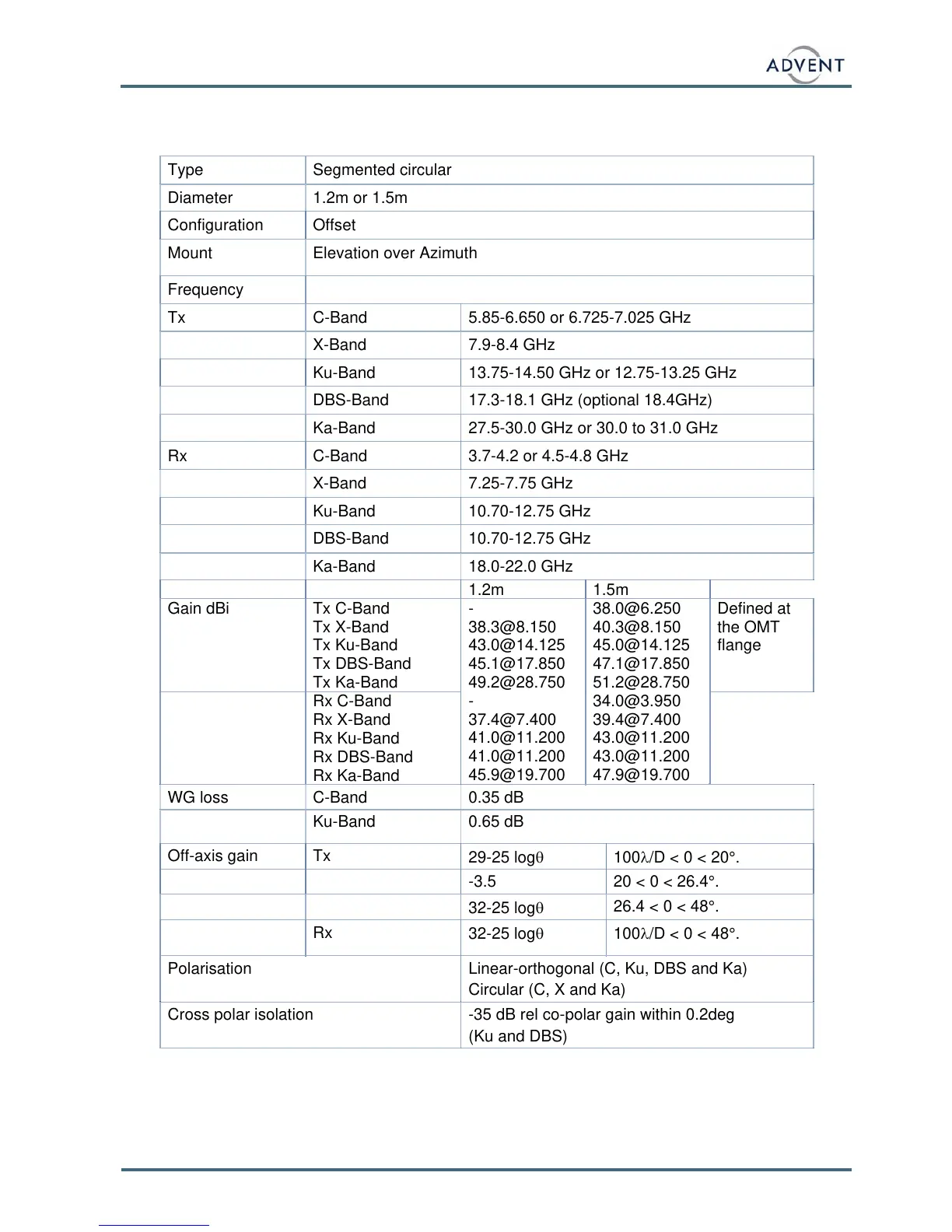

2. SPECIFICATION
2.1 RF
Type Segmented circular
Diameter 1.2m or 1.5m
Configuration Offset
Mount Elevation over Azimuth
Frequency
Tx C-Band 5.85-6.650 or 6.725-7.025 GHz
X-Band 7.9-8.4 GHz
Ku-Band 13.75-14.50 GHz or 12.75-13.25 GHz
DBS-Band 17.3-18.1 GHz (optional 18.4GHz)
Ka-Band 27.5-30.0 GHz or 30.0 to 31.0 GHz
Rx C-Band 3.7-4.2 or 4.5-4.8 GHz
X-Band 7.25-7.75 GHz
Ku-Band 10.70-12.75 GHz
DBS-Band 10.70-12.75 GHz
Ka-Band 18.0-22.0 GHz
1.2m 1.5m
Gain dBi Tx C-Band
Tx X-Band
Tx Ku-Band
Tx DBS-Band
Tx Ka-Band
-
38.3@8.150
43.0@14.125
45.1@17.850
49.2@28.750
-
37.4@7.400
41.0@11.200
41.0@11.200
45.9@19.700
38.0@6.250
40.3@8.150
45.0@14.125
47.1@17.850
51.2@28.750
34.0@3.950
39.4@7.400
43.0@11.200
43.0@11.200
47.9@19.700
Defined at
the OMT
flange
Rx C-Band
Rx X-Band
Rx Ku-Band
Rx DBS-Band
Rx Ka-Band
WG loss C-Band 0.35 dB
Ku-Band 0.65 dB
Off-axis gain Tx
29-25 log 100/D < 0 < 20°.
-3.5 20 < 0 < 26.4°.
32-25 log
26.4 < 0 < 48°.
Rx
32-25 log 100/D < 0 < 48°.
Polarisation Linear-orthogonal (C, Ku, DBS and Ka)
Circular (C, X and Ka)
Cross polar isolation -35 dB rel co-polar gain within 0.2deg
(Ku and DBS)
