Flydrive 120-150 Antenna 8
2.3 MECHANICAL
Azimuth adjustment ± 200°
Elevation adjustment 6° to 92°
Pol. Adjustment ± 95°
Motorisation Azimuth
Elevation
Polarisation

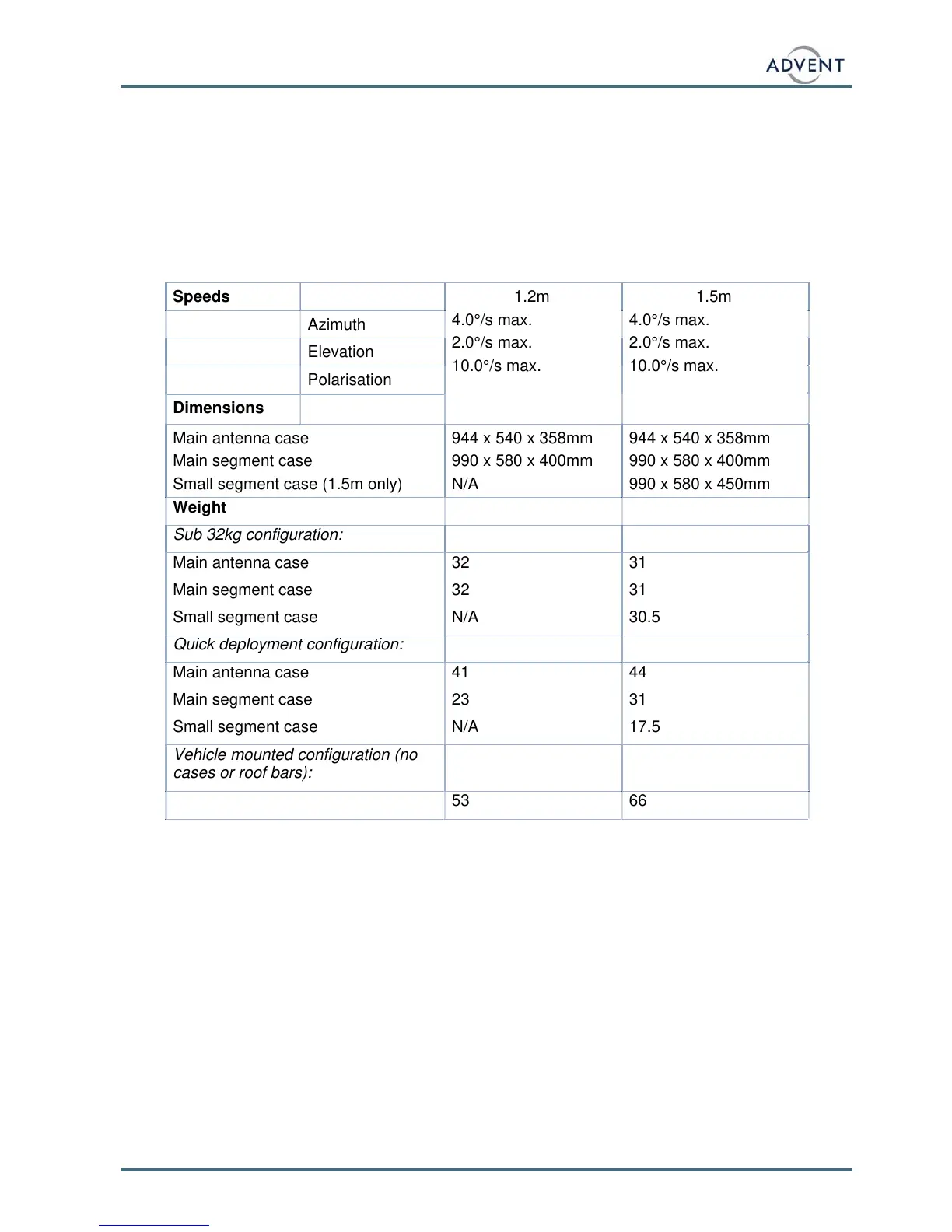

Speeds
1.2m
4.0°/s max.
2.0°/s max.
10.0°/s max.
1.5m
4.0°/s max.
2.0°/s max.
10.0°/s max.
Azimuth
Elevation
Polarisation
Dimensions
Main antenna case
Main segment case
Small segment case (1.5m only)
944 x 540 x 358mm
990 x 580 x 400mm
N/A
944 x 540 x 358mm
990 x 580 x 400mm
990 x 580 x 450mm
Weight
Sub 32kg configuration:
Main antenna case
Main segment case
Small segment case
32
32
N/A
31
31
30.5
Quick deployment configuration:
Main antenna case
Main segment case
Small segment case
41
23
N/A
44
31
17.5
Vehicle mounted configuration (no
cases or roof bars):
53 66
