Vislink AFD120 X - VSWR, Isolation & Flanges; Feed and Power Specs; Drive Control Unit Specs

VISLINK
Flydrive 120-150 Antenna 7

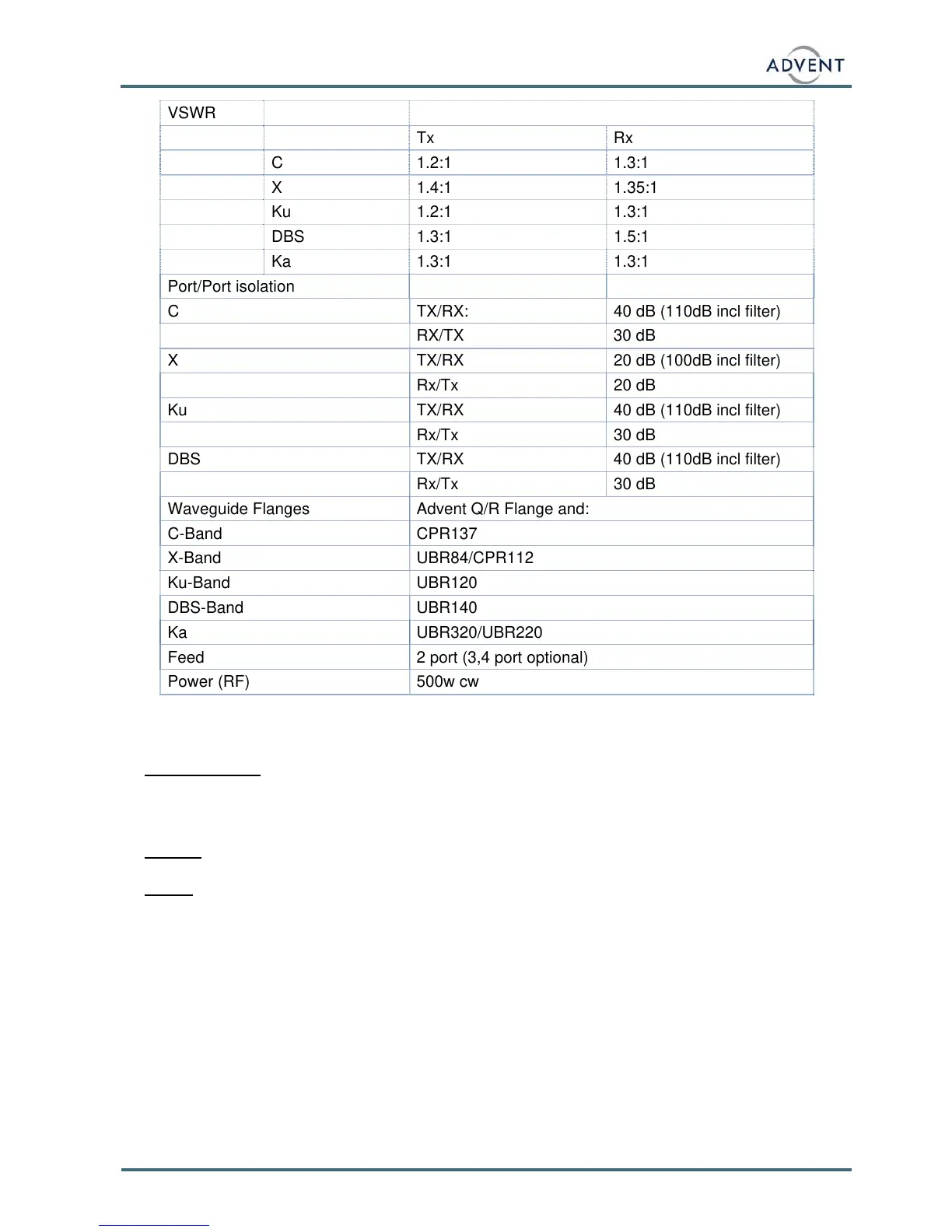

VSWR
Tx Rx
C 1.2:1 1.3:1
X 1.4:1 1.35:1
Ku 1.2:1 1.3:1
DBS 1.3:1 1.5:1
Ka 1.3:1 1.3:1
Port/Port isolation
C TX/RX: 40 dB (110dB incl filter)
RX/TX 30 dB
X TX/RX 20 dB (100dB incl filter)
Rx/Tx 20 dB
Ku TX/RX 40 dB (110dB incl filter)
Rx/Tx 30 dB
DBS TX/RX 40 dB (110dB incl filter)
Rx/Tx 30 dB
Waveguide Flanges Advent Q/R Flange and:
C-Band CPR137
X-Band UBR84/CPR112
Ku-Band UBR120
DBS-Band UBR140
Ka UBR320/UBR220
Feed 2 port (3,4 port optional)
Power (RF) 500w cw
2.2 DRIVE CONTROL UNIT
Antenna Limits
Polarisation ± 95°
Azimuth -200° to +200°
Elevation 6° to 92°
Display
Resolution 0.1°
Power
Power Connector 3 Pin IEC plug with dual fusing
AC Supply 90-264V AC. (47-63Hz)
Consumption < 100VA
