Template Operators Manual
Front Panel Overview
Issue No: 1 Page: 15
Ref: DVE6-ASUM-70xx Copyright © 2019 IMT and Vislink are Vislink Technologies Inc. companies
4. Front Panel Overview
4.1. Front Panel

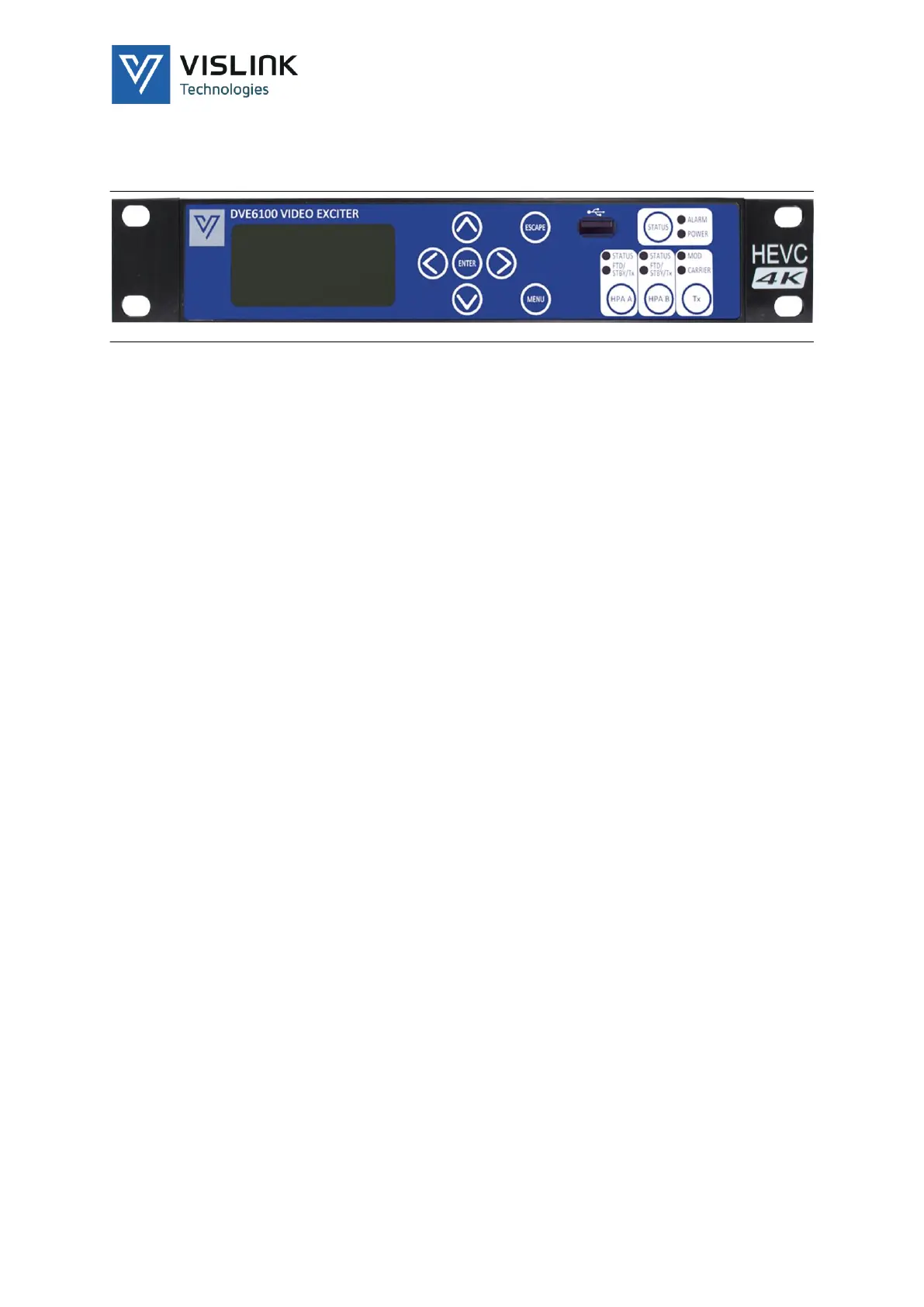

Figure 4-1 DVE6100 Front Panel Overview
4.2. Selection Keys
The <MENU> key provides rapid entry to the main operating menu screen.
Pressing MENU from a main screen returns you to the top of the previous menu
tree.
The <ESCAPE> key acts like the up arrow key when navigating around the
menus. Selecting ESCAPE takes you up a level each press. The ESCAPE button
also exits from an entry operation, aborting changes.
4.3. Menu Scroll Keys
UP / DOWN, LEFT / RIGHT arrow keys select an option displayed in the window
and navigate around the menu tree.
The <ENTER> key initially selects an option or a choice of selection; by using the
UP / DOWN / LEFT / RIGHT arrow keys to change the parameter, pressing
<ENTER> commits the change. Pressing <ESCAPE> aborts the change.
The upper line, in smaller font, of the LCD shows the parameters available by
means of a prompt, access to the next menu level, or a summary of the status of
the menu option.
4.4. Hot Keys
TX key – Used to turn the main output carrier on or off and control the
modulation.
A short press bring up a clean carrier; a further short press turns off the carrier.
Holding the key for 2 seconds brings on the modulation.
A further press will drop the modulated carrier.
STATUS key – Pressing this key brings the user directly to the ALARMS menu
screen.
HPA A (B) key – Future use.
