Rear Panel
Issue No: 1 Page: 17
Ref: DVE6-ASUM-70xx Copyright © 2019 IMT and Vislink are Vislink Technologies Inc. companies
5. Rear Panel

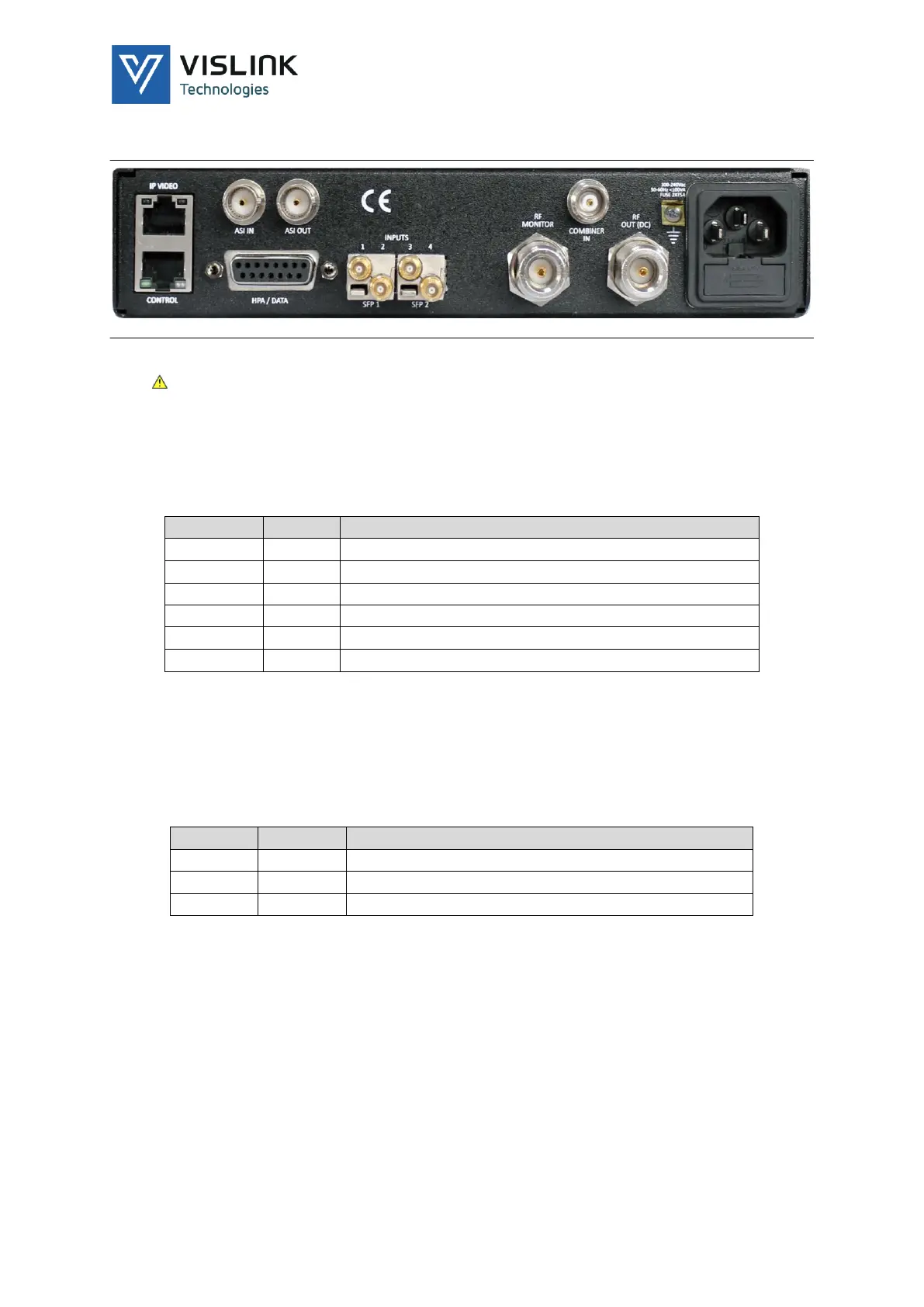

Figure 5-1 Rear Panel Overview
CAUTION: Keep side vents clear at all times. The unit must have adequate
ventilation from the front-left to the rear-right.
5.1. Monitor – Control HPA Control & MPEG Data
The RC&M/HPA/DATA connection is via a female 15-way D connector.
5.1.1. 15-Way D-Type (Female) Pin Definition
15W PIN#
Signal
Description
1
RXA
Remote control RS485 RX+ into DVE /RS232 RX
2
RXB
Remote control RS485 RX- into DVE
3
TXA
Remote control RS485 T+ from DVE
4
TXB
Remote control RS485 TX- from DVE /RS232 TX
7
GND
Ground connection
12
GND
Ground connection
5.2. MPEG User Data
MPEG stream accepts data at 9K6, 19K2 or 38K4 baud.
NOTE: See Section 7.1.6 for more on controlling this data.
The format is in RS232 using the pins defined below.
15W PIN#
Signal
Description
5
Data Rx
RS232 MPEG data input to DVE
6
Data Tx
Not used
7
GND
-
