Wiring Diagrams
Vivint Element CT200 Installation Guide
Accessory Wiring
Zoned Hot Water Heat
For Solenoid or Motor valves,
connect the wires based on the
diagrams to the correct terminal
on the CT200. When controlling a
hydronic heating system, congure
the thermostat as HVAC Type =
Normal with Heat Type = Gas.
• USE ONLY IN HEAT MODE.
• The CT200 must be powered by 24v ac.
The third wire on your valve may be called 6, Y, or G (see the Wire
Reference Table on page 23.

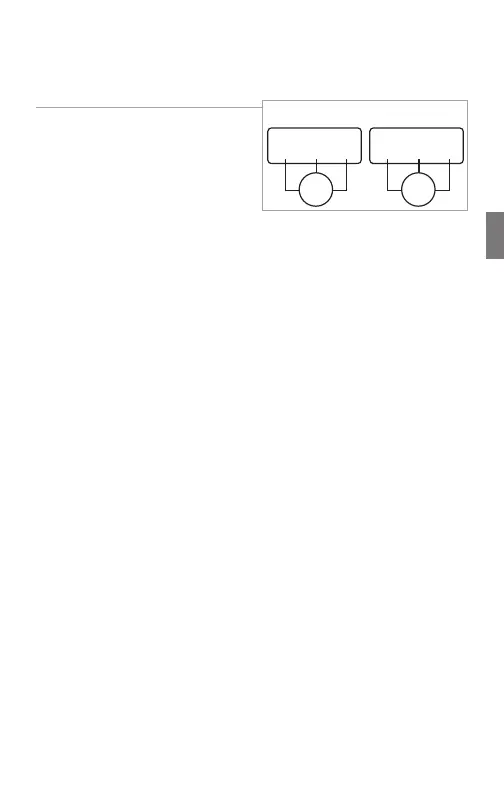

CT102
RH AW
MOTOR VALVE
RH
WA
CT102
RH AW
SOLENOID VALVE
RH
AW
27
To Next Page
