Vivo MOUNT-E-FD70S/W - Step-by-Step Assembly Guide; Step 1: Installing the Mounting Brackets

5
S-F (x4)
M6x10mm Screw
T-B (x1)
4mm Allen Wrench
ASSEMBLY STEPS
D (x2)
Mounting Bracket
A (x1)
Mount
D
A
S-F
T-B

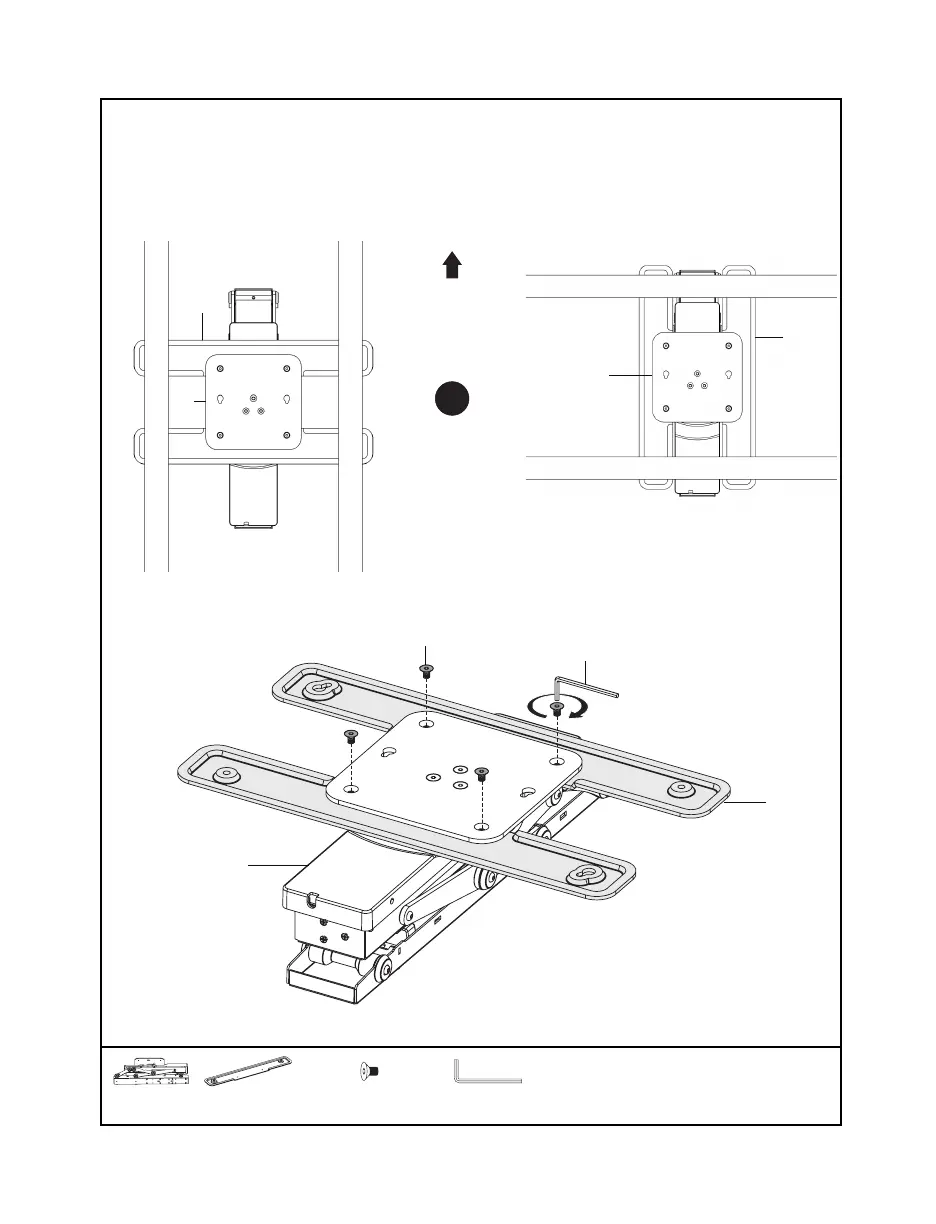

STEP 1: Installing the Mounting Brackets
For wooden joist mounting, determine what direction the joists run and the direction you want
the display mounted. Using the layout images, assemble Mounting Brackets (D) to Mount (A)
using M6x10mm Screws (S-F) and 4mm Allen Wrench (T-B). For concrete ceilings, Mounting
Brackets (D) can be assembled in either orientation.
Joists Joists
D
A
TV Direction
OR
Joists
Joists
A
D
NOTE: The remaining steps will
be using this mounting style
