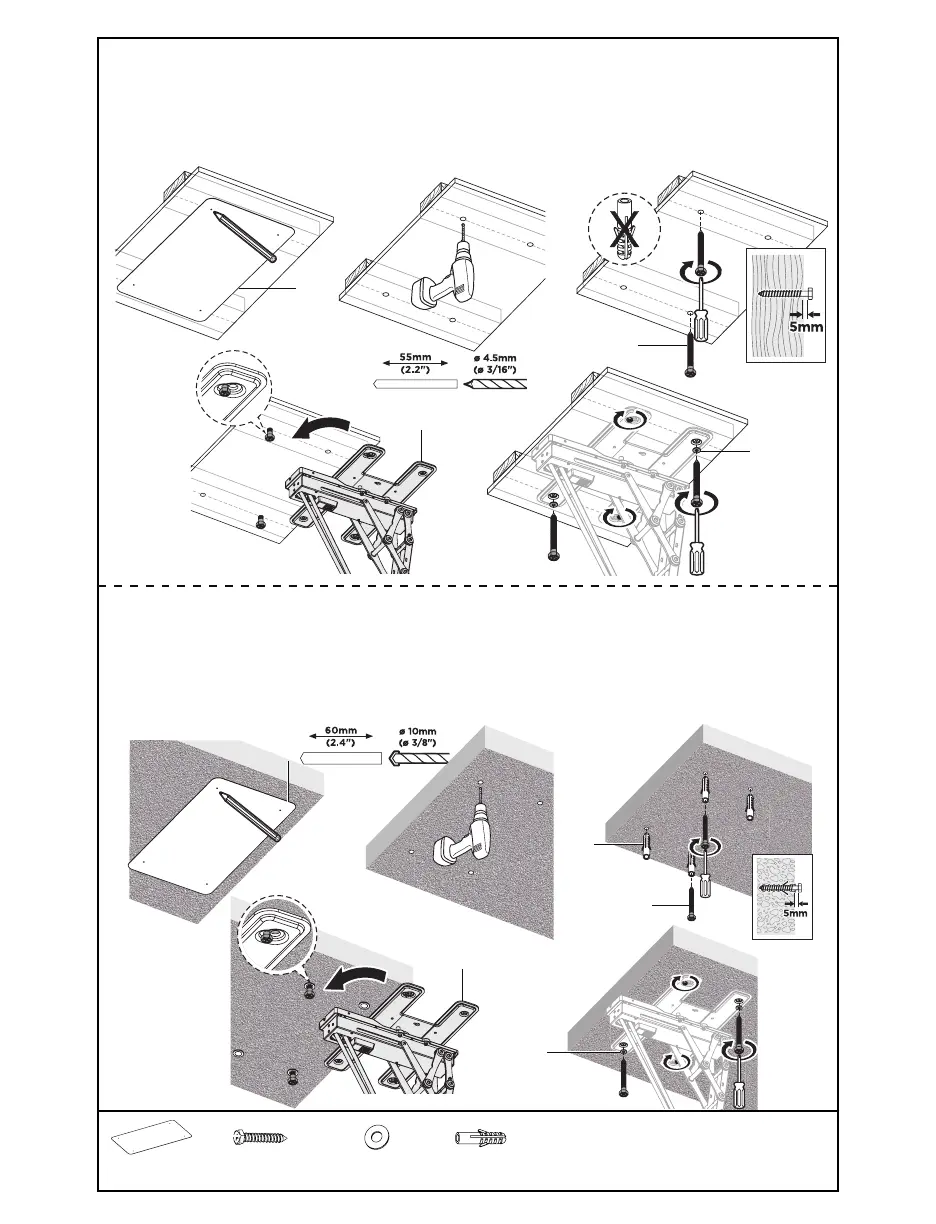

OPTION B: Concrete Ceiling
Using Ceiling Template (C), mark exact location of mounting holes. Drill pilot holes 2.4” (60mm) deep, using a
3/8” (10mm) drill bit. Insert Concrete Anchors (W-B) into drilled holes. Insert two ST6.3x55mm Screws (W-A)
inline with the keyhole slots on the mount, leaving a 5mm gap from ceiling. Hang Mounting Brackets (D)
so that the screws fit into the keyhole openings, then then slightly rotate the mount so the screw heads are
resting on the smaller hole. Tighten screws and secure using additional additional ST6.3x55mm Screws (W-A)
and Washers (W-C).
W-A (x4)
ST6.3x55mm Screw
W-C (x2)
Washer
C (x1)
Template
W-B (x4)
Concrete Anchor
CC
W-AW-A
W-B
W-C
D
STEP 2: Mounting VESA Assembly
OPTION A: Wood Beam Ceiling
Using Ceiling Template (C), mark exact location of mounting holes. Drill pilot holes 2.2” (55mm) deep using
a 3/16” (4.5mm) drill bit. Insert two ST6.3x55mm Screws (W-A) inline with the keyhole slots on the mount,
leaving a 5mm gap from ceiling. Hang Mounting Brackets (D) so that the screws fit into the keyhole openings,
then then slightly rotate the mount so the screw heads are resting on the smaller hole. Tighten screws and
secure using additional additional ST6.3x55mm Screws (W-A) and Washers (W-C).
C
W-A
D
W-C
To Next Page
