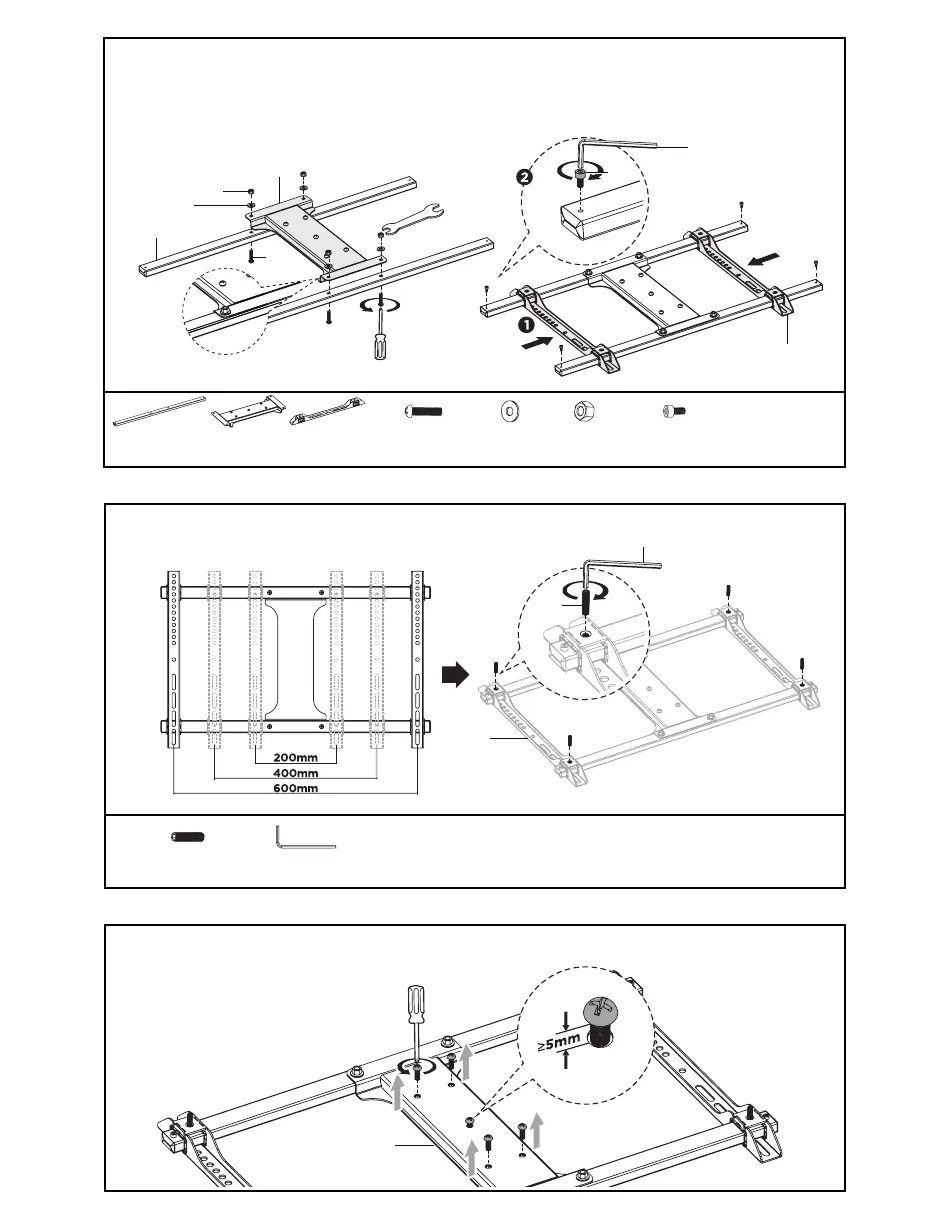

STEP 3: Assembling VESA Components
Assemble Bracket Rails (F) to Center Plate (B) using M6x25mm Screws (S-B), M6 Washers (S-C)
and M6 Nuts (S-D). While holding M6 Nuts (S-D) with a wrench, use a Phillips screwdriver to
tighten M6x25mm Screws (S-B). Slide VESA Brackets (E) onto Bracket Rails (F) and secure using
M4x8mm Screws (S-E) and 3mm Allen Wrench (T-A).
S-C (x4)
M6 Washer
F (x2)
Bracket Rail
B (x1)
Center Plate
E (x2)
VESA Bracket
S-B (x4)
M6x25mm Screw
STEP 4: Adjusting VESA Assembly
Adjust VESA Brackets (E) spacing to match TV mounting holes, and lock in place using M6x10mm
Set Screw (S-A) and 3mm Allen Wrench (T-A).
S-A (x4)
M6x10mm Set Screw
STEP 5: Removing VESA Screws
F
B
S-B
S-C
S-D
E
S-E
T-A
S-D (x4)
M6 Nut
S-E (x4)
M4x8mm Screw
T-A (x1)
3mm Allen Wrench
Remove the four pre-installed screws from Center Plate (B) and loosen the center screw until 5mm
of thread is exposed.
