Mounting the Network Camera - Desktop or Wall Mount

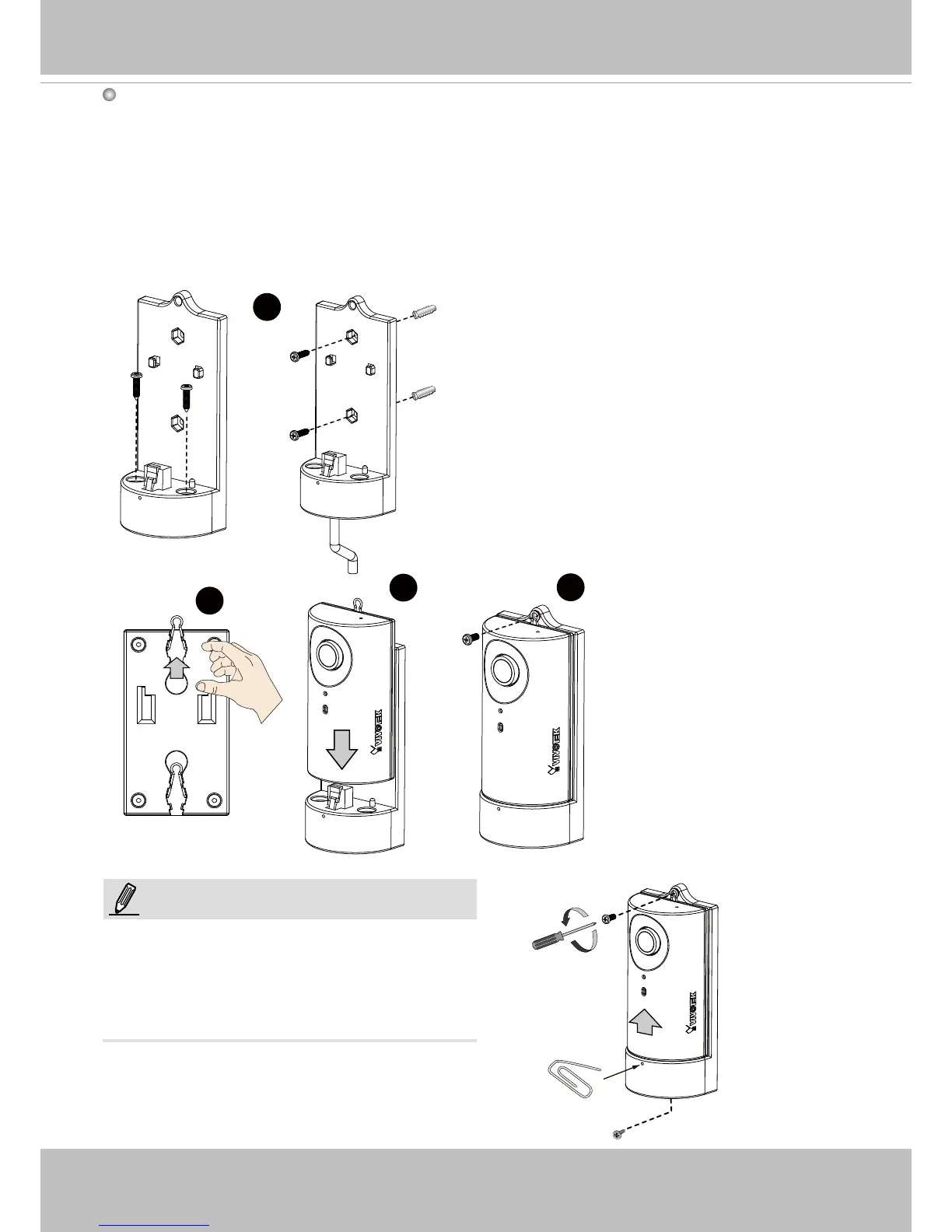

1. You can install the camera to a desktop or to a wall by driving screws through the holes
shown below.
2. Flip the hang ring to the top. You may also secure a camera to wall using the hang rings.
3. Install camera by sliding it down against the bracket. Make sure the RJ-45 connector is
properly mated.
4. Secure the installation by driving a pan head screw through the hang ring and to the bracket
behind.
1
2
3
4
To detach a camera, remove the retention
screw from the top and from the bottom, and
insert a straightened paperclip into the release
button to press on the RJ-45 locking tab.
