Hardware Installation
Round cable
Flat cable
Strain relief boot

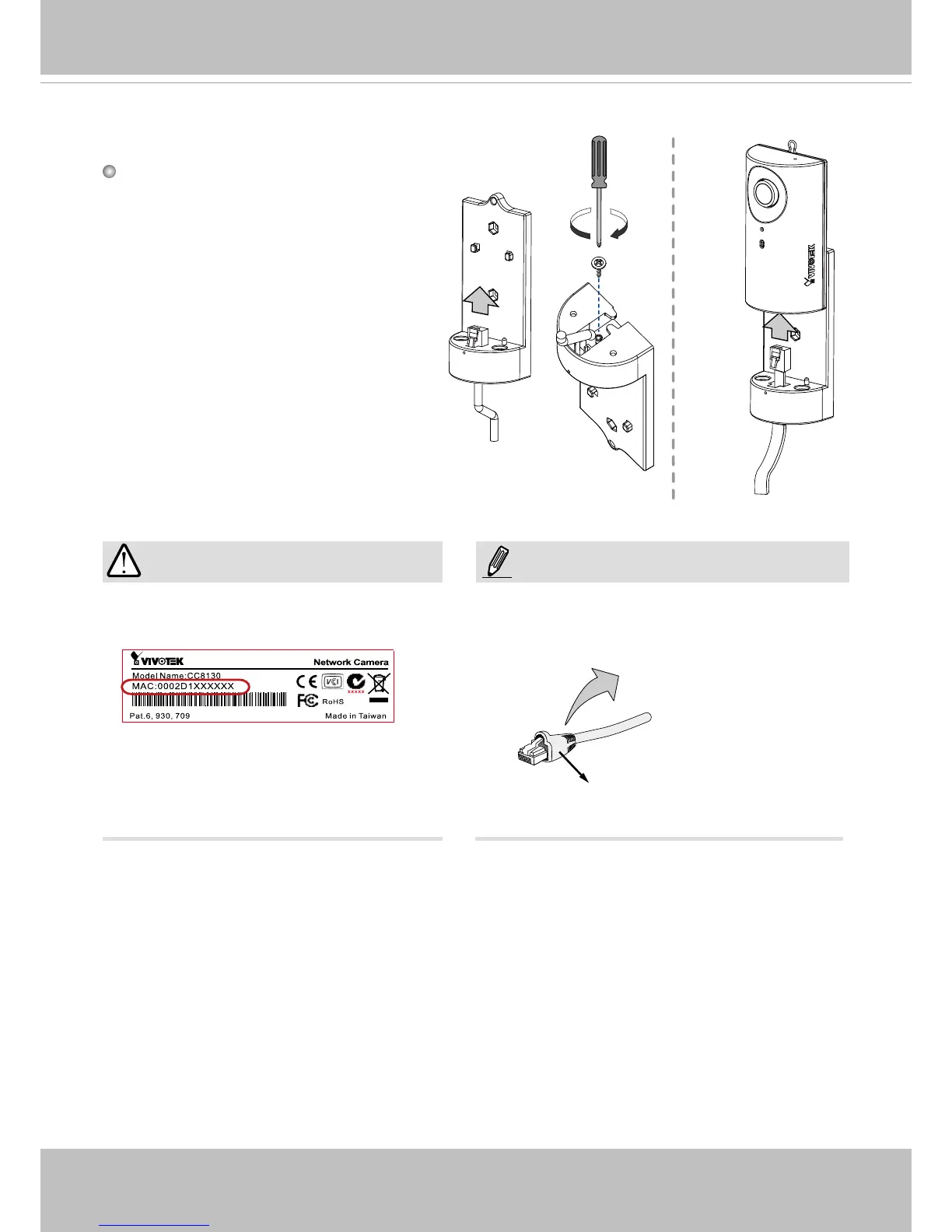

Connecting Ethernet Cable
1. Insert your Ethernet cable through the
opening at the bottom of the camera
bracket.
2. If using a round cable: When the
RJ-45 plug is fully inserted, use the
round-head screw with a washer to
secure its position from the bottom of
the bracket.
If using a flat cable: Pass the cable
through the opening and attach to
camera.
It is recommended to use an Ethernet cable
that comes without the strain relief boot. You
can remove the boot if your cable comes with
one.
Record the MAC address before installing
the camera.
