Completion
1� Align the notches on the inner side of the black cover with the rivets on the sides of the
lens, and then x the black cover.
2� If you choose to feed the cable through the ceiling/wall, arrange the cables neatly
through the cable hole A (not shown in the drawing)� If you choose to feed the cable from
the side, remove plate B�

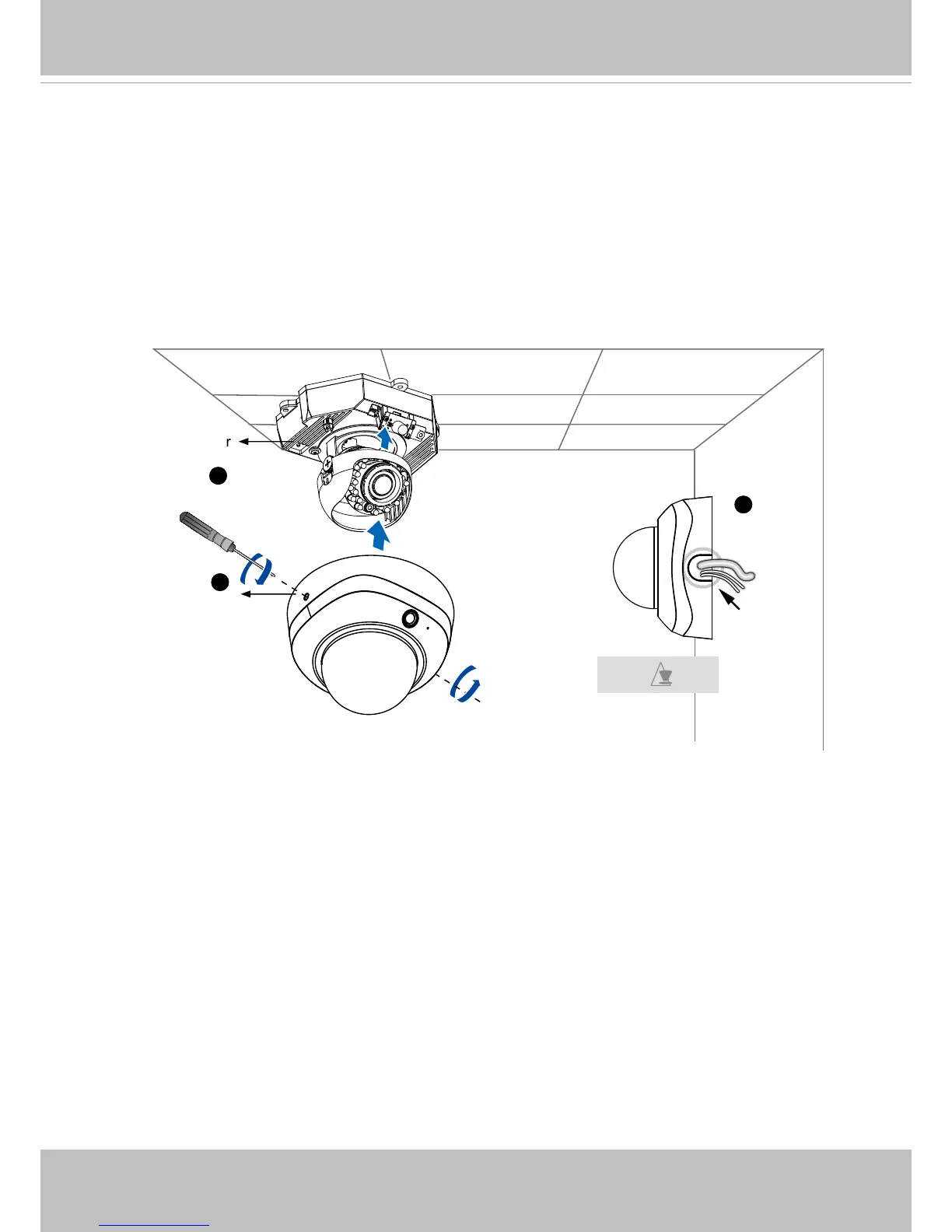

3� Attach the dome cover to the camera as the direction shown below� Tighten two screws
from the sides of the dome cover�
4� Finally, make sure all parts of the camera are securely installed�
1
B
3
2
A
Be aware of the
cable route!
Black Cover
Dome Cover
