Vivotek FD8163 - Network Deployment

VIVOTEK
User's Manual - 11
Network Deployment
General Connection (without PoE)
Power over Ethernet (PoE)
When using a PoE-enabled switch

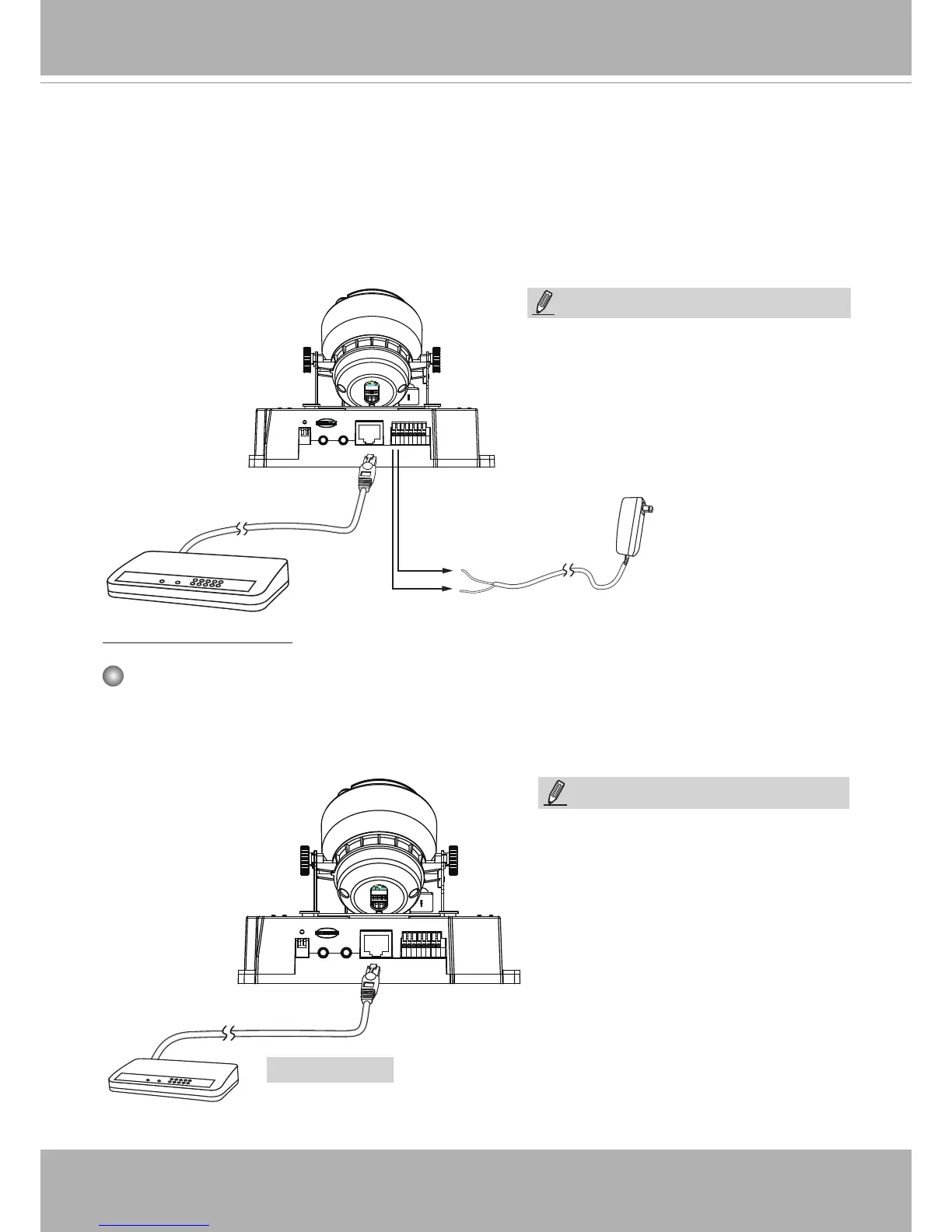

The Network Camera is PoE-compliant, allowing transmission of power and data via a sin-
gle Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-
enabled switch via Ethernet cable.
1. If you have external DI devices, make the connection from general I/O terminal block.
2. Ethernet, power, and other cables are user-supplied.
3. Connect the AC cables from the terminal block as an alternate power source. The IO cables
are user-supplied.
POW
ER
C
OLL
I
S
ION
L
I
N
K
RE
CEIVE
PARTITIO
N
1
2
3
4
5
Ethernet
Switch
Pin3 & 4 AC 24V
Pin #3 & 4 AC 24V as alternate power
are for indoor use only
NOTE:
POW
ER
C
OLL
I
S
ION
L
I
N
K
RE
CEIVE
PARTITIO
N
1
2
3
4
5
PoE Switch
1. This equipment is only to be
connected to PoE networks without
routing to outside plants.
2. For PoE input connections, use only
UL listed I.T.E. with PoE output.
NOTE:
