VIVOTEK
6 - User's Manual

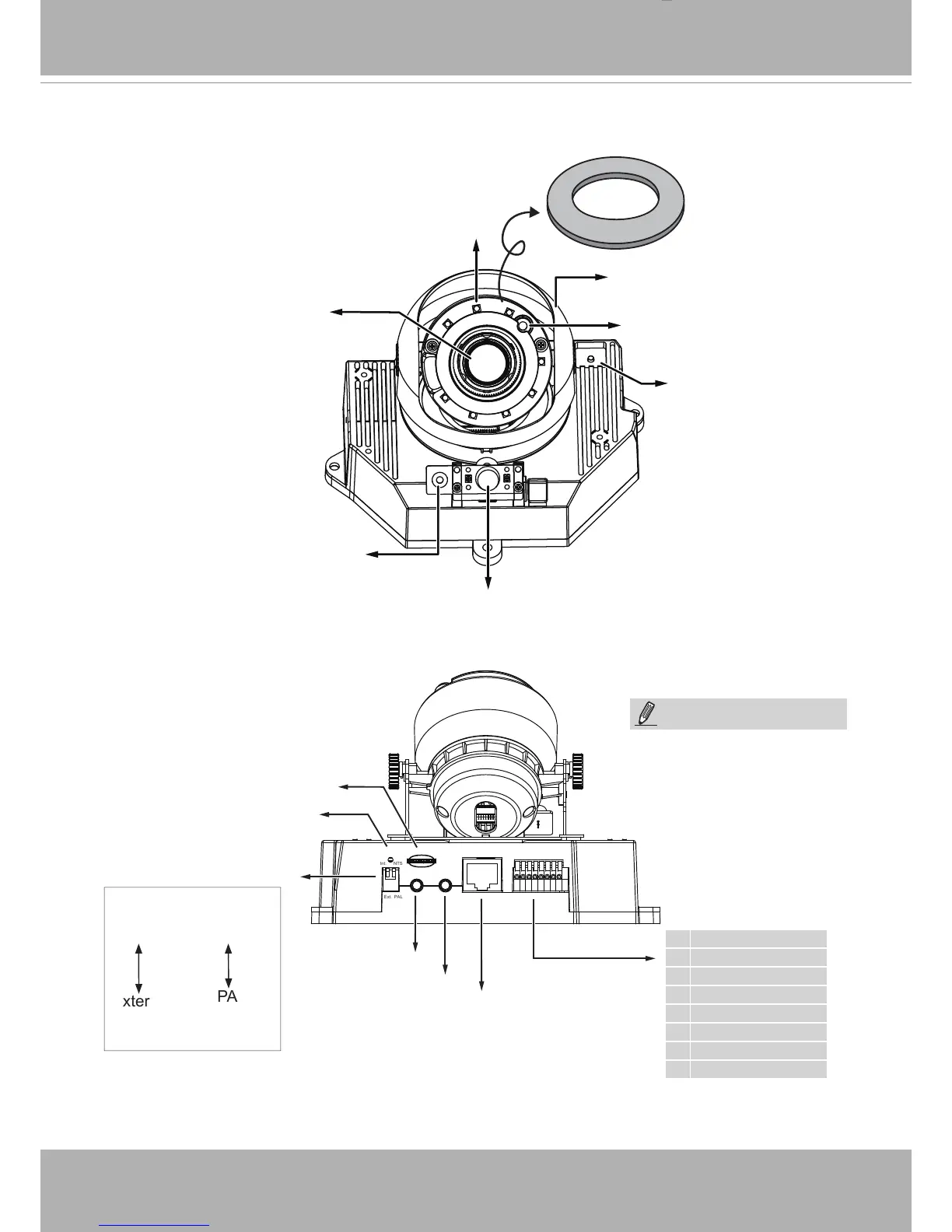

Physical Description
12 3 74 5 86
Ethernet
Micro SD Card
Audio InAV Out
Reset
Int. NTSC
PALExt.
Camera Front View
Camera Rear View
Light Sensor
Lens
Built-in
Microphone
PIR Sensor
Black Cover
IR LEDs
(8 units, effective up to
15m)
Auto Focus Button
General IO Terminal
Block
Microphone In (pink)
Audio/Video Out
(green)
Jumpers
Microphone
Video Output
internal
external
NTSC
60Hz
PAL
50Hz
1 2
Reset Button
Micro SD/SDHC
Card Slot
10/100BaseT
Ethernet
The max. output load from
pins #7 and 8 is 50mA.
NOTE:
1 DC 12V-
2 DC 12V+
3 AC24V_2
4 AC24V_1
5 DI- (GND)
6 DI+
7 DO-
8 DO+ (+12V)
Remove foam pad.
