VIVOTEK
User's Manual - 9

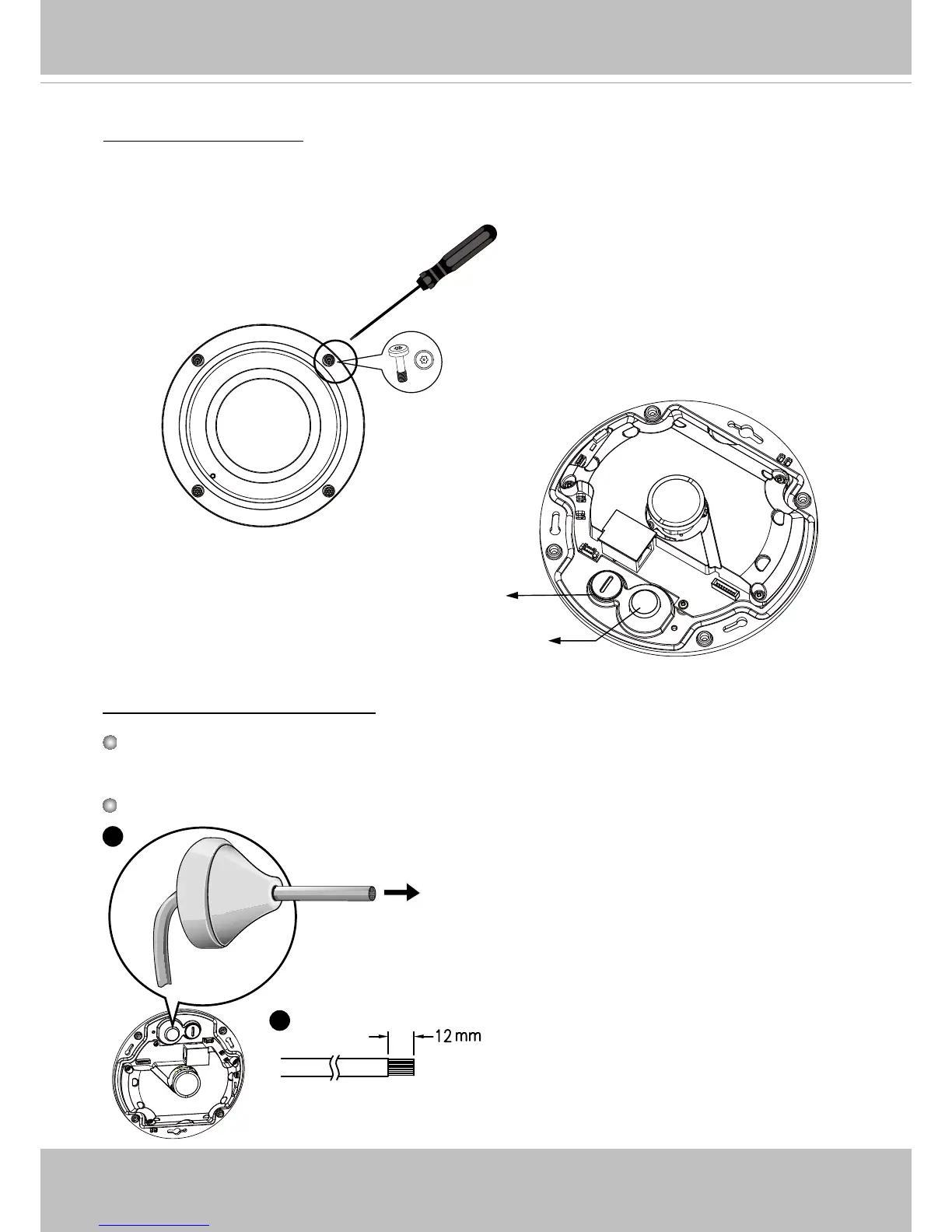

Hardware Installation
Opening Dome Cover
Rubber Stopper on the hole
for Power & IO Cables
Tamper-proof Screw
Rubber Seal Plug on the hole
for RJ45 Ethernet Cable
First, use the supplied screwdriver to loosen the four screws and detach the dome cover from the
camera base. Then, follow the steps below to install the camera to either a ceiling or a wall.
Remove the stoppers and route cables through the
openings.
RJ45 Cable Dimension (unit: mm)
Assembly Steps
2. Strip part of the sheath from the Ether-
net cable.
1. Drill a hole on the rubber seal plug and
insert an Ethernet cable through the
opening.
Recommended cable gauge: 24AWG (0.51 mm)
Connecting RJ45 Ethernet Cable
Rubber Seal
Plug
1
2
