Vivotek FE8174 User Manual

VIVOTEK
User's Manual - 9

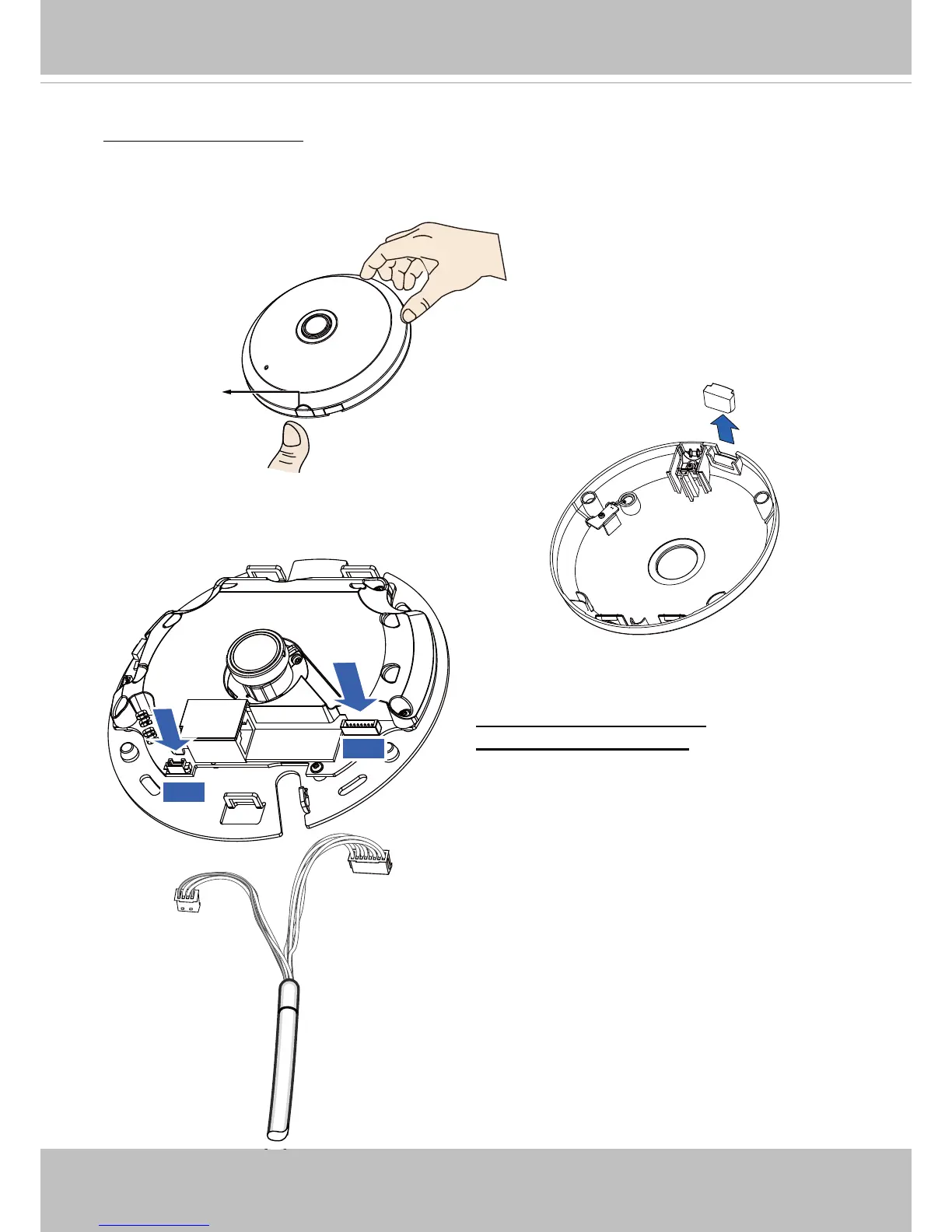

First, open the dome cover by pressing the release button. You may squeeze the opposite edge
of the dome cover if the dome cover does not come off easily. Then, follow the steps below to in-
stall the camera to either a ceiling or a wall.
Hardware Installation
Opening Dome Cover
Release
button
If you plan to route cables from the side of camera,
remove the rubber slide cover from the dome cover.
Slide cover
Connect the supplied power & IO cables if your
switch does not support PoE. Connect the white
header connectors to J6 and J7 on the camera.
Connecting Ethernet Cable
& the Power and IO Cable
J6
J7
Power and IO
cables

Vivotek FE8174 Specifications

General

Type	IP security camera
PTZ control	Yes
Placement supported	Indoor
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Signal-to-Noise Ratio (SNR)	62 dB
Form factor	Dome
Mounting type	Ceiling
Product color	White
Maximum resolution	2560 x 1920 pixels
Supported video modes	-
Video formats supported	H.264, MPEG4
Power source type	PoE
Minimum illumination	0.03 lx
Sensor type	CMOS
Digital zoom	12 x
Built-in HDD	No
Flash memory	128 MB
Internal memory	256 MB
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Weight and Dimensions

Length	34 mm
Weight	358 g
Diameter	139 mm
