Vivotek IP8173H - Mounting the Camera to Stand

VIVOTEK
8 - User's Manual
1� Use the holes on the camera stand to mark drill holes on the wall� Drill holes on your
preferred location�
2� Hammer in the included plastic anchors�
3� Install the camera stand to wall or ceiling
by driving screws through it�
4� Attach the camera to stand by turning the
stand and the fastening rings�
Mounting the Camera to Stand

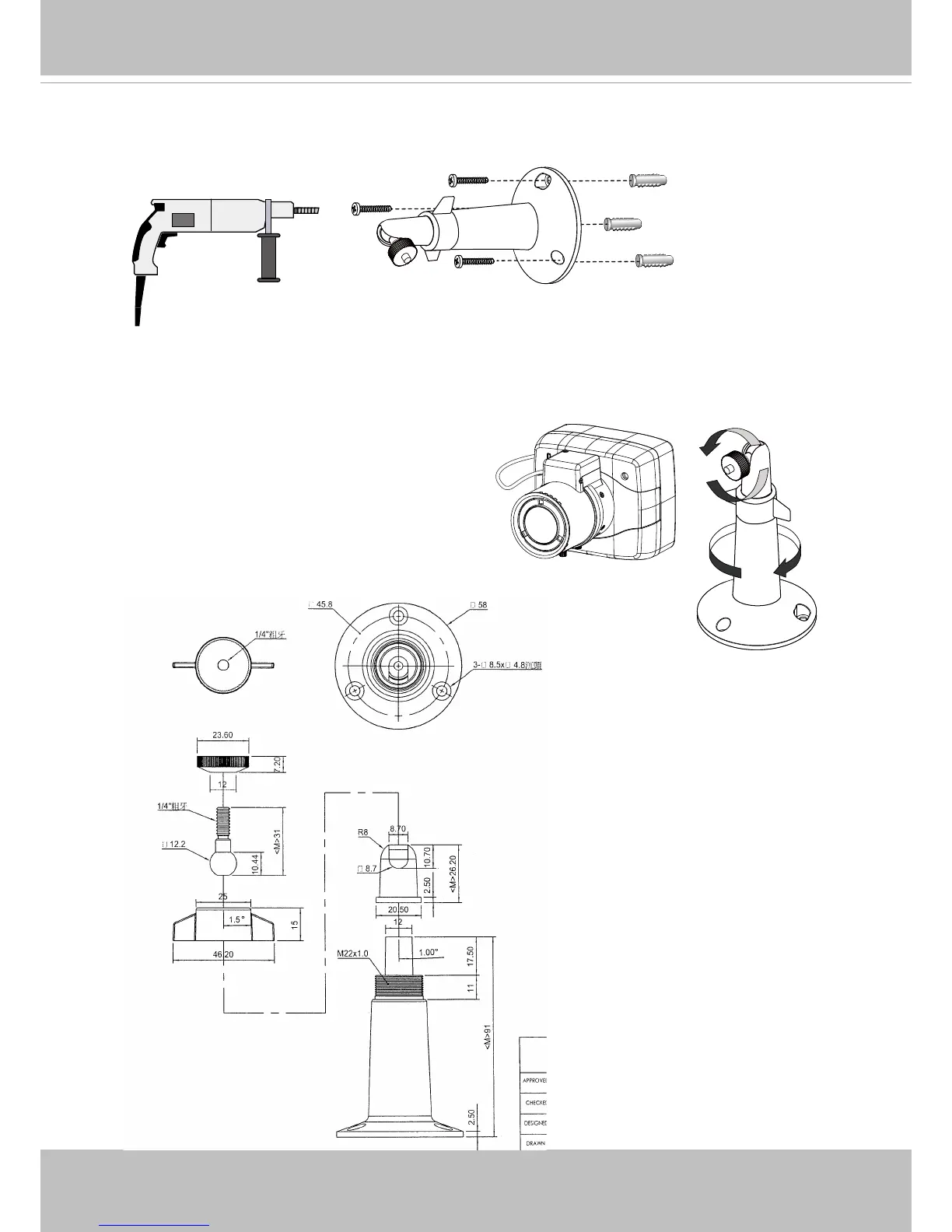

Shown below is the mechanical drawing
of the camera stand�
M4x25 tapping
screws�
28mm anchors�
