Vivotek ND9323P User Manual

VIVOTEK - Built with Reliability
User's Manual - 11

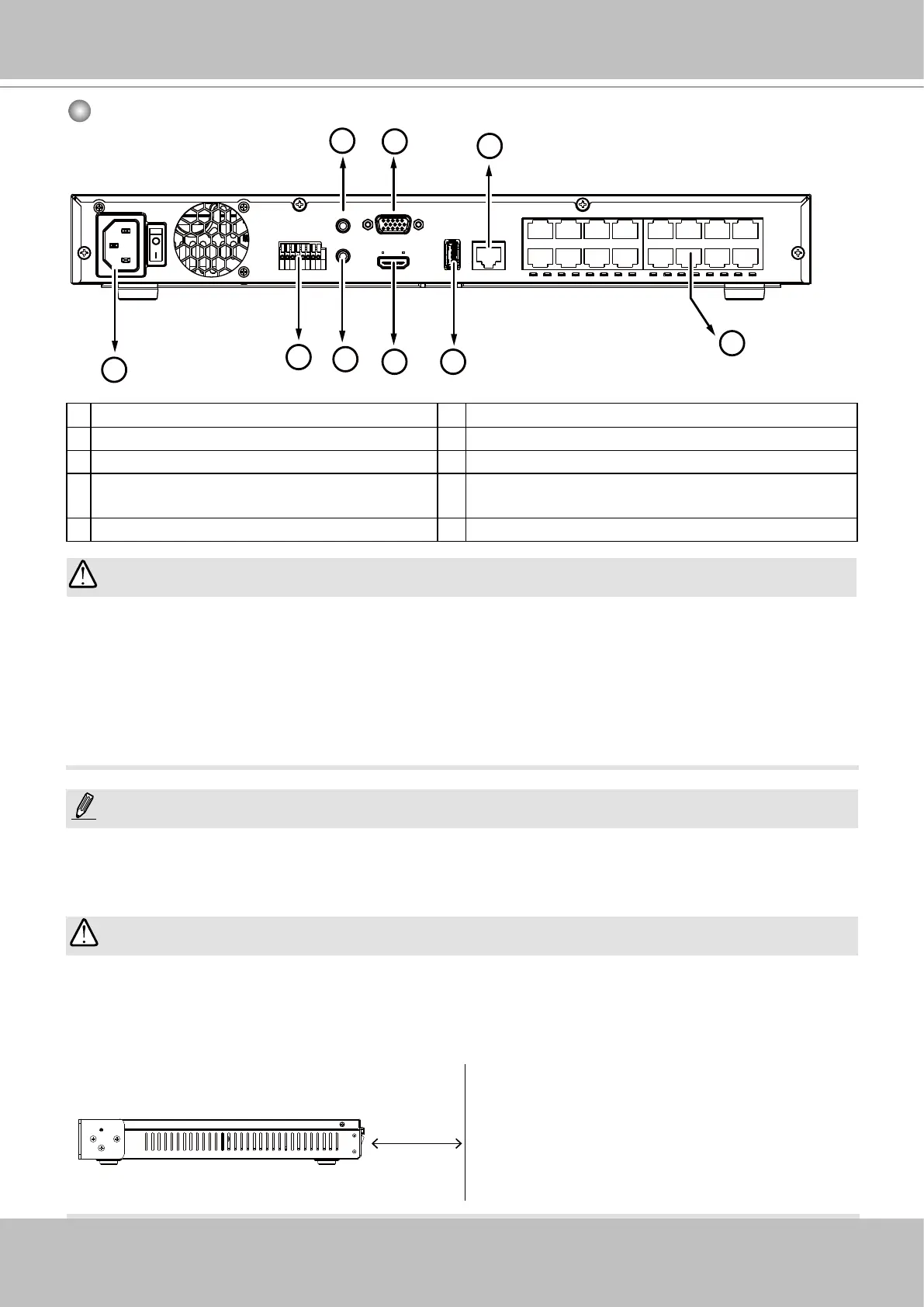

Rear View
9
1
3
4
5
8
2
6
7
1 PoE ports # 1 to #16 (ND9425P) 6 Audio OUT
2 RJ45 port - GbE uplink 7 VGA
3 HDMI 8 DI/DO terminal block
4 USB 2.0 port 9 Power socket (110/240V AC), w/ a power
button
5 Audio IN
IMPORTANT:
It is important to leave a clearance of 25cm behind the chassis. The clearance is required to
ensure an adequate airow through the chassis to ventilate heat.
25cm
To ensure normal operation, maintain ambient airow. Do not block the airow around chassis
such as placing the system in a closed cabinet.
NOTE:
You can also use the Reset button to restore system defaults. Press and hold down the button
for longer than 5 seconds. The system should start restoring defaults.
IMPORTANT:
The total power budget for the ND9323P’s 8 PoE ports is 120W.
The total power budget for the ND9425P’s 16 PoE ports is 200W. Every 8 ports (#1 ~ #8 or #9 ~
#16) provides 100W.
Please ensure the camera PD specication meet the NVR PSE power supply specication be-
fore installation.

Vivotek ND9323P Specifications

General

Recording modes	Continuous, Event, Manual, Schedule
Maximum resolution	3840 x 2160 pixels
Throughput data rate	88 Mbit/s
Video input channels	8 channels
Audio formats supported	G.711, G.726
Image formats supported	JPEG
Video formats supported	H.264, H.265, M-JPEG
Operating system installed	Embedded LINUX
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	175 W
Total Power over Ethernet (PoE) budget	120 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Certification	CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
LED indicators	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Wi-Fi	-
HDD size	3.5 \
RAID levels	0, 1
HDD capacity	- GB
Maximum storage capacity	- TB
Number of HDDs supported	2

Weight and Dimensions

Depth	320.3 mm
Width	366 mm
Height	46 mm
Weight	2500 g
