User's Manual - 83

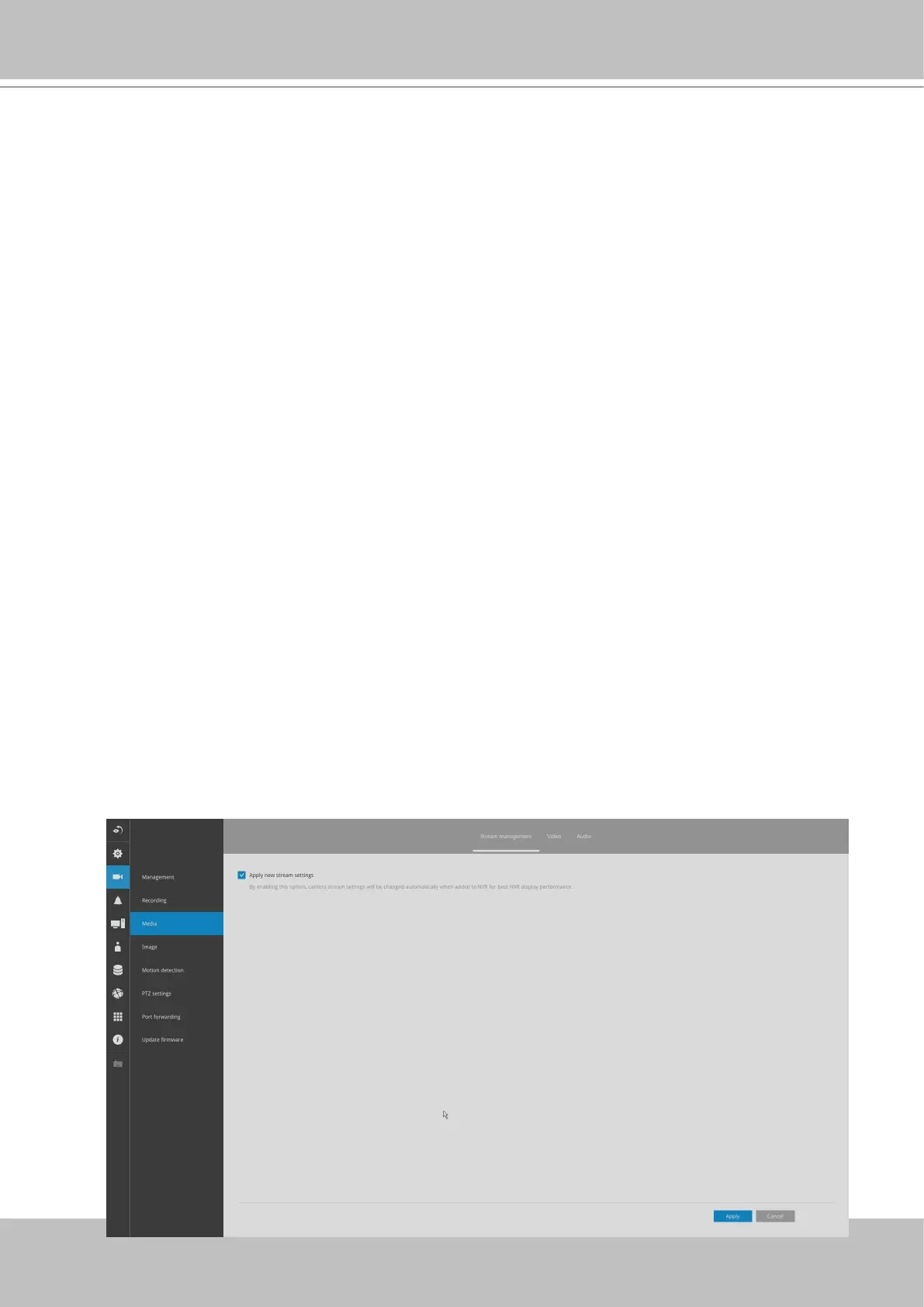

3-5-5. Settings–Camera–Media
The Main stream is set for higher video resolution & Network bandwidth use. The Sub
stream requires lower video resolution & Network bandwidth. Users can not associate
individual camera stream with either the Main or Sub stream.
• Main stream: the 1st stream of camera with H.265/1080p /4Mbps/max frame rate.
• Sub stream: the 2nd stream of camera with H.264/360P/1Mbps/max frame rate
• If the connected camera does not support the values described above, the NVR will take
the value close to the specications (resolution/ bitrate)
• The Main stream is applied with 2x2 or other layout of a larger view cell.
• The Sub stream is applied with 3x3 or other layouts of a smaller view cell.
On a local console, the P (Panoramic or M (Middle) view cell will display the Main stream.
For Playback:
Only the Main stream is selected for Playback display. The exported clip le should be the
same as selected as the stream type. The Main stream will be the default.
The NVR automatically changes camera stream settings when cameras are added.
If users want to manually congure camera stream setting, they can disable this function.
The default for the automatic conguration is,
• Main stream: H.265 1080p
• Sub stream: H.264 360p
On a web console, the Main stream is displayed on a 1x1 layout. The Sub stream is
displayed on other layouts.

Vivotek ND9323P Specifications

General

Recording modes	Continuous, Event, Manual, Schedule
Maximum resolution	3840 x 2160 pixels
Throughput data rate	88 Mbit/s
Video input channels	8 channels
Audio formats supported	G.711, G.726
Image formats supported	JPEG
Video formats supported	H.264, H.265, M-JPEG
Operating system installed	Embedded LINUX
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	175 W
Total Power over Ethernet (PoE) budget	120 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Certification	CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
LED indicators	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Wi-Fi	-
HDD size	3.5 \
RAID levels	0, 1
HDD capacity	- GB
Maximum storage capacity	- TB
Number of HDDs supported	2

Weight and Dimensions

Depth	320.3 mm
Width	366 mm
Height	46 mm
Weight	2500 g
