3-3-6. Storyboard
Camera selector
Time selector
Search button
Time span
Snapshots during the time
span
Fore- & backward
buttons
Click to enter a shorter time span
The Storyboard interface provides a glimpse of past recordings over a timeline. It looks and
operates like doing the lm editing after a lm was shot.
To enter the Storyboard window, click on the Storyboard shortcut on the upper-left of screen.

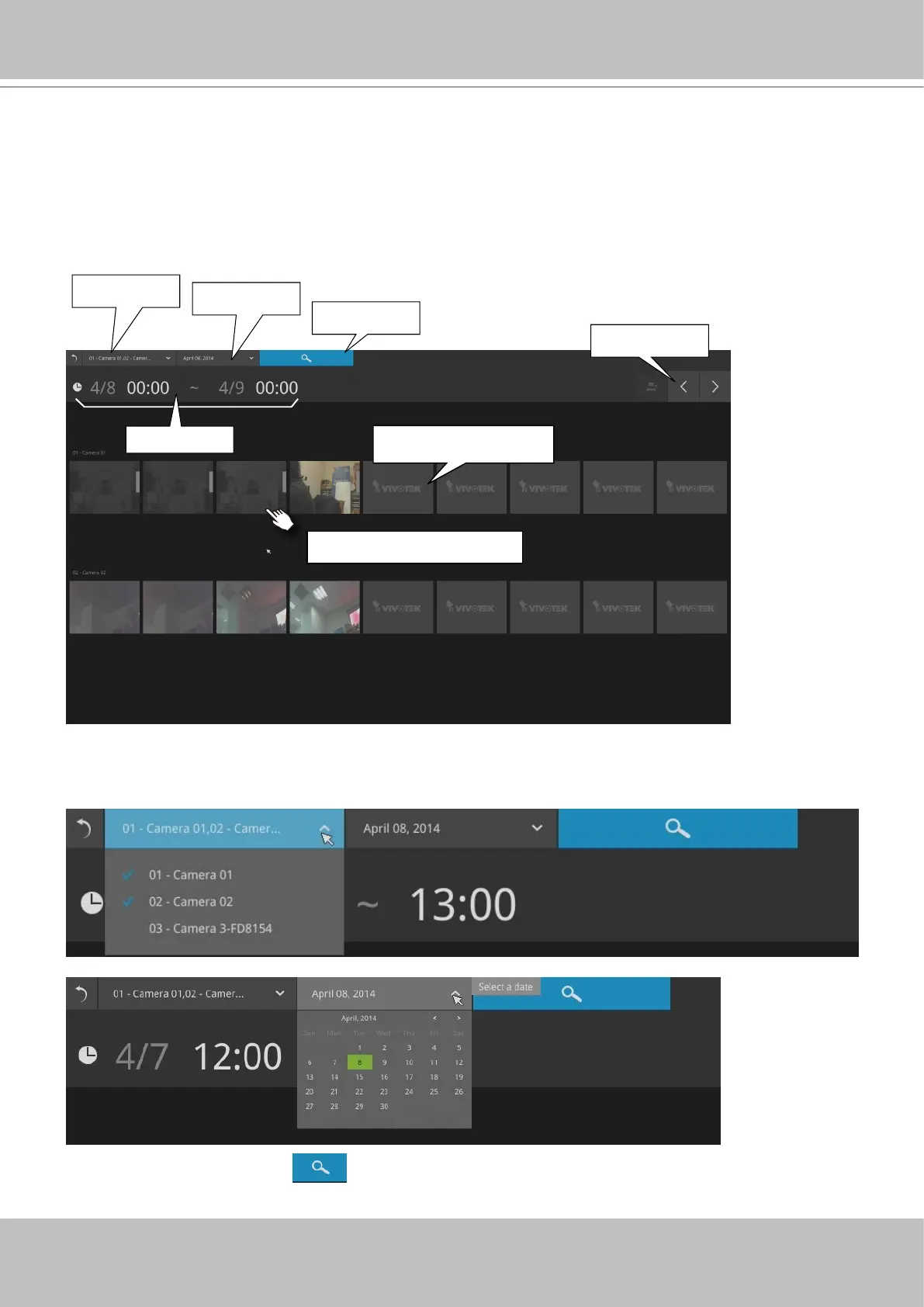

Below are the screen elements of the Storyboard window:
To search for a particular video footage, select the target cameras and the time of recording. On
the Storyboard, the timelines of up to two cameras can be displayed.
Click on the Search button .

Vivotek ND9323P Specifications

General

Recording modes	Continuous, Event, Manual, Schedule
Maximum resolution	3840 x 2160 pixels
Throughput data rate	88 Mbit/s
Video input channels	8 channels
Audio formats supported	G.711, G.726
Image formats supported	JPEG
Video formats supported	H.264, H.265, M-JPEG
Operating system installed	Embedded LINUX
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	175 W
Total Power over Ethernet (PoE) budget	120 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Certification	CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
LED indicators	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Wi-Fi	-
HDD size	3.5 \
RAID levels	0, 1
HDD capacity	- GB
Maximum storage capacity	- TB
Number of HDDs supported	2

Weight and Dimensions

Depth	320.3 mm
Width	366 mm
Height	46 mm
Weight	2500 g
