4-3. Graphical Layout and Screen Elements - Playback
Camera list
Layout
contents
Playback panel
Calendar
1
3
4
2

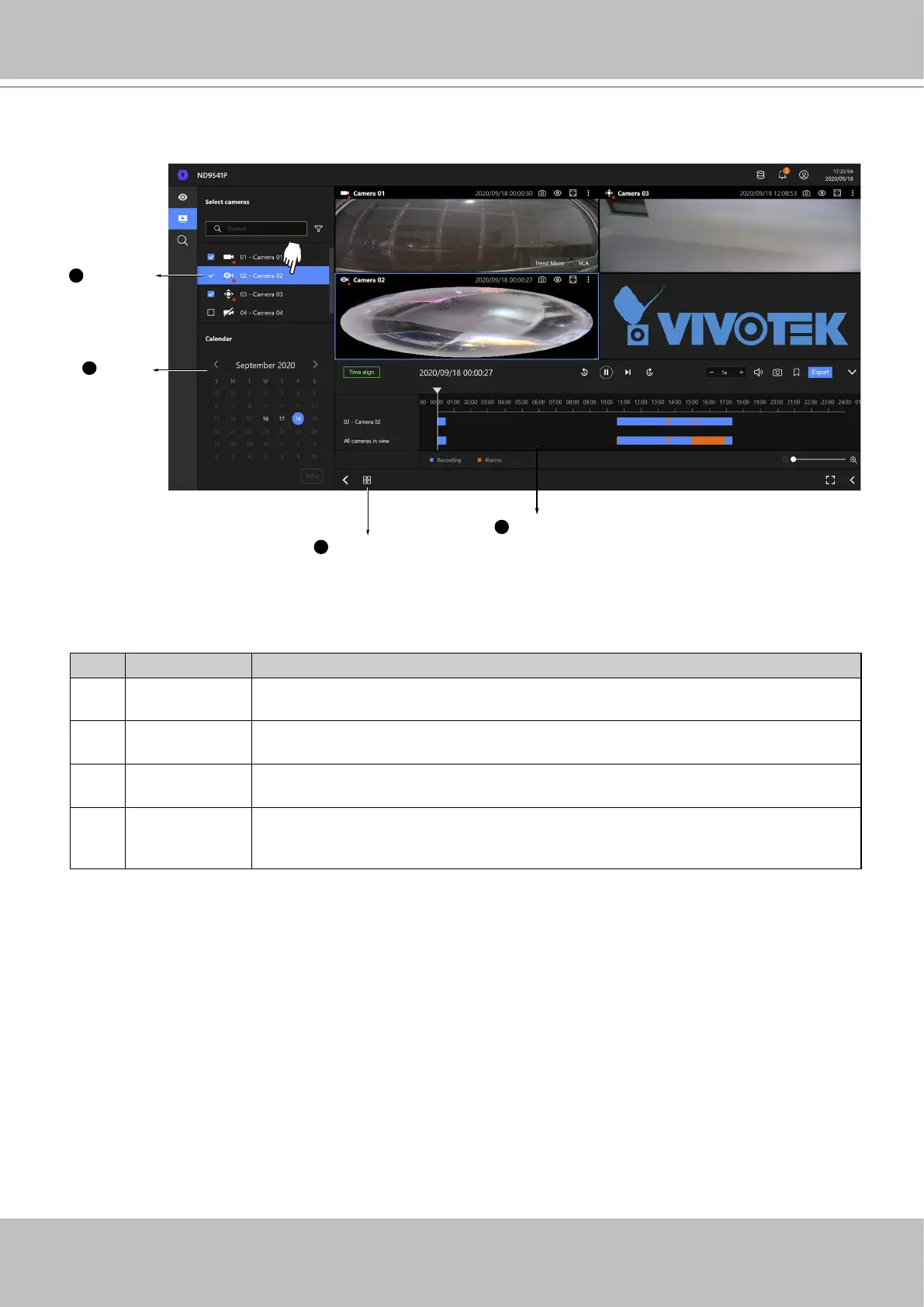

The screen elements of the Playback window are described as follows:
Item Name Description
1 Camera List Provides a glimpse of all cameras that have recorded data. Basic information is
also provided along with a screenshot.
2 Calendar Shows when the recording took place, and thus enables users to quickly locate
a specic part of recording in history.
3 Layout contents Provides functions to extend, rotate, redo the layout, and the synchronous
playback.
4 Playback panel Displays the playback functions. Snapshot, bookmark, and export functions are
also available on individual view cells.
To begin playback and search for past recordings,
1. Single click to select a camera. You can select multiple cameras.
2. The Calendar panel will display the days video recording actually took place. And those days
will be highlighted by a lighter text. Click to select the days with recordings.

Vivotek ND9323P Specifications

General

Recording modes	Continuous, Event, Manual, Schedule
Maximum resolution	3840 x 2160 pixels
Throughput data rate	88 Mbit/s
Video input channels	8 channels
Audio formats supported	G.711, G.726
Image formats supported	JPEG
Video formats supported	H.264, H.265, M-JPEG
Operating system installed	Embedded LINUX
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	175 W
Total Power over Ethernet (PoE) budget	120 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Certification	CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
LED indicators	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Wi-Fi	-
HDD size	3.5 \
RAID levels	0, 1
HDD capacity	- GB
Maximum storage capacity	- TB
Number of HDDs supported	2

Weight and Dimensions

Depth	320.3 mm
Width	366 mm
Height	46 mm
Weight	2500 g
