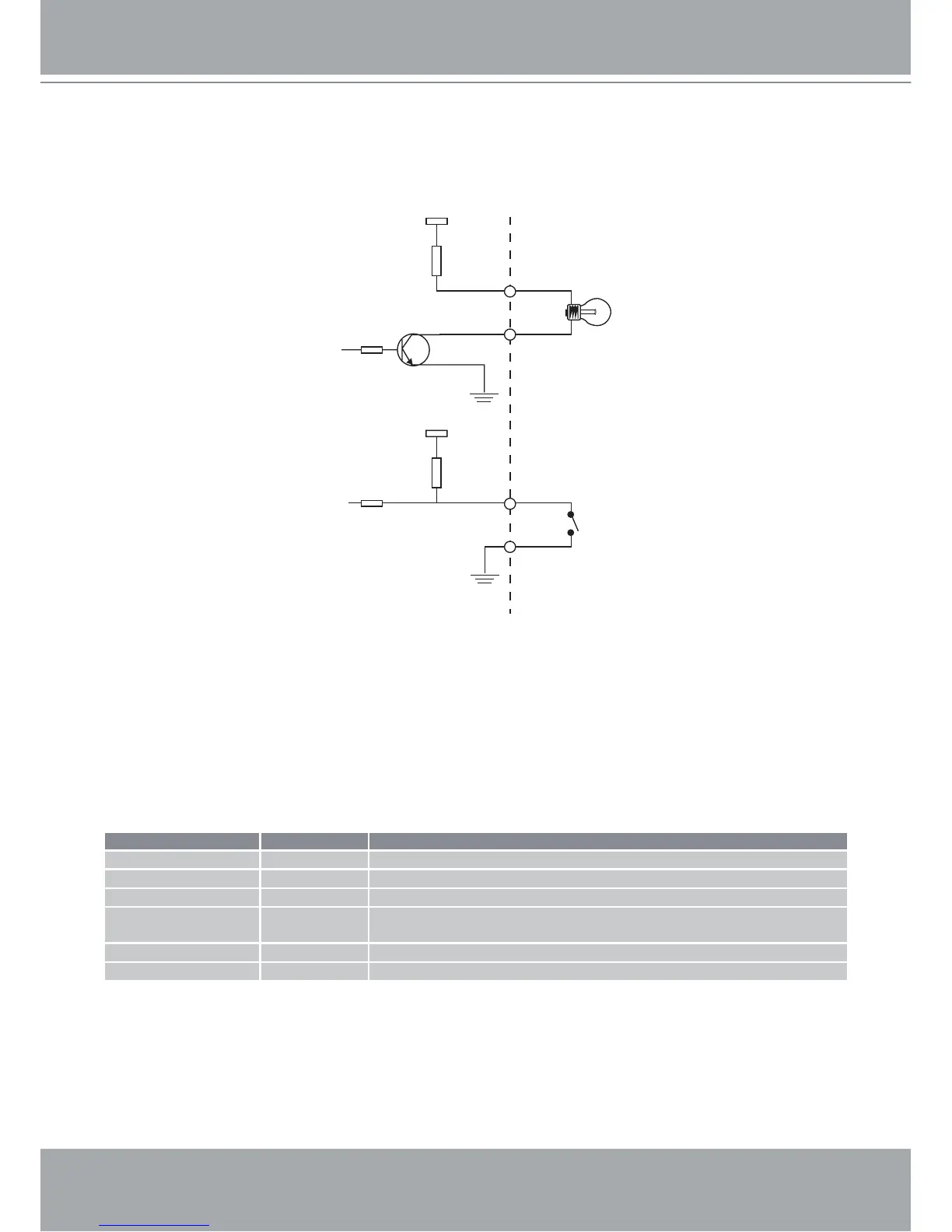

DI/DO Diagram
Refer to the following illustration for connection method.
5V
+5V
Digital output
PIN 1
Power+5V
PIN 2
Digital input
PIN 3
Ground
PIN 4
Status LED
The LED indicates the status of the Network Camera.
noitpircseDnottub ycavirPDEL sutatS
Solid red Solid blue Power is being supplied to the camera.
Blinking red Blinking blue The camera is booting up.
Solid red OFF The camera is trying to obtain an IP address.
Blinking green OFF
An IP address has been successfully assigned to the camera and the
camera is working.
Blinking red OFF During firmware upgrading.
Blinking green and red OFF Restore the camera.
